IS7200-11 | Cognex 7200 Model Insight Camera with PatMax

Description

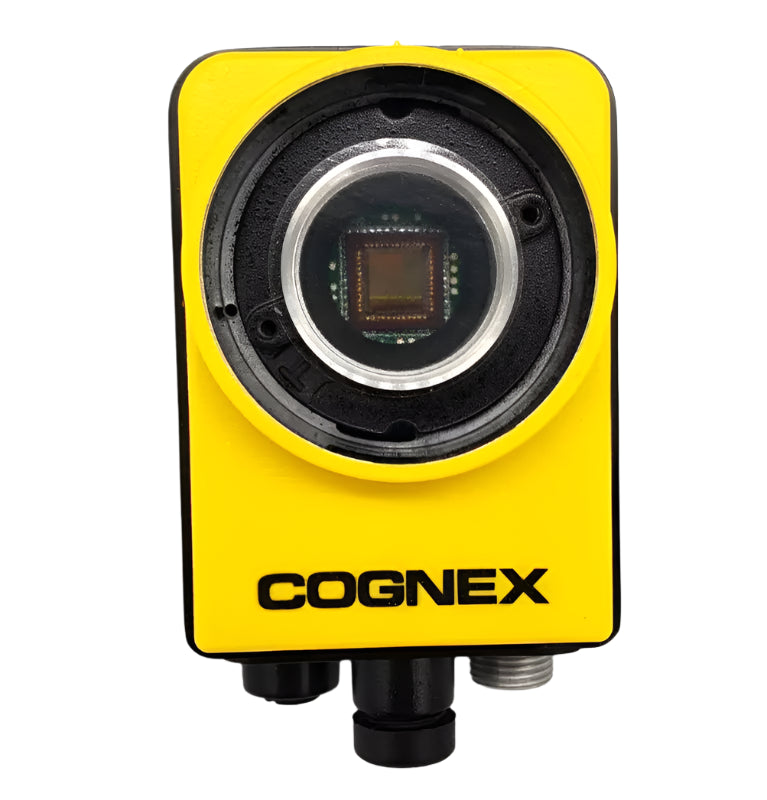

The IS7200-11 is a Cognex camera within the In Sight Vision System, featuring a 512 MB non-volatile flash memory and SVGA resolution of 500k pixels. It belongs to the Cognex In-Sight 7000 series, requiring a 24 VDC supply voltage. Equipped with 256 MB SDRAM image processing memory, it utilizes a 1/1.8-inch CMOS sensor with a 5.3 mm diameter and 5.3 x 5.3 µm sq. pixels. The camera's resolution is 800 x 600 pixels, with an electronic shutter speed range of 16µs to 950ms, employing rapid reset, progressive scan, and full-frame integration acquisition. It offers 256 grey levels at 8 bits/pixel and operates at 102 full frames per second, supporting M12 or C-mount lens types.

Technical Specifications

Information About IS7200-11

The IS7200-11, a member of the Cognex In-Sight 7000 series, serves as a digital industrial vision camera within the InSight Vision System. It features 512 MB non-volatile flash memory and SVGA resolution of 500k pixels, with storage expandable via a remote network device. Operating on a 24 VDC supply voltage, it incorporates 256 MB SDRAM image processing memory and utilizes a 1/1.8-inch CMOS sensor with a 5.3 mm diameter, featuring 5.3 x 5.3 µm sq. pixels. The camera resolution stands at 800 x 600 pixels, with an electronic shutter speed ranging from 16µs to 950ms.

Its acquisition employs rapid reset, progressive scan, and full-frame integration, supporting 256 grey levels at 8 bits/pixel. Operating at 102 full frames per second, the IS7200-11 accommodates M12 or C-mount lens types. The user installation manual provides FOV and working distance graphs for autofocus lenses.

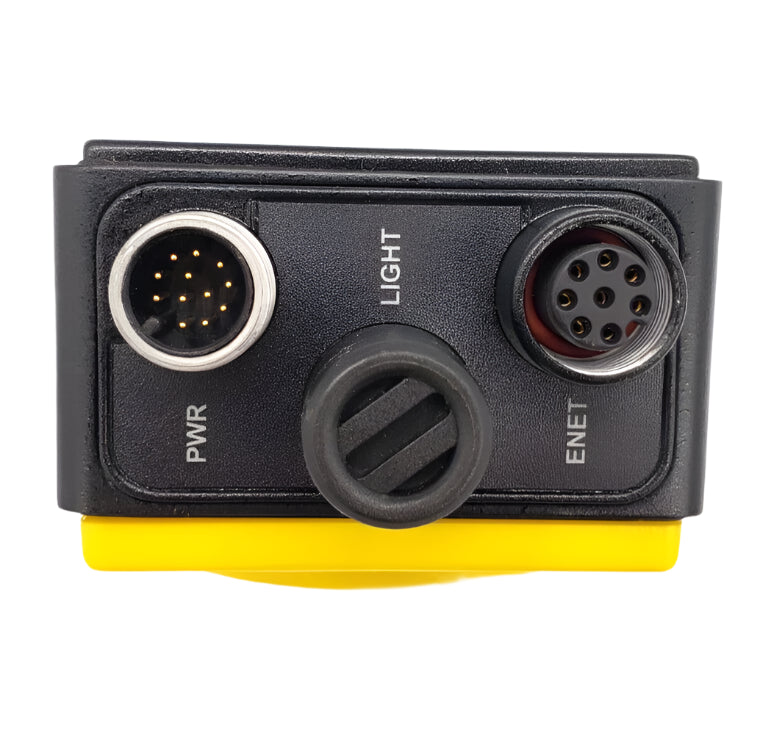

Differing slightly from the In-Sight 5000 and In-Sight Micro series, the gain setting for this series is based on a different imager, maintaining the same gain range but with different initial settings. Notably, this series lacks a serial cable but includes power and I/O breakout cables, similar to the In-Sight 5000 and In-Sight Micro series. Due to the absence of a built-in pigtail on all external lights, an external light cable (part number CCB-M12LTF-xx) is required.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
