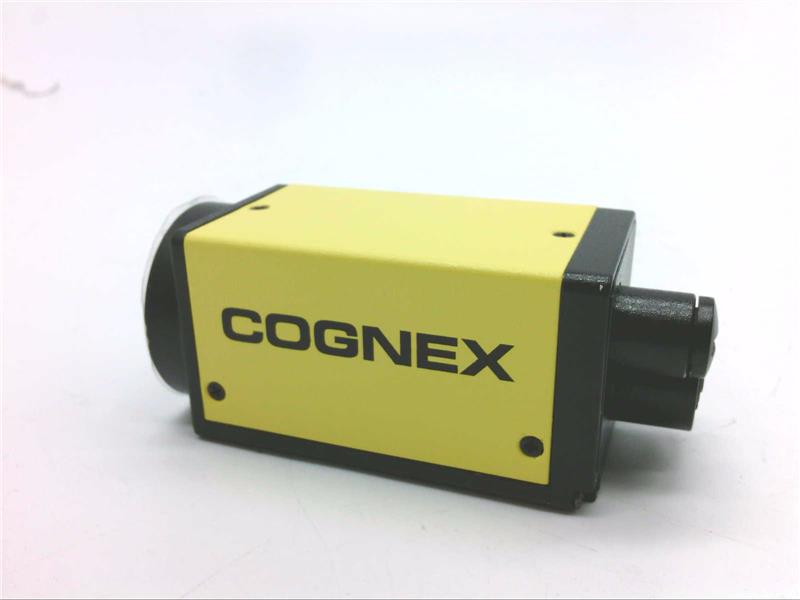

ISM1020-01 | Cognex Smart Digital Vision Camera In-Sight Micro 1000

Description

The ISM1020-01 by Cognex is an In-Sight Micro 1000 smart digital vision camera designed for compact and high-performance imaging. It features advanced vision tools for precise inspection, measurement, and quality control. Ideal for integration into tight spaces, it delivers reliable and accurate results for automation tasks, enhancing overall system efficiency.

Technical Specifications

Information About ISM1020-01

The Cognex ISM1020-01 Smart Digital Vision Camera, part of the In-Sight Micro 1000 series, is engineered to deliver advanced vision capabilities in a compact form factor. Designed for a broad range of industrial automation tasks, this camera provides high-performance imaging and robust processing features essential for precise machine vision applications.

Measuring just 1.18 inches in width, 2.36 inches in depth, and 1.50 inches in height with the mounting block, the ISM1020-01 is optimized for installations where space is limited. Despite its small size, it integrates powerful vision processing capabilities that make it suitable for various inspection, measurement, and guidance applications in manufacturing environments.

The camera utilizes a 1/3-inch CCD sensor, known for its high-resolution imaging and excellent performance in capturing detailed visual data. This sensor type ensures accurate image acquisition, contributing to the camera's ability to detect fine details and features within the observed field.

The ISM1020-01 is equipped with both SDRAM and non-volatile flash memory, providing efficient data storage and quick access to image data. This dual-memory setup supports the rapid processing of images and ensures that critical data is preserved even in the event of a power interruption.

For connectivity, the camera supports breakout, Ethernet, and I/O module cables, facilitating versatile integration with various system architectures and simplifying connectivity to other automation equipment. This range of connectivity options allows the camera to interface seamlessly with other components of a vision system.

Operating with a minimum firmware requirement of In-Sight Version 4.4.3, the ISM1020-01 ensures compatibility with the latest vision processing algorithms and features. This firmware baseline provides access to advanced functionality and supports ongoing updates and improvements in vision processing capabilities.

The camera is designed to operate in environments with high humidity levels, up to 90% non-condensing. This makes it suitable for challenging industrial conditions where moisture might otherwise affect performance.

In summary, the Cognex ISM1020-01 Smart Digital Vision Camera combines compact dimensions with powerful vision processing capabilities. Its 1/3-inch CCD sensor, robust memory configurations, and diverse connectivity options make it an ideal choice for precise and reliable machine vision applications within the In-Sight Micro series. Its ability to handle high humidity environments further enhances its suitability for demanding industrial applications.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
