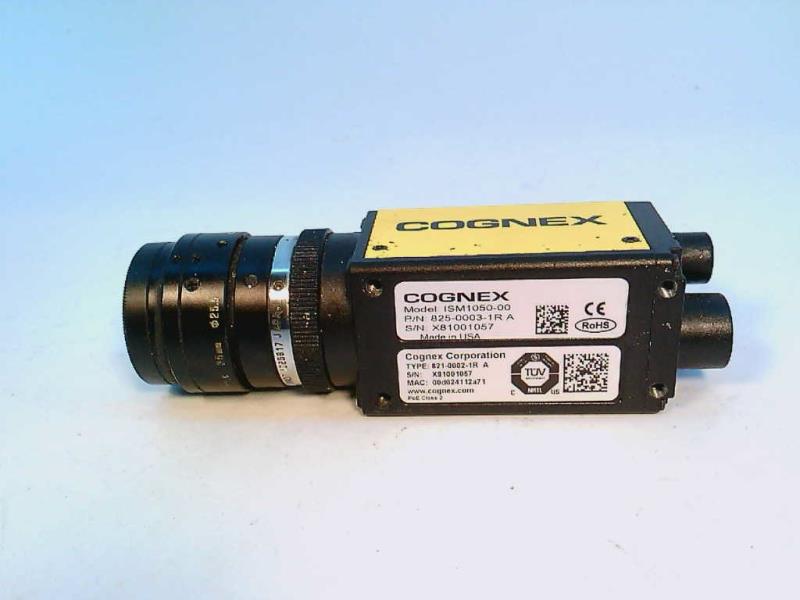

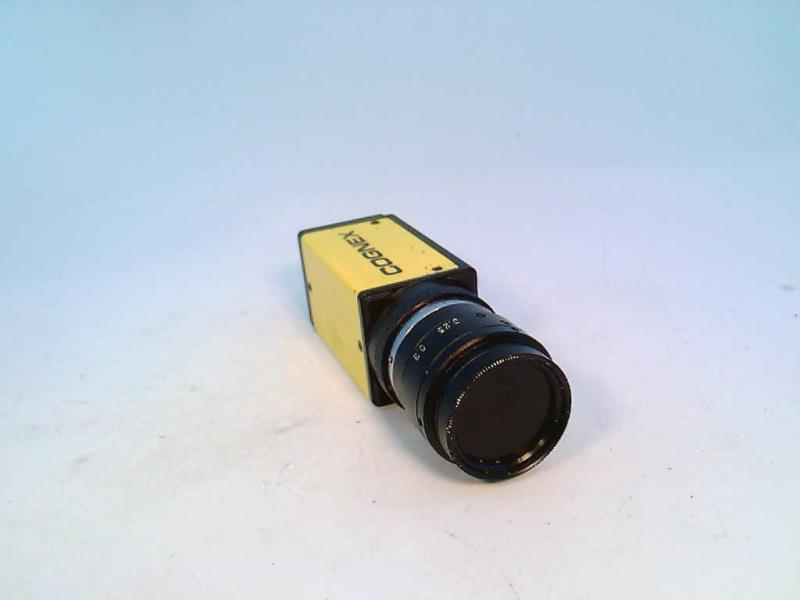

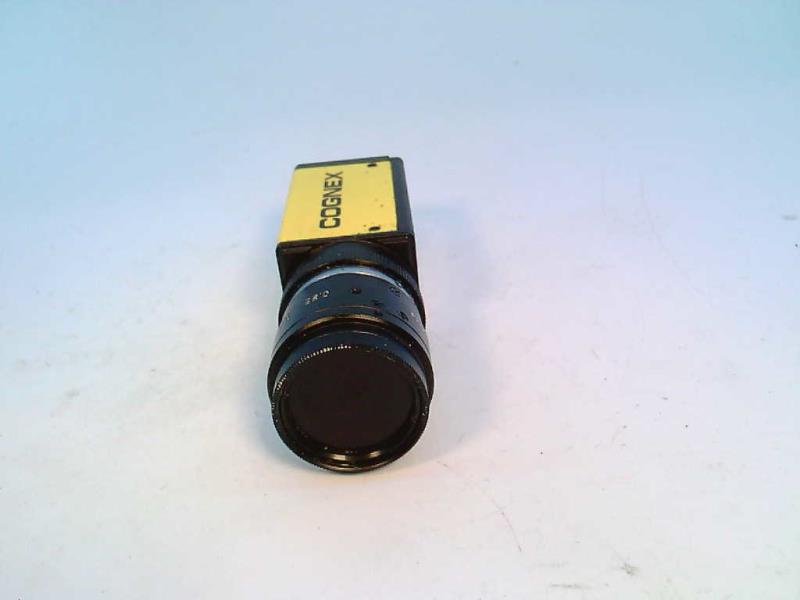

ISM1050-00 | Cognex Micro Vision System
- Regular price
- $1,414.00
- Sale price
- $1,414.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: ISM1050-00
Description
The Cognex ISM1050-00 Micro Vision System is a compact, high-performance solution designed for precise automated inspections. It features advanced image processing capabilities and robust performance, making it ideal for space-constrained environments. This system is well-suited for applications requiring reliable, high-speed vision processing.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Cognex |
| Category | Camera & Vision |
| Part Number | ISM1050-00 |
| Subcategory | Vision System Assembly |
| Bit Depth | 256 Grey Levels (8 bits/pixel) |
| Compliance Types | FCC, KCC, RoHS, CE, and TÜV SÜD NRTL |
| Finish | Painted |
| Frames Per Second | 60 |
| Lens Type | C-Mount and CS-Mount, with 5mm extension included |
| Network Communication | 1 Ethernet Port, 10/100 Base T with Auto MDI/MDIX |
| Sensor Properties | 5.92 mm diagonal, 7.4 x 7.4 µm sq. pixels |
| Status LEDs Quantity | Three |
| User Interface(s) | Spreadsheet and EasyBuilder |
Information About ISM1050-00
The Cognex ISM1050-00 Micro Vision System is a highly versatile and advanced vision system designed to meet the demands of modern industrial automation and quality control. As part of the Cognex family, known for its precision and innovation in machine vision, the ISM1050-00 stands out for its ability to deliver accurate, high-speed image processing in a compact form factor. This vision system is ideal for applications that require reliable inspection, measurement, and identification capabilities in challenging environments.
At the heart of the ISM1050-00 is a sophisticated sensor with a diagonal measurement of 5.92 mm, utilizing 7.4 x 7.4 µm square pixels. This sensor configuration allows the system to capture detailed images with high clarity, making it suitable for a wide range of inspection tasks, from detecting minute defects to verifying product alignment. The system supports a bit depth of 256 grey levels, equivalent to 8 bits per pixel, providing the necessary contrast and depth required for precise image analysis.
The ISM1050-00 is equipped with a flexible lens mounting system, supporting both C-Mount and CS-Mount lenses. This flexibility allows users to tailor the system’s optical setup to their specific application needs, whether it’s for close-up inspection or broader field-of-view tasks. Additionally, the system includes a 5mm extension, further enhancing its adaptability to various working distances and focal lengths.
One of the key features of the ISM1050-00 is its ability to process images at a rate of 60 frames per second. This high frame rate ensures that the system can handle fast-moving production lines without compromising on the accuracy or quality of image capture. Whether it's used in high-speed sorting, assembly verification, or defect detection, the ISM1050-00 is capable of delivering consistent and reliable performance in real-time operations.
The network communication capabilities of the ISM1050-00 are equally robust, featuring a 10/100 Base T Ethernet port with Auto MDI/MDIX. This ensures seamless integration into existing industrial networks, allowing for easy data exchange and remote monitoring. The Ethernet connectivity also supports fast data transmission, enabling real-time feedback and adjustments, which is critical in dynamic production environments where timing and precision are paramount.
For user interaction, the ISM1050-00 offers a dual-interface system comprising Spreadsheet and EasyBuilder. The Spreadsheet interface provides a powerful, flexible platform for advanced users who need to create complex vision applications with custom algorithms and logic. Meanwhile, EasyBuilder offers a more intuitive, step-by-step interface designed to simplify the setup and deployment of vision tasks. This dual-interface approach caters to both novice users and experienced engineers, ensuring that the system can be easily configured and operated to meet specific project requirements.
In terms of compliance, the ISM1050-00 adheres to several international standards, including FCC, KCC, RoHS, CE, and TÜV SÜD NRTL. This wide range of certifications ensures that the system meets stringent safety, environmental, and performance criteria, making it suitable for deployment in diverse industries and regions. The system’s compliance with RoHS also underscores Cognex’s commitment to reducing the environmental impact of its products by restricting the use of hazardous substances in its manufacturing process.
The physical design of the ISM1050-00 is both durable and functional, featuring a painted finish that not only provides a clean, professional appearance but also offers protection against environmental factors such as dust and moisture. The system is designed to withstand the rigors of industrial environments, ensuring long-term reliability and minimal maintenance requirements.
The ISM1050-00 is also equipped with three status LEDs that provide at-a-glance information on the system’s operational status, simplifying troubleshooting and system monitoring. These LEDs are strategically placed for visibility, allowing operators to quickly assess whether the system is functioning correctly or if any issues need attention.
In summary, the Cognex ISM1050-00 Micro Vision System is a compact, high-performance vision solution designed for industrial applications that demand speed, precision, and reliability. With its advanced sensor technology, flexible lens options, high frame rate, and robust network communication, this vision system is well-suited for a wide range of inspection and automation tasks. Its dual-interface user system, combined with compliance with key international standards, makes it an adaptable and dependable choice for any modern production environment.
Manufacturer information
Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
