ISM1110-00 | Cognex Micro Vision System

Description

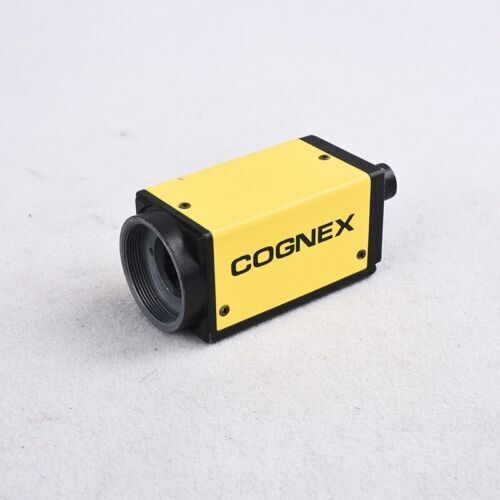

The ISM1110-00 from Cognex is a compact micro vision system designed for high-performance machine vision applications. It features advanced image processing capabilities, compact form factor, and robust industrial design, ideal for automation and quality inspection tasks.

Technical Specifications

Information About ISM1110-00

The Cognex ISM1110-00 is a high-performance camera cable designed specifically for advanced vision systems, offering robust connectivity and reliable data transmission in demanding industrial environments. This cable is engineered to support critical imaging applications, providing the essential link between the camera and its associated vision system components. With its advanced acquisition features and durable design, the ISM1110-00 is a key component for ensuring precise and accurate image capture in automated inspection, quality control, and process monitoring systems.

The ISM1110-00 cable is equipped with several advanced acquisition features, including full-frame integration, rapid reset, and progressive scan capabilities. These features enable the connected camera to capture high-quality images with excellent clarity and detail, even in fast-paced industrial settings. Full-frame integration ensures that the entire image sensor is utilized during each exposure, maximizing the amount of data captured in a single frame. Rapid reset allows the camera to quickly prepare for the next capture, reducing downtime between image acquisitions and increasing overall system efficiency. Progressive scan technology further enhances image quality by eliminating the interlacing artifacts that can occur in traditional scanning methods, providing crisp and accurate images that are essential for detailed analysis and decision-making.

The ISM1110-00 also includes 128 MB of non-volatile flash memory for job and program storage, allowing the vision system to retain critical data and configuration settings even in the event of a power loss. This memory capacity supports the storage of multiple jobs or programs, enabling the system to quickly switch between different tasks without the need for reconfiguration. The non-volatile nature of the flash memory ensures that all stored data remains intact, providing reliability and consistency in automated processes.

For ease of monitoring and troubleshooting, the ISM1110-00 is equipped with LED indicators labeled ENET, LED1, and LED2. These indicators provide real-time feedback on the status of the network connection and other key operational parameters, allowing technicians to quickly identify and address any issues that may arise during operation. The ENET indicator, in particular, monitors the Ethernet connection, ensuring that the cable maintains a stable and reliable communication link with the vision system network.

The cable’s physical design includes four M3 threaded mounting holes, allowing for secure and flexible installation in a variety of industrial settings. These mounting holes provide stability and ensure that the cable remains securely attached to the camera and other system components, even in environments subject to vibration or movement. This mounting flexibility is essential for maintaining the integrity of the vision system and ensuring consistent image capture in challenging conditions.

Network communication is facilitated through a single Ethernet port, which supports high-speed data transmission between the camera and the vision system. The use of Ethernet for communication ensures compatibility with standard industrial networking protocols and infrastructure, simplifying integration and reducing the need for specialized equipment. The Ethernet port is also designed to support Power over Ethernet (PoE), allowing the cable to receive both power and data through a single connection, further streamlining installation and reducing cable clutter.

The ISM1110-00 is classified as a Class 2 PoE device, drawing power directly from the Ethernet connection with a power consumption of 6.49 watts. This efficient power usage ensures that the camera and its associated systems can operate reliably without imposing excessive demands on the power supply. The cable operates at a voltage of 48 VDC, a standard for PoE devices, providing a stable and consistent power source that supports the high-performance operation of the connected vision system.

In summary, the Cognex ISM1110-00 camera cable is a crucial component for industrial vision systems, offering advanced acquisition features, reliable network communication, and flexible mounting options. With its full-frame integration, rapid reset, and progressive scan capabilities, this cable ensures high-quality image capture and efficient operation in demanding industrial environments. Its robust design, combined with PoE compatibility and efficient power consumption, makes the ISM1110-00 an essential tool for maintaining the accuracy and reliability of automated inspection and quality control systems.
