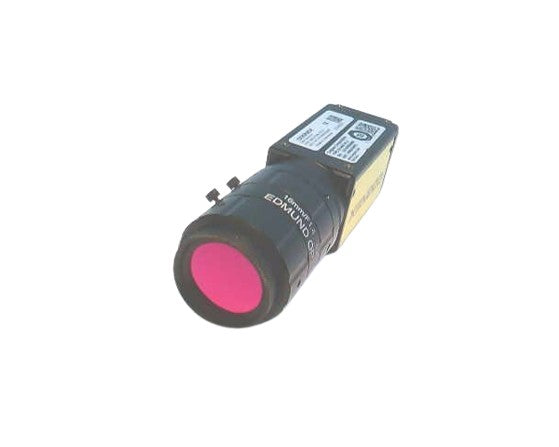

ISM1400-01 | Cognex Ethernet Camera In-Sight Micro 1000 Series

Description

The ISM1400-01 is an Ethernet camera from the Cognex In-Sight Micro 1000 Series. It is designed for use in industrial machine vision applications, providing image capture and processing capabilities over Ethernet networks.

Technical Specifications

Information About ISM1400-01

The ISM1400-01 is an Ethernet camera from the Cognex In-Sight Micro 1000 Series, designed for advanced industrial machine vision applications. This camera is categorized under Camera & Vision, specifically within the Vision System Assembly subcategory, indicating its role in providing precise image capture and processing capabilities for a variety of automation and inspection tasks. With its compact and lightweight design, weighing only 0.45 lbs, the ISM1400-01 is suitable for integration into tight spaces where larger vision systems would be impractical.

Equipped with a 1/3-inch CCD sensor, the ISM1400-01 delivers a standard resolution of 640 x 480 pixels. This resolution provides sufficient detail for a wide range of vision applications, including quality inspection, part identification, and robotic guidance. The sensor's CCD technology ensures high image quality, offering reliable performance in capturing clear and accurate images under various lighting conditions. This makes the ISM1400-01 an ideal choice for use in manufacturing environments where consistent and precise image capture is crucial.

The ISM1400-01 camera supports power over Ethernet (PoE) requirements per Class 2 standards, simplifying installation by allowing both power and data transmission over a single Ethernet cable. This reduces wiring complexity and installation time, making the system easier to deploy and maintain. PoE capability also enhances the flexibility of camera placement, enabling the ISM1400-01 to be positioned in locations where access to conventional power sources may be limited.

The camera features two opto-isolated, high-speed discrete outputs that can operate as either NPN or PNP, providing versatile connectivity options for integration with other automation equipment. These outputs enable the camera to interface with external devices, such as PLCs and relays, facilitating synchronized operations in automated inspection and sorting systems. The opto-isolated design of the outputs ensures electrical isolation, protecting both the camera and connected devices from potential electrical interference.

For program and job memory, the ISM1400-01 is equipped with 256MB of SDRAM. This memory capacity allows for the storage of multiple inspection programs and job configurations, enabling quick changes between tasks without the need for external storage devices. The onboard memory supports efficient processing and management of complex image analysis tasks, ensuring that the camera can handle demanding vision applications with ease.

The ISM1400-01 is designed with an IP51-rated enclosure, providing protection against dust and limited exposure to moisture. This level of protection makes the camera suitable for use in industrial environments where exposure to non-corrosive elements is common. The IP51 rating ensures that the internal components of the camera are safeguarded against environmental factors, maintaining the reliability and longevity of the device.

With a storage temperature range of -30 to 80°C (-22 to 176°F), the ISM1400-01 is built to withstand a wide range of environmental conditions, ensuring reliable operation in both cold and hot settings. This wide temperature tolerance makes the camera suitable for use in various industrial applications, from food processing to automotive manufacturing, where temperature variations are a factor.

In summary, the ISM1400-01 is a versatile and high-performance Ethernet camera designed for industrial machine vision applications. Its compact size, high-quality 1/3-inch CCD sensor, and standard resolution of 640 x 480 pixels make it ideal for detailed inspection tasks. The camera's PoE capability simplifies installation, while its opto-isolated high-speed discrete outputs provide flexible connectivity. With 256MB of SDRAM for program storage and an IP51-rated enclosure for environmental protection, the ISM1400-01 is a reliable and efficient solution for a wide range of industrial automation and vision system applications.

Manufacturer information

Cognex Corporation is a global leader in machine vision and industrial barcode reading. Founded in 1981, Cognex specializes in providing vision systems, software, and sensors for automation, quality inspection, and logistics. Their solutions are widely used in manufacturing, logistics, and various industries to enhance efficiency and quality control.
