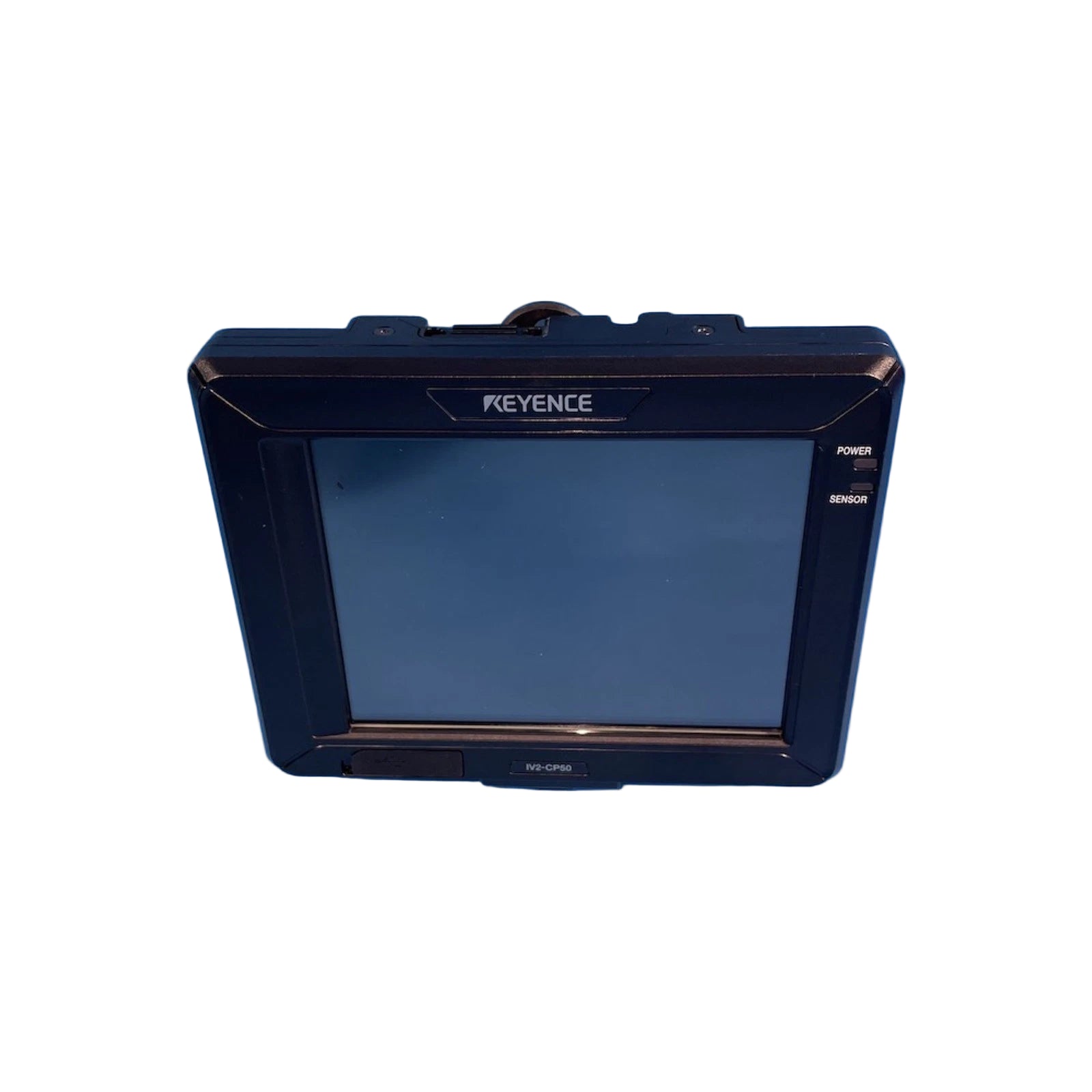

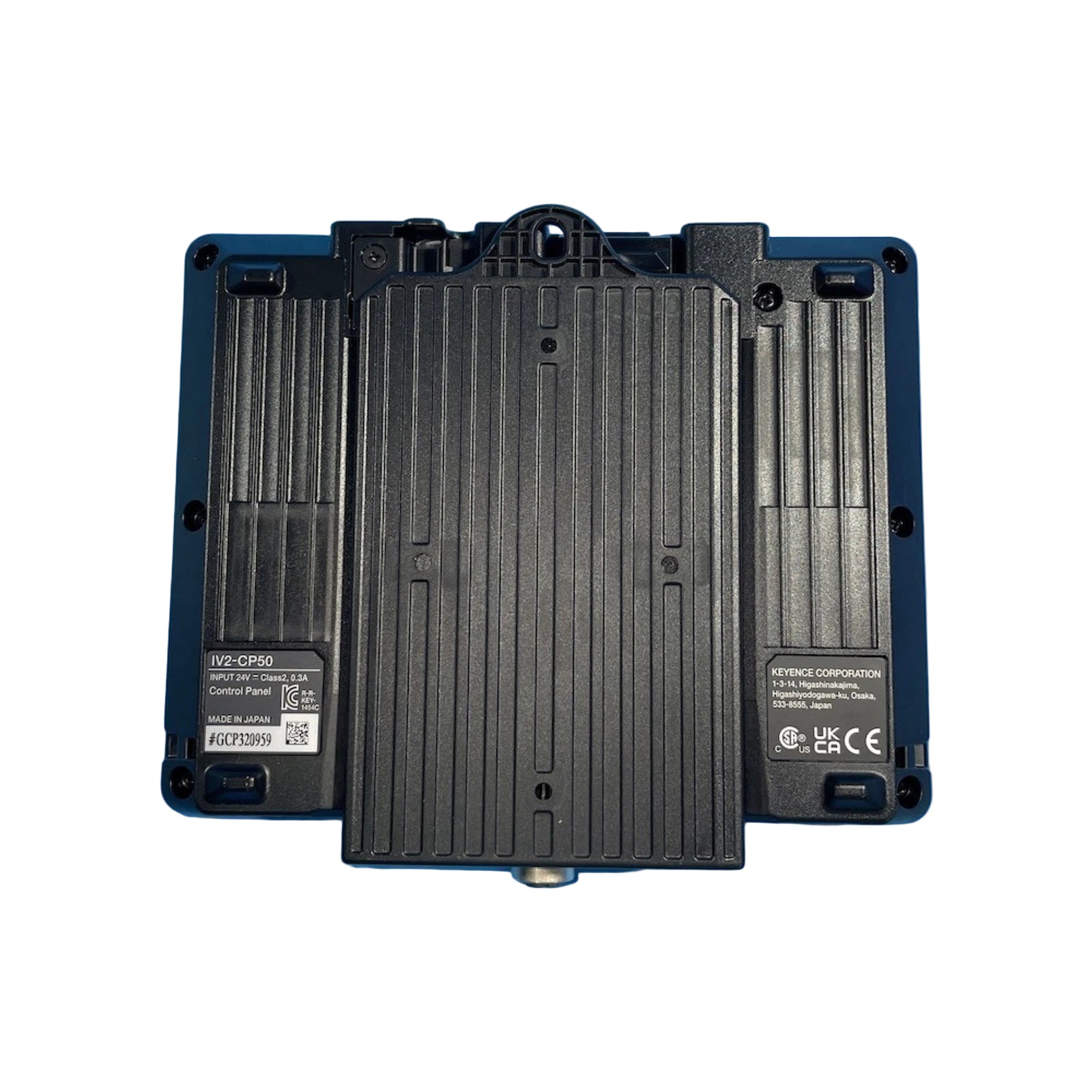

IV2-CP50 | Keyence 5.7" Vision Sensor Control Panel, VGA Display, Touchscreen, USB, Ethernet
- Regular price
- $574.00
- Sale price
- $574.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IV2-CP50
Description
The Keyence IV2-CP50 is a control panel designed for use with Keyence IV2 Series vision sensors. It features a 5.7-inch TFT color LCD display with a VGA resolution and an analog resistive touch panel for intuitive operation. Powered by a 24 VDC supply, the unit provides easy access to configuration, monitoring, and image data management in industrial inspection systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | HMI / MMI / OIT |
| Part Number | IV2-CP50 |
| Subcategory | Operator Interface |
| Display Type | 5.7-inch TFT color LCD |
| Resolution | 640 × 480 (VGA) |
| Backlight | White LED (approx. 50,000-hour life) |
| Touch Panel Type | Analog resistive |
| Actuating Force | 0.8 N or less |
| Supported Languages | English, Japanese, German, Chinese (Simplified/Traditional), Korean, Italian, French, Spanish, Portuguese, Czech, Hungarian, Polish, Thai |
| Ethernet Standard | 100BASE-TX/10BASE-T |
| Ethernet Connector | M12 4-pin connector |
| Expanded Memory | USB memory |
| Power Voltage | 24 VDC ±10% (including ripple) |
| Current Consumption | 0.3 A or less |
| Enclosure Rating | IP40 |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Operating Humidity | 35–85% RH (no condensation) |
| Drop Resistance | 1.3 m (4.3 ft) onto concrete, any direction |
| Vibration Resistance | 10–55 Hz, 0.7 mm double amplitude, 2 hours per axis |
| Housing Material | Polycarbonate (main case), brass and zinc connectors, POM stylus |
| Connector Type | M12 Ethernet / USB port |
| Mounting | Wall or panel mount with adapter |
| Display Indicators | PWR, SENSOR |
| Weight | 1.70 lbs (approx. 770 g with accessories) |
Information About IV2-CP50
The IV2-CP50 serves as the main interface for Keyence IV2 Series AI vision sensors, providing direct control and real-time visualization of inspection processes. Its bright white LED backlight ensures excellent visibility, while the USB memory interface allows for quick data storage and firmware updates. Built with a durable polycarbonate case and IP40 protection, it withstands daily industrial operation while maintaining precision touch responsiveness. The panel supports multiple languages and Ethernet connectivity through a standard M12 4-pin connector, ensuring flexible integration with factory automation systems.
Key Features:
- High-Visibility Display: 5.7-inch TFT color LCD with 640×480 VGA resolution for sharp image output.
- Long-Life Backlight: White LED backlight rated for approximately 50,000 hours of operation.
- Touch Interface: Analog resistive touch panel with low actuating force (0.8 N or less).
- Global Language Support: Multi-language interface including English, Japanese, German, French, Spanish, and more.
- Network Ready: 100BASE-TX/10BASE-T Ethernet connection via M12 4-pin connector.
- USB Expandability: Supports USB memory for program backup and image data storage.
- Reliable Power Operation: 24 VDC ±10% input with low power consumption (0.3 A or less).
- Environmental Protection: IP40-rated enclosure with impact resistance against 1.3 m concrete drops.
- Rugged Construction: Brass and zinc-plated connectors with durable PC and POM housing materials.
- Compact and Lightweight: Easy to mount in control cabinets or operator panels.
The IV2-CP50 delivers a reliable and user-friendly interface for configuring and operating Keyence IV2 Series vision systems in modern automation environments.
