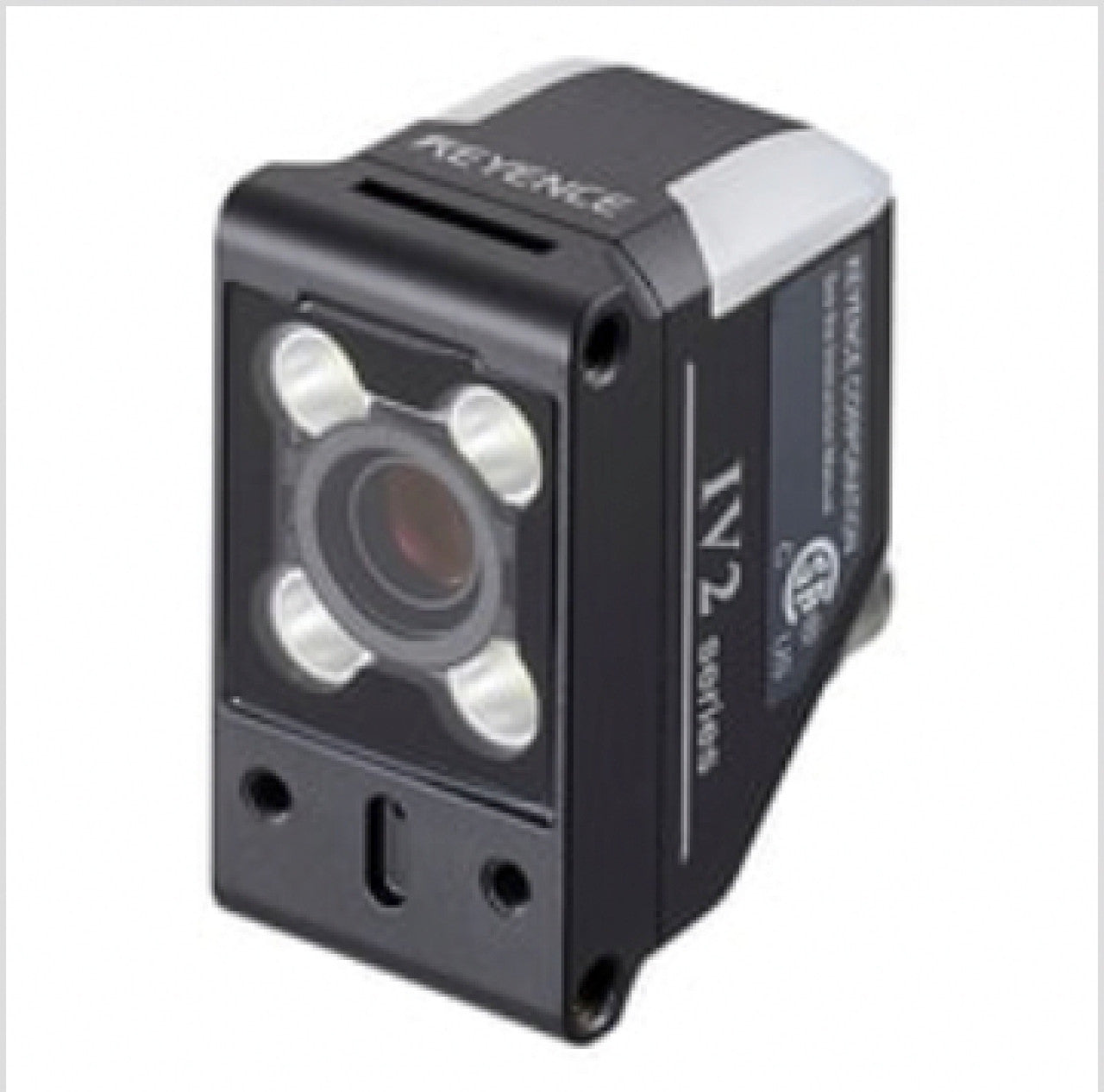

IV2-G500CA | Keyence IV2 Series Color AI Vision Sensor Head, Autofocus, 20–500 mm, IP67
- Regular price
- $1,032.00
- Sale price
- $1,032.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IV2-G500CA
Description
The Keyence IV2-G500CA is a standard color autofocus vision sensor head designed for advanced inspection and detection applications. Featuring built-in AI technology, it automatically adjusts focus and lighting for optimal imaging accuracy, making it ideal for detecting product features, colors, and shapes in automated production environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Camera & Vision |
| Part Number | IV2-G500CA |
| Subcategory | Camera Head |
| Series | IV2 Series |
| Type | Standard Model – Color AF Type |
| Image Sensor | 1/3″ Color CMOS |
| Resolution | 752 (H) × 480 (V) pixels |
| Reference Distance | 20 to 500 mm (0.79″ to 19.69″) |
| Field of View | 10 × 7.5 mm (min) to 200 × 150 mm (max) |
| Focus Adjustment | Automatic |
| Exposure Time | 1/10 to 1/50,000 sec |
| Indicators | Dual LED indicators (shared display) |
| Illumination | White LED |
| Lighting Mode | Switchable: Pulse / DC lighting |
| Enclosure Rating | IP67 (IEC 60529) |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Relative Humidity | 35–85 % RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5 mm (2 h in X/Y/Z) |
| Shock Resistance | 500 m/s² (≈50 G), 6 times each in 3 axes |
| Construction Material | Zinc die-cast case, acrylic front cover, TPU indicator cover |
| Weight | Approx. 75 g (0.11 lbs) |
Information About IV2-G500CA
The IV2-G500CA belongs to the Keyence IV2 Series of intelligent vision sensors, offering all-in-one inspection performance in a compact housing. Equipped with a 1/3-inch color CMOS sensor, it captures high-quality 752 × 480 images across a reference distance of 20 to 500 mm. Its autofocus capability enables flexible installation without manual lens adjustment, while built-in white LED illumination provides reliable lighting under various conditions. With IP67-rated protection, this durable unit is built for industrial use, resisting dust, vibration, and moisture. Switchable between pulse and DC lighting modes, the IV2-G500CA ensures stable imaging performance even in challenging environments.
Key Features:
- AI-Powered Vision Sensor: Built-in artificial intelligence automatically optimizes focus, exposure, and lighting settings.
- Wide Detection Range: Operates over a reference distance of 20–500 mm for versatile installation.
- High-Quality Imaging: 1/3" color CMOS sensor captures detailed images at 752 (H) × 480 (V) pixels.
- Autofocus Adjustment: Automatically focuses on targets of varying heights or distances.
- Durable Construction: IP67 enclosure for protection against water and dust in industrial settings.
- White LED Illumination: Built-in adjustable lighting for consistent image brightness and contrast.
- Compact and Lightweight: Weighs only 75 g, ideal for tight mounting spaces.
- Flexible Lighting Modes: Switchable between pulse and DC lighting for dynamic inspection needs.
- Wide Operating Temperature Range: Works reliably from 0 °C to +50 °C (32 °F to 122 °F).
- Industrial-Grade Reliability: Withstands 500 m/s² shock and continuous vibration in all axes.
The IV2-G500CA provides a powerful, maintenance-free solution for visual inspection, part verification, and color-based quality control.
Description
The Keyence IV2-G500CA is a standard color autofocus vision sensor head designed for advanced inspection and detection applications. Featuring built-in AI technology, it automatically adjusts focus and lighting for optimal imaging accuracy, making it ideal for detecting product features, colors, and shapes in automated production environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Camera & Vision |
| Part Number | IV2-G500CA |
| Subcategory | Camera Head |
| Series | IV2 Series |
| Type | Standard Model – Color AF Type |
| Image Sensor | 1/3″ Color CMOS |
| Resolution | 752 (H) × 480 (V) pixels |
| Reference Distance | 20 to 500 mm (0.79″ to 19.69″) |
| Field of View | 10 × 7.5 mm (min) to 200 × 150 mm (max) |
| Focus Adjustment | Automatic |
| Exposure Time | 1/10 to 1/50,000 sec |
| Indicators | Dual LED indicators (shared display) |
| Illumination | White LED |
| Lighting Mode | Switchable: Pulse / DC lighting |
| Enclosure Rating | IP67 (IEC 60529) |
| Operating Temperature | 0 °C to +50 °C (32 °F to 122 °F) |
| Relative Humidity | 35–85 % RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5 mm (2 h in X/Y/Z) |
| Shock Resistance | 500 m/s² (≈50 G), 6 times each in 3 axes |
| Construction Material | Zinc die-cast case, acrylic front cover, TPU indicator cover |
| Weight | Approx. 75 g (0.11 lbs) |
Information About IV2-G500CA
The IV2-G500CA belongs to the Keyence IV2 Series of intelligent vision sensors, offering all-in-one inspection performance in a compact housing. Equipped with a 1/3-inch color CMOS sensor, it captures high-quality 752 × 480 images across a reference distance of 20 to 500 mm. Its autofocus capability enables flexible installation without manual lens adjustment, while built-in white LED illumination provides reliable lighting under various conditions. With IP67-rated protection, this durable unit is built for industrial use, resisting dust, vibration, and moisture. Switchable between pulse and DC lighting modes, the IV2-G500CA ensures stable imaging performance even in challenging environments.
Key Features:
- AI-Powered Vision Sensor: Built-in artificial intelligence automatically optimizes focus, exposure, and lighting settings.
- Wide Detection Range: Operates over a reference distance of 20–500 mm for versatile installation.
- High-Quality Imaging: 1/3" color CMOS sensor captures detailed images at 752 (H) × 480 (V) pixels.
- Autofocus Adjustment: Automatically focuses on targets of varying heights or distances.
- Durable Construction: IP67 enclosure for protection against water and dust in industrial settings.
- White LED Illumination: Built-in adjustable lighting for consistent image brightness and contrast.
- Compact and Lightweight: Weighs only 75 g, ideal for tight mounting spaces.
- Flexible Lighting Modes: Switchable between pulse and DC lighting for dynamic inspection needs.
- Wide Operating Temperature Range: Works reliably from 0 °C to +50 °C (32 °F to 122 °F).
- Industrial-Grade Reliability: Withstands 500 m/s² shock and continuous vibration in all axes.
The IV2-G500CA provides a powerful, maintenance-free solution for visual inspection, part verification, and color-based quality control.
