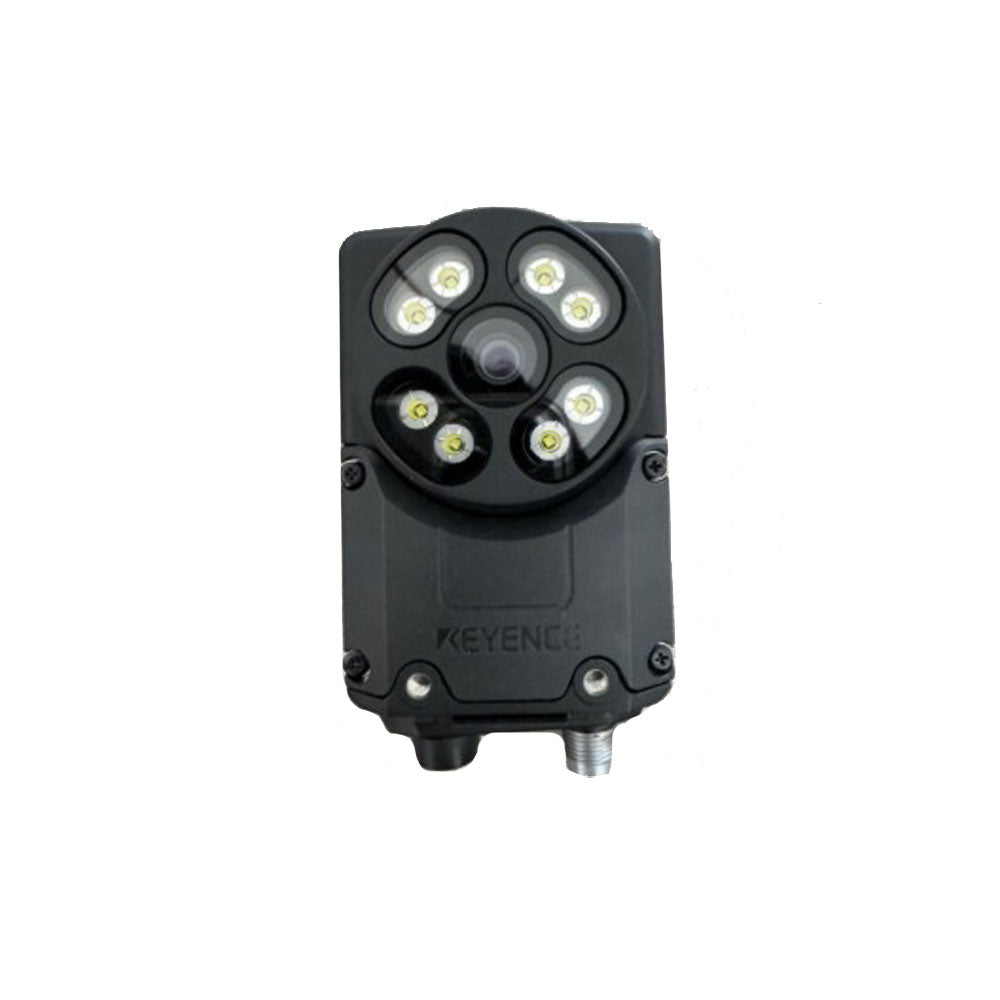

IV3-600MA | Keyence Smart Camera, Monochrome AF Type, 1280×960, Infrared LED, IP67
- Regular price
- $3,549.00
- Sale price
- $3,549.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IV3-600MA
Description
The Keyence IV3-600MA is a smart camera with a wide field of view and high-speed monochrome CMOS image sensor. Designed for versatile inspection applications, it features built-in autofocus (AF), high-speed processing, and robust image analysis tools capable of detecting presence, position, dimensions, and brightness across a wide range of targets.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Camera & Vision |
| Part Number | IV3-600MA |
| Subcategory | CCD Camera |
| Series | IV3 Series |
| Type | Smart Camera (Wide Field of View, Monochrome AF Type) |
| Installed Distance | 50 mm to 3000 mm |
| Field of View | 50 mm distance: 51 × 38 mm; 3000 mm distance: 2730 × 2044 mm |
| Image Sensor | 1/2.9-inch monochrome CMOS |
| Resolution | 1280 (H) × 960 (V) pixels |
| Illumination | Infrared LED (Pulse Lighting) |
| Focus Adjustment | Auto |
| Exposure Time | 12 µs to 10 ms |
| Number of Tools | Up to 64 detection tools |
| Programs (Switch Settings) | 32 (internal) / 128 (with SD card) |
| Image Storage | 100 images (BMP, JPEG, V3P, TXT format) |
| Save Conditions | NG only, NG near threshold, or all images |
| Input Ports | 6 ports (3 configurable as IN/OUT), supports 24 V logic |
| Output Ports | 6 ports (3 configurable as IN/OUT), photo MOS relay output, 30 V / 50 mA max |
| Communication Interface | EtherNet/IP™, PROFINET, TCP/IP (non-procedural) |
| Network Protocols | FTP client, SFTP client |
| Connectors | M12 12-pin (power I/O), M12 8-pin X-code (Ethernet) |
| Power Supply | 24 VDC ±25% (-20%) (including ripple) |
| Power Consumption | 3.3 A max (1.8 A without AI Lighting unit) |
| PoE Compatibility | IEEE802.3at (Class 4) or higher |
| Memory Expansion | microSD (microSDHC) card slot |
| Environmental Protection | IP67 (IEC60529) |
| Ambient Temperature | 0 °C to +50 °C (32 °F to 122 °F, no freezing) |
| Ambient Humidity | 35 to 85% RH (no condensation) |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude, 2 h each for X/Y/Z axes |
| Shock Resistance | 500 m/s² (approx. 50 G), 3 times each in 6 directions |
| Material | Aluminum die-cast body with hard-coated acrylic front cover |
| Weight | Approx. 300 g (10.59 oz) without AI Lighting / 495 g (17.47 oz) with AI Lighting |
Information About IV3-600MA
The IV3-600MA is part of the Keyence IV3 Series of intelligent vision sensors, offering high flexibility for industrial visual inspection. With a wide field of view ranging from 50 mm to 3000 mm installation distance and a 1/2.9-inch monochrome CMOS image sensor (1280 × 960 pixels), it captures clear, detailed images for advanced inspection tasks. The camera includes infrared LED illumination and automatic focus adjustment, providing stable detection regardless of target shape, material, or lighting conditions.
It supports multiple communication interfaces (EtherNet/IP™, PROFINET, TCP/IP) and allows image and data storage via SD card or FTP/SFTP servers, ensuring smooth integration into production networks. The IV3-600MA is built with an IP67-rated aluminum die-cast body for superior environmental durability.
Key Features:
- Wide Field of View: Covers large inspection areas from 50 mm up to 3000 mm.
- High-Resolution Monochrome Sensor: 1/2.9-inch CMOS, 1280 × 960 pixels for crisp imaging.
- Autofocus Function: Automatic focus adjustment at installation for consistent accuracy.
- Infrared LED Illumination: Pulse lighting for high-contrast imaging.
- Multiple Inspection Tools: Up to 64 detection tools, including outline, edge, area, OCR, pitch, and blob count.
- Flexible Image Management: Stores up to 100 images with selectable save conditions (OK/NG).
- Ethernet & Network Communication: Supports 1000BASE-T/100BASE-TX, FTP/SFTP transfer, EtherNet/IP™, and PROFINET.
- Durable Construction: IP67-rated housing resists dust, water, and vibration.
- Power over Ethernet (PoE) Support: Reduces wiring and simplifies installation.
- Programmable I/O Ports: 6 configurable IN/OUT ports for flexible system control.
- Compact & Lightweight: Approximately 300 g without lighting (495 g with AI Lighting unit).
- The IV3-600MA combines the capabilities of a smart camera and a vision system controller, ideal for inspection, measurement, and identification in industrial automation.
