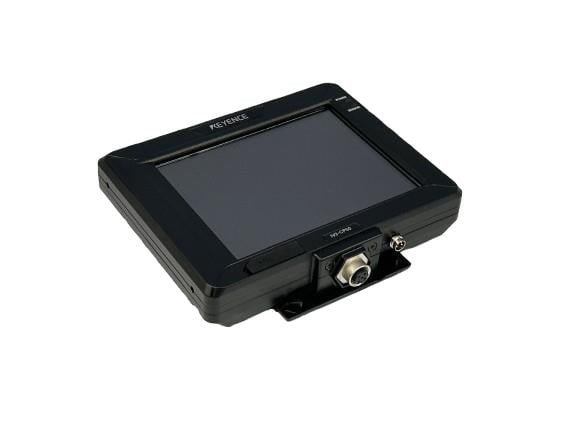

IV3-CP50 | Keyence IV3 Series Control Panel, 5.7” TFT LCD Touchscreen, 24 VDC, IP40
- Regular price
- $827.00
- Sale price
- $827.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IV3-CP50
Description
The Keyence IV3-CP50 is a compact 5.7-inch TFT color LCD control panel designed for use with Keyence IV3, IV2, and IV Series vision sensors. It provides a simple, intuitive interface for configuring, monitoring, and operating smart cameras and vision systems in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | HMI / MMI / OIT |
| Part Number | IV3-CP50 |
| Subcategory | Operator Interface |
| Series | IV3 Series |
| Display Type | 5.7” TFT Color LCD |
| Resolution | 640 × 480 pixels (VGA) |
| Backlight | White LED |
| Backlight Life | Approx. 50,000 hours (at 25°C) |
| Touch Panel Type | Analog resistive |
| Actuating Force | 0.8 N or less |
| Supported Languages | English, Japanese, German, Chinese (Simplified/Traditional), Korean, Italian, French, Spanish, Portuguese, Czech, Hungarian, Polish, Thai |
| Indicators | PWR, SENSOR |
| Ethernet Standard | 100BASE-TX |
| Ethernet Connector | M12 4-pin male connector |
| Expanded Memory | USB flash memory |
| Power Voltage | 24 VDC ±10% (including ripple) |
| Current Consumption | 0.3 A or less |
| Enclosure Rating | IP40 |
| Operating Temperature | 0 to +50°C (32 to 122°F) |
| Operating Humidity | 35 to 85% RH (no condensation) |
| Drop Resistance | 1.3 m (4.3 ft) on concrete, 2 times in arbitrary directions |
| Vibration Resistance | 10–55 Hz, 0.7 mm amplitude, 2 h each for X, Y, Z axes |
| Main Unit Material | PC (Polycarbonate) |
| Power Connector | Brass with nickel coating |
| Ethernet Connector Material | Zinc + nickel coating, PA |
| Accessories Materials | Pen holder: PC, Hook: POM, Stylus: POM, Mounting adapter: PC |
| Weight | 450 g (15.89 oz) main unit / 485 g (17.12 oz) with wall mount & stylus |
Information About IV3-CP50
The IV3-CP50 is part of the Keyence IV3 Series ecosystem, serving as the main interface for smart camera configuration and monitoring. It features a 640×480 VGA color display with a bright white LED backlight, analog resistive touch panel, and multilingual support for over a dozen languages.
Equipped with a 100BASE-TX Ethernet port (M12 4-pin connector), USB flash memory compatibility, and robust PC material housing, the IV3-CP50 is optimized for easy integration into inspection systems. It operates on 24 VDC, consumes only 0.3 A, and offers excellent resistance to vibration, shock, and environmental fluctuations.
Key Features:
- Bright 5.7” TFT Color LCD: 640 × 480 VGA resolution with white LED backlight.
- Durable Touch Panel: Analog resistive type with low actuating force (0.8 N).
- Multilingual Interface: Supports 14 languages, including English, Japanese, German, Chinese, Korean, French, and more.
- Industrial Connectivity: 100BASE-TX Ethernet via M12 4-pin connector for reliable communication.
- USB Storage Compatibility: Supports external USB flash drives for backup and data transfer.
- Compact and Lightweight: Weighs only 450 g, ideal for panel or wall mounting.
- Robust Environmental Design: IP40 rating, 0–50°C operating temperature range.
- Shock and Vibration Resistance: Withstands drops of 1.3 m and vibration at 10–55 Hz.
- Low Power Consumption: 0.3 A or less at 24 VDC.
The IV3-CP50 enables convenient on-site setup, monitoring, and adjustment of Keyence vision systems, improving ease of use and system responsiveness.
