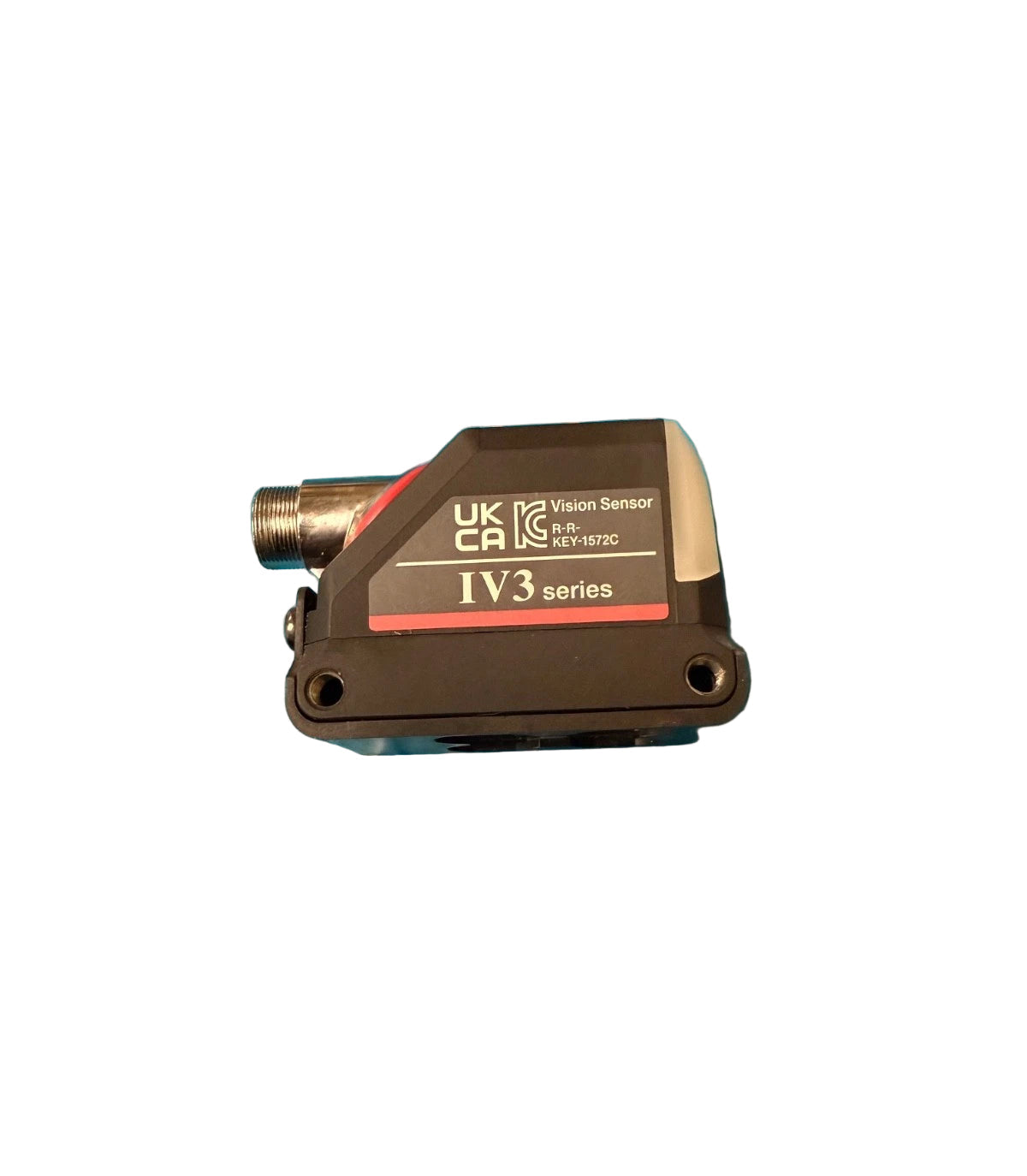

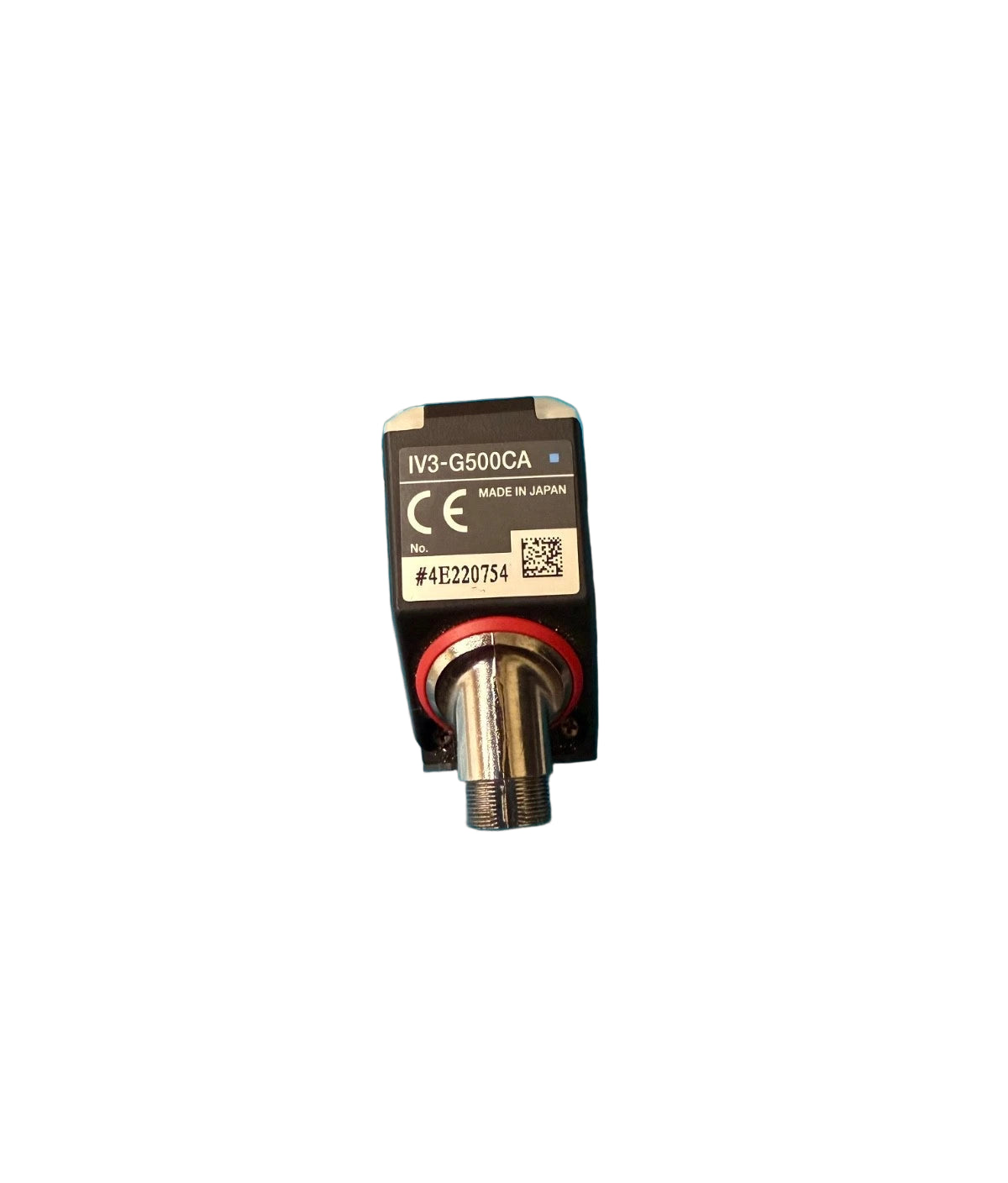

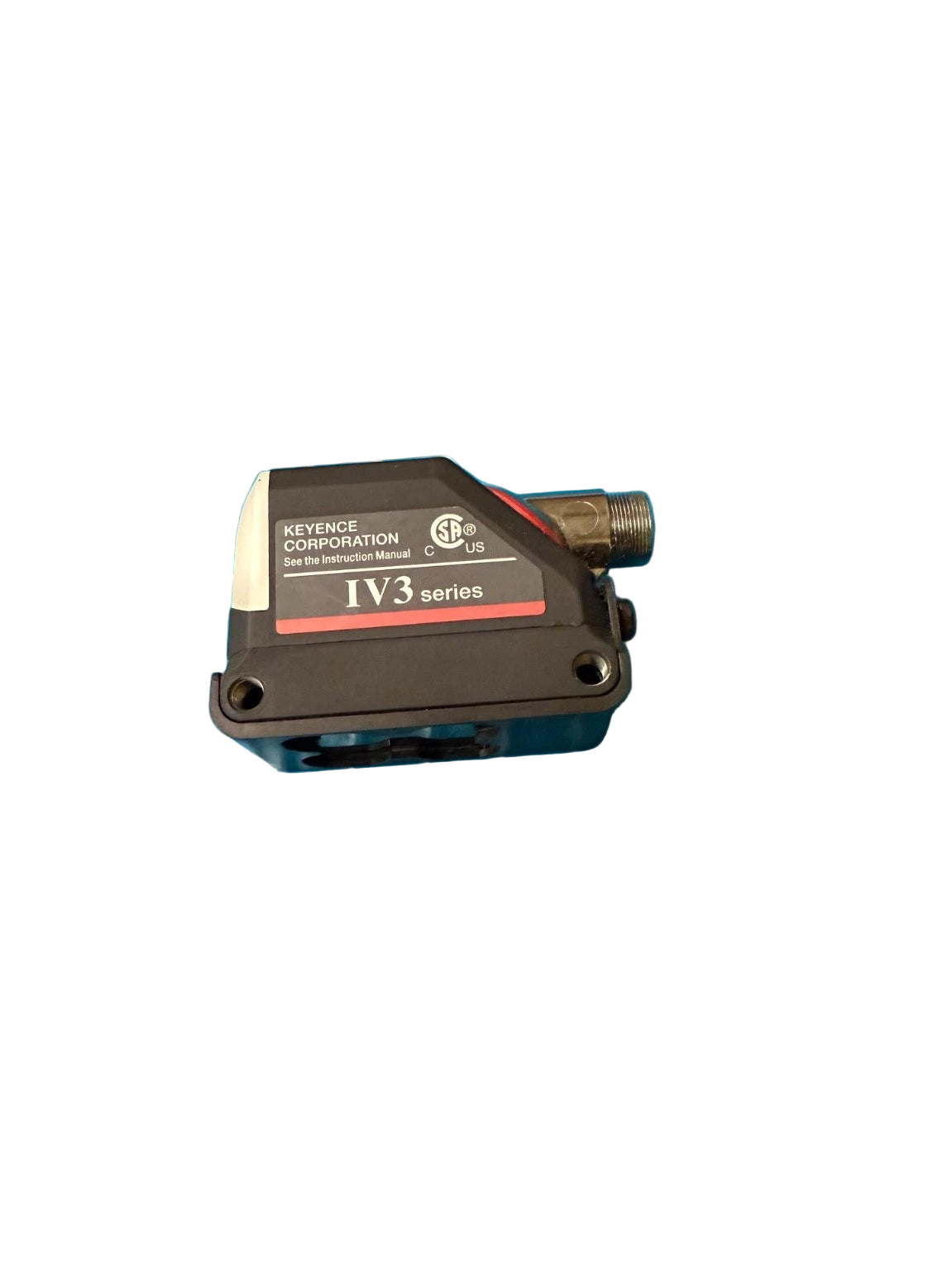

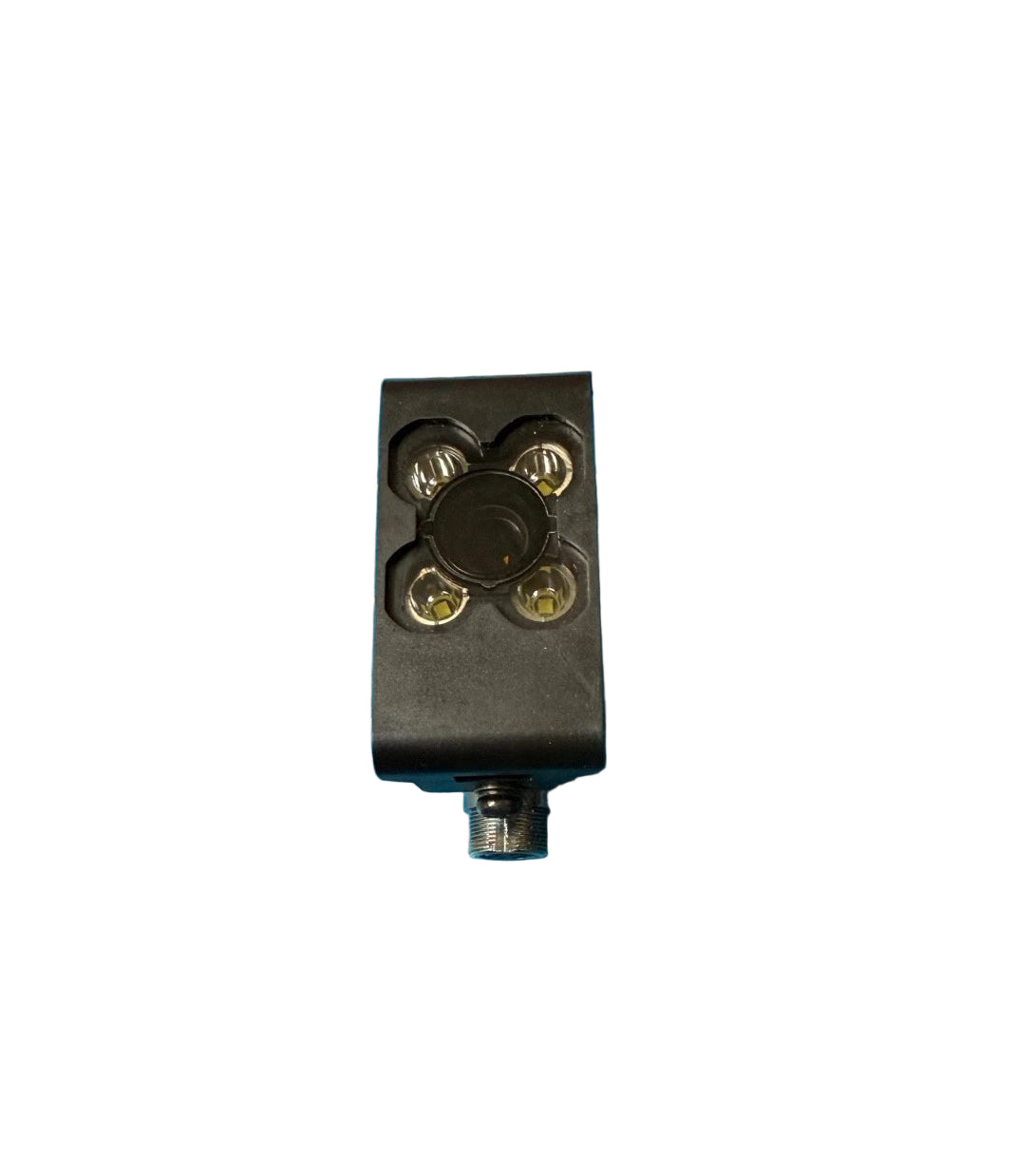

IV3-G500CA | Keyence Compact Color Autofocus Vision Sensor Head, 50–2000 mm Range, IP67
- Regular price
- $997.00
- Sale price
- $997.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IV3-G500CA
Description
The Keyence IV3-G500CA is a compact, standard-model color autofocus sensor head designed for advanced visual inspection and object detection tasks. Equipped with a 1/2.9-inch color CMOS image sensor and integrated white LED lighting, it provides reliable color and shape-based detection across a wide range of installation distances.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | IV3-G500CA |
| Subcategory | Proximity Switch |
| Type | Compact Sensor Head, Standard Model (Color AF Type) |
| Detection Range | 50 mm to 2000 mm or more |
| Image Sensor Type | 1/2.9-inch color CMOS |
| Resolution | 1280 (H) × 960 (V) pixels |
| Focus Adjustment | Auto (at installation) |
| Exposure Time | 12 µs to 9 ms |
| Illumination | White LED |
| Lighting Method | Pulse or continuous selectable |
| Indicators | Dual indicators (shared display for both) |
| Enclosure Rating | IP67 (IEC60529) |
| Ambient Temperature Range | 0 to +50 °C (32 to 122 °F, no freezing) |
| Ambient Humidity Range | 35 to 85% RH (no condensation) |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude, 2 hours/axis |
| Shock Resistance | 500 m/s² (approx. 50 G), 16 pulses ×6 directions |
| Material | Main unit: Zinc die-cast; Front cover: Acrylic; Indicator cover: TPU |
| Mounting Distance Examples | 50 mm: 22 × 16 mm view; 3000 mm: 1184 × 888 mm view |
| Weight (without Lighting Unit) | Approx. 75 g (2.65 oz) |
| Weight (with Lighting Unit) | Approx. 225 g (7.94 oz) |
Information About IV3-G500CA
The IV3-G500CA belongs to Keyence’s IV3 Series of intelligent vision sensors, known for compact design and easy configuration. This model features autofocus capability and a high-resolution color CMOS sensor (1280 × 960 pixels) that ensures accurate detection even in variable lighting or distance conditions. It operates effectively from 50 mm to 2000 mm, with flexible illumination control via pulse or continuous LED lighting. Built with a zinc die-cast housing and IP67-rated protection, the IV3-G500CA offers durability and stable performance in harsh industrial environments, supporting automated inspection, sorting, and position verification processes.
Key Features:
- High-Resolution Color Sensor: 1/2.9-inch CMOS with 1280 × 960 pixels for precise color-based inspection.
- Autofocus Function: Automatically adjusts focus during setup for optimal image sharpness.
- Wide Detection Range: Operates from 50 mm to over 2000 mm, adaptable to various target sizes and distances.
- Integrated White LED Illumination: Provides uniform lighting with selectable pulse or continuous operation.
- Compact and Rugged Design: Zinc die-cast body with IP67 protection for industrial reliability.
- Fast Image Capture: Adjustable exposure time from 12 µs to 9 ms for high-speed inspection.
- Stable Environmental Operation: Performs consistently across 0 to +50 °C and 85% RH conditions.
- Strong Vibration and Shock Resistance: Designed to withstand 10–55 Hz vibration and 500 m/s² shock loads.
- Easy Integration: Compatible with IV3 Series controllers and factory automation systems.
- Lightweight Build: Ideal for robotic and compact vision installations.
The IV3-G500CA delivers the reliability and precision required for automated visual inspection, position detection, and color-based quality control applications.
