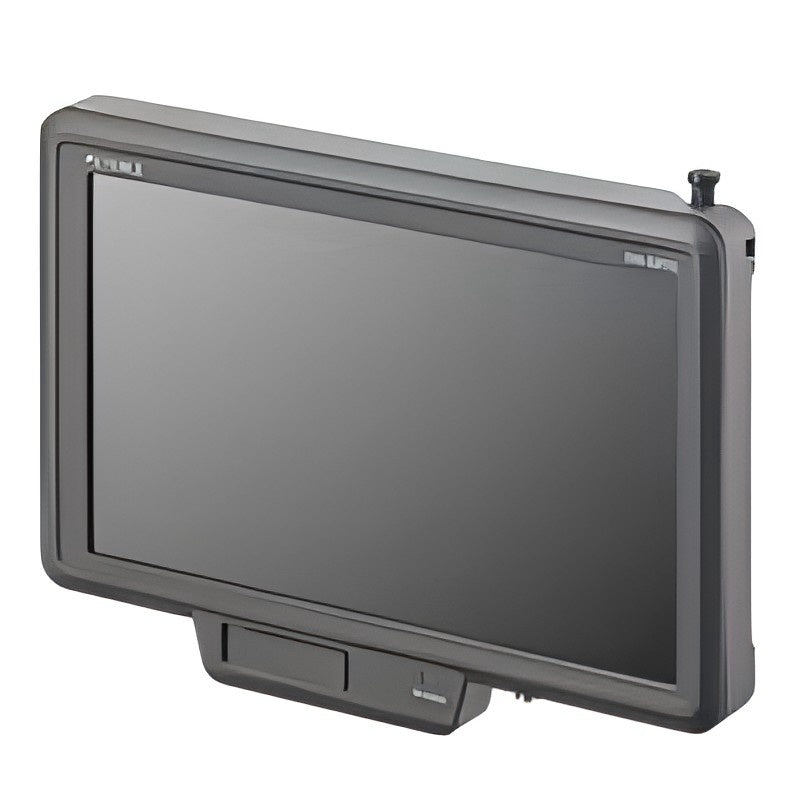

IV4-CP70 | Keyence 7-Inch Vision Sensor Control Panel, 24 VDC, Ethernet & USB
- Regular price
- $1,817.00
- Sale price
- $1,817.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IV4-CP70
Description
The Keyence IV4-CP70 is a 7-inch AI Vision Sensor Control Panel developed for efficient configuration, operation, and monitoring of IV Series vision sensors. It features a 1024×600 WSVGA TFT color LCD, Ethernet connectivity, and a durable design for reliable use in industrial automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Camera & Vision |
| Part Number | IV4-CP70 |
| Subcategory | Control Panel |
| Display Panel | 7-inch TFT Color LCD, 1024×600 (WSVGA) |
| Compatible Sensors | IV4 Series, IV3 Series, IV2 Series, IV Series |
| Backlight | White LED, approx. 50,000 hours (at 25°C) |
| Touch Panel | Analog resistive type |
| Ethernet | M12 8-pin X-code connector (1000BASE-T/100BASE-TX) |
| USB Interface | A-type (HS compatible, supports memory/mouse) |
| Network Function | VNC server |
| Supported Languages | 15 languages (EN, DE, FR, ES, CN, JP, IT, etc.) |
| Expanded Memory | USB stick / microSD / microSDHC |
| Power Supply Voltage | 24 VDC (+25% / -20%) |
| Power Consumption | 0.9 A or less (at 19.2 V), approx. 6.0 W average |
| Enclosure Rating | IP40 |
| Ambient Temperature | 0 to +50°C (32 to 122°F), no freezing |
| Relative Humidity | 85% RH or less (no condensation) |
| Drop Resistance | 1.3 m (4.3 ft) over concrete (2 drops, any direction) |
| Vibration Resistance | 10 to 500 Hz, 0.816 G²/Hz for X, Y, and Z directions |
| Material | Case: PC; Connectors: Brass/Nickel alloy; Stylus: POM |
| Cooling Method | Natural air cooling |
| Mounting Method | Wall-mount or panel mount |
| Weight | Main unit: approx. 540 g (1.19 lbs); with adapter: 590 g (1.3 lbs) |
Information About IV4-CP70
The IV4-CP70 belongs to the Keyence IV Series family of vision system components, serving as a user-friendly control interface for AI-based vision sensors such as the IV4, IV3, and IV2 models. It integrates a 7-inch analog resistive touchscreen for intuitive control and setup. The unit supports Ethernet (M12 8-pin X-code) and USB interfaces, allowing fast data transfer, memory expansion, and remote access through VNC server functionality. With multilingual support and a white LED backlit display rated for 50,000 hours, the IV4-CP70 is ideal for machine vision inspection, setup adjustment, and real-time image monitoring in automated manufacturing systems.
Key Features:
- Large Touch Display: 7-inch TFT color LCD (1024×600) for clear visualization and intuitive operation.
- Wide Sensor Compatibility: Works seamlessly with Keyence IV4, IV3, IV2, and IV Series vision sensors.
- Durable LED Backlight: White LED with an expected life of 50,000 hours at 25°C for long-term use.
- Multilingual Interface: Supports 15 languages, including English, German, French, Spanish, and Chinese.
- VNC Network Functionality: Enables remote access and monitoring via a VNC server over Ethernet.
- Flexible Connectivity: Features M12 8-pin Ethernet and USB (A-type) ports for communication and memory expansion.
- Energy Efficient: Operates at 24 VDC ±25/-20%, with a low 6.0 W average consumption.
- Rugged Industrial Build: Designed for factory environments with IP40 protection and shock resistance up to 1.3 m drops.
- Environmental Tolerance: Functions in 0 to +50°C (32–122°F) with up to 85% RH humidity.
- Compact & Lightweight: Easily integrates into control panels or mounting enclosures, weighing under 600 g.
The IV4-CP70 delivers the precision, usability, and connectivity required for advanced industrial vision inspection and sensor management.
