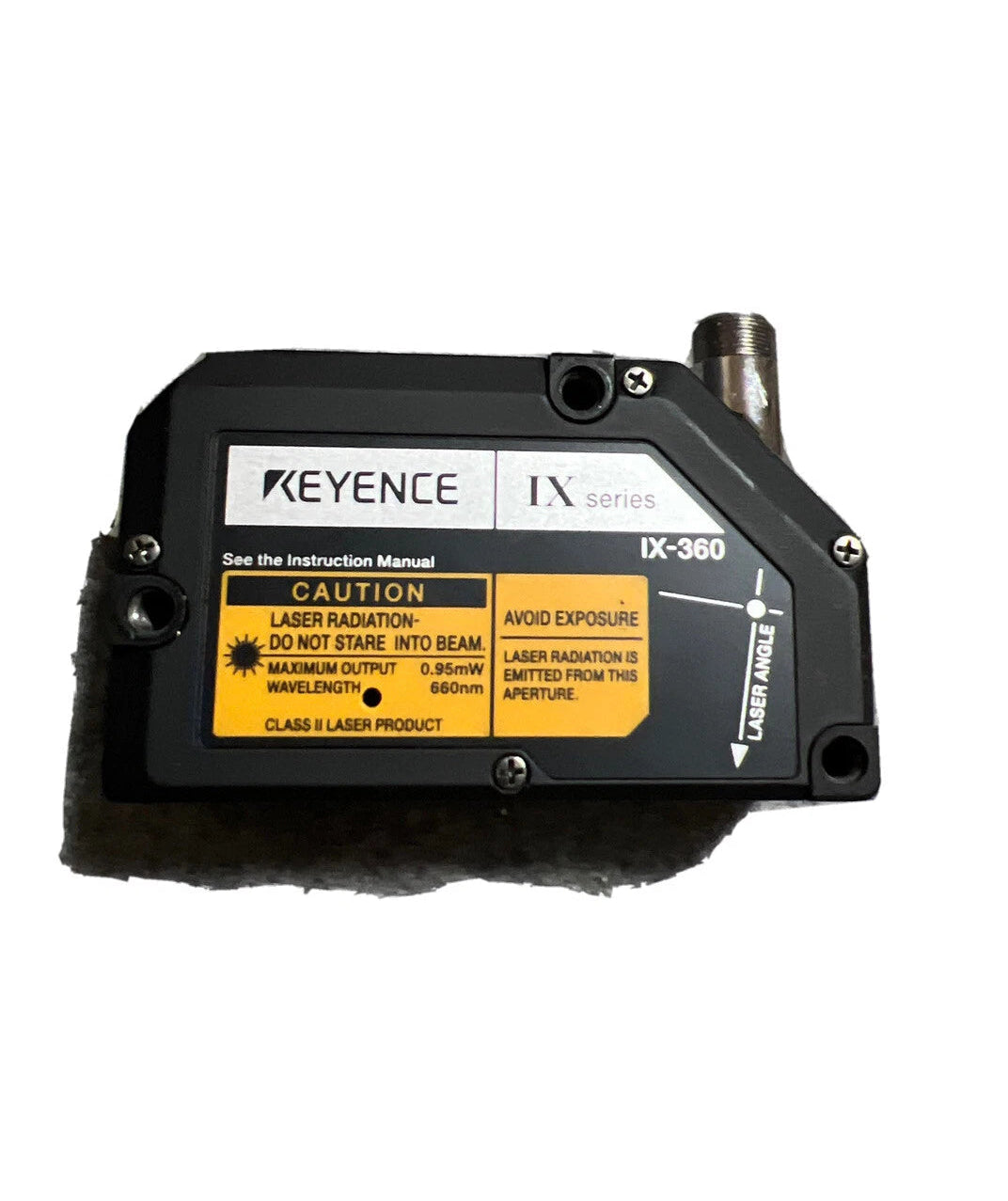

IX-360 | Keyence IX Series Laser Sensor Head, 360 mm Range, 660 nm Red Laser, IP67
- Regular price
- $814.00
- Sale price
- $814.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IX-360
Description
The Keyence IX-360 is a precision laser sensor head designed for use with the IX Series displacement and profile measurement systems. Operating at a reference distance of 360 mm, it provides high-accuracy, non-contact height and width detection using a 660 nm red semiconductor laser and a monochrome CMOS image sensor.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | IX-360 |
| Subcategory | Laser Gauging System |
| Series | IX Series |
| Type | Laser Sensor Head |
| Reference Distance | 360 mm (14.17") |
| Measuring Distance | 280 to 440 mm (11.02" to 17.32") |
| Detection Area (Scan Mode) | 66 × 49.5 mm (at 280 mm); 84 × 60 mm (at 360 mm); 102 × 76.5 mm (at 440 mm) |
| Detection Area (Line Mode) | 66 mm (at 280 mm); 84 mm (at 360 mm); 102 mm (at 440 mm) |
| Light Source | 660 nm visible red semiconductor laser |
| Laser Class | Class 1 (FDA CDRH) / Class 2 (IEC 60825-1:2014) |
| Laser Output | 0.95 mW (FDA) / 1.6 mW (IEC) |
| Minimum Detectable Object (Scan Mode) | Ø0.9 µm to Ø1.8 µm (height) |
| Minimum Edge Detection (Line Mode) | 1 mm |
| Repeatability | 150 µm |
| Sampling Cycle | Scan Mode: 120 ms (typ.); Line Mode: 6 ms / 11 ms selectable |
| Image Sensor | Monochrome CMOS |
| Image Lighting Source | Red LED (pulse lighting) |
| Temperature Drift | 0.08% F.S./°C |
| Enclosure Rating | IP67 |
| Ambient Light Resistance | 5000 lux (incandescent) |
| Operating Temperature Range | 0 to +45 °C (32 to 113 °F) |
| Operating Humidity Range | 35 to 85% RH (no condensation) |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude, 2 hours each in X/Y/Z |
| Shock Resistance | 500 m/s² (approx. 50 G), 3 times each in 3 directions |
| Material | Main body: Zinc die-cast; Front cover: Acrylic (hard coat); Indicator cover: TPU |
| Connector Type | 6-pin female connector |
| Weight | Approx. 190 g (0.42 lb) |
Information About IX-360
The IX-360 is part of the IX Series of high-performance laser displacement sensors from Keyence, offering accurate 2D height and width measurements for industrial automation and quality control. With a measuring distance from 280 to 440 mm and Class 1/2 laser classification, it ensures safe and reliable operation. The unit’s 660 nm visible red laser provides excellent contrast for a variety of materials, while its monochrome CMOS sensor captures fine surface profiles with repeatability up to 150 μm. Designed for robust industrial use, the IX-360 features IP67 protection, vibration and shock resistance, and stable performance in diverse lighting conditions.
Key Features:
- High-Precision Measurement: Detects fine height differences as small as 0.9 μm for detailed surface profiling.
- Flexible Detection Modes: Supports both scan and line modes for height and width evaluation.
- Visible Red Laser Source: 660 nm wavelength for stable detection across various materials.
- Wide Measuring Range: Operates effectively between 280 mm and 440 mm from target surface.
- High-Speed Sampling: 6 to 11 ms selectable in line mode, 120 ms in scan mode.
- Robust Environmental Resistance: IP67-rated housing ensures protection against dust and water.
- Excellent Stability: ±0.08% of F.S./°C temperature characteristics for consistent accuracy.
- Industrial-Grade Durability: Zinc die-cast construction with acrylic front cover and TPU indicator protection.
- Ambient Light Tolerance: Operates under lighting up to 5000 lux for factory environments.
- Compact & Lightweight: Weighs only 190 g for easy installation on robotic or stationary mounts.
The IX-360 delivers the accuracy and reliability required for automated dimensional inspection, alignment, and surface height verification.
