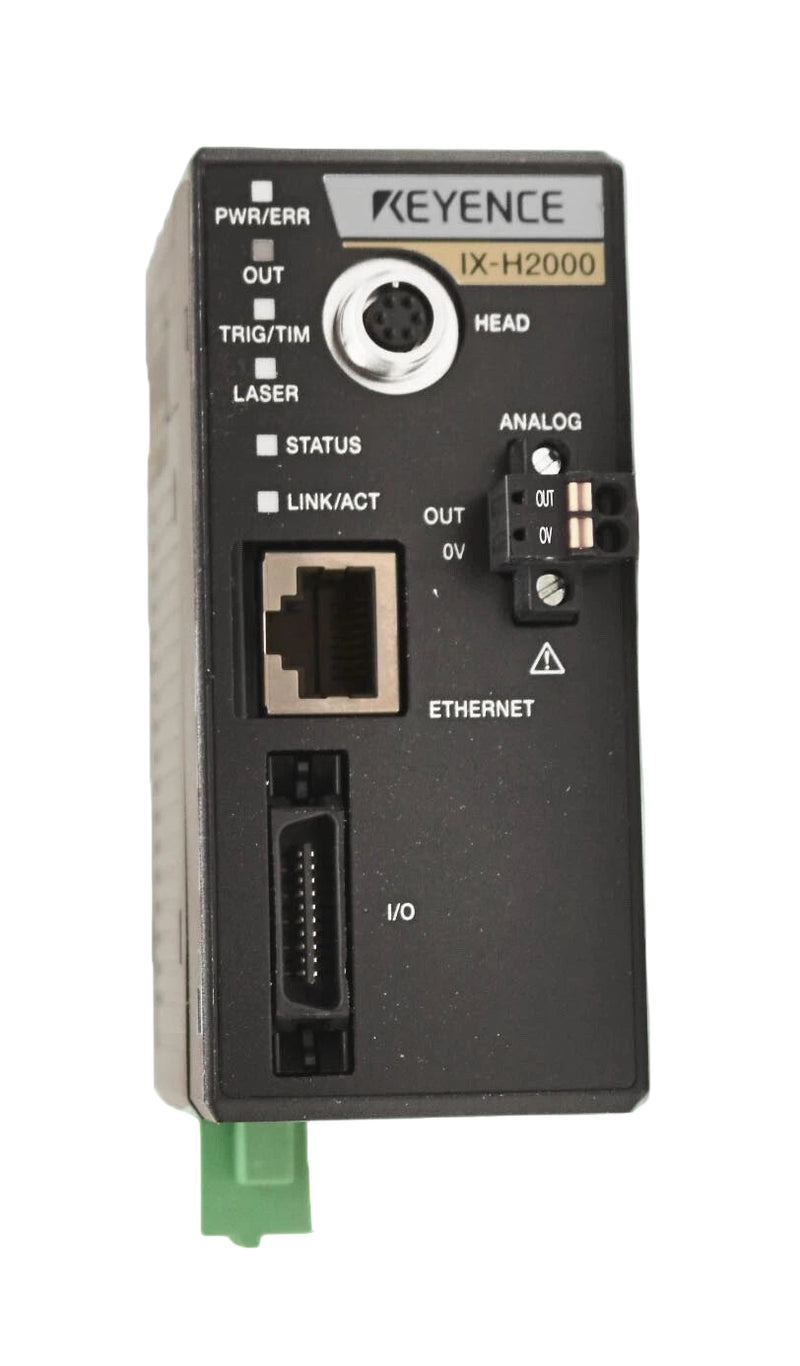

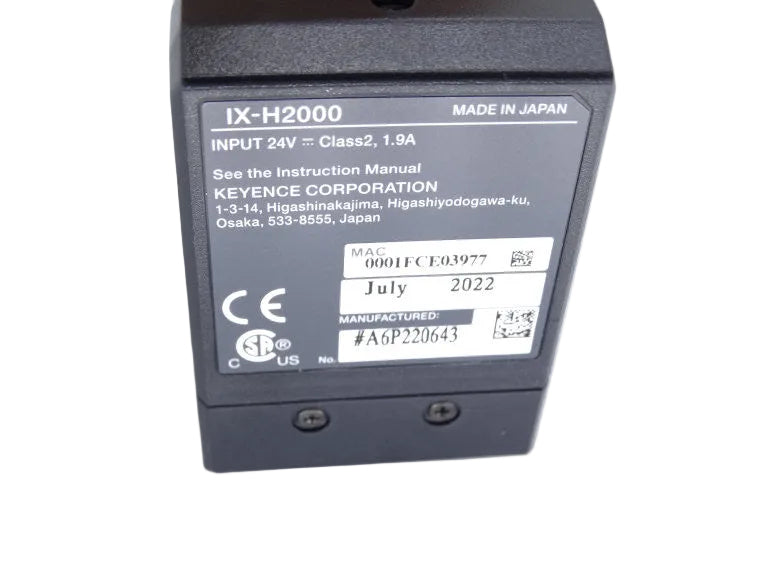

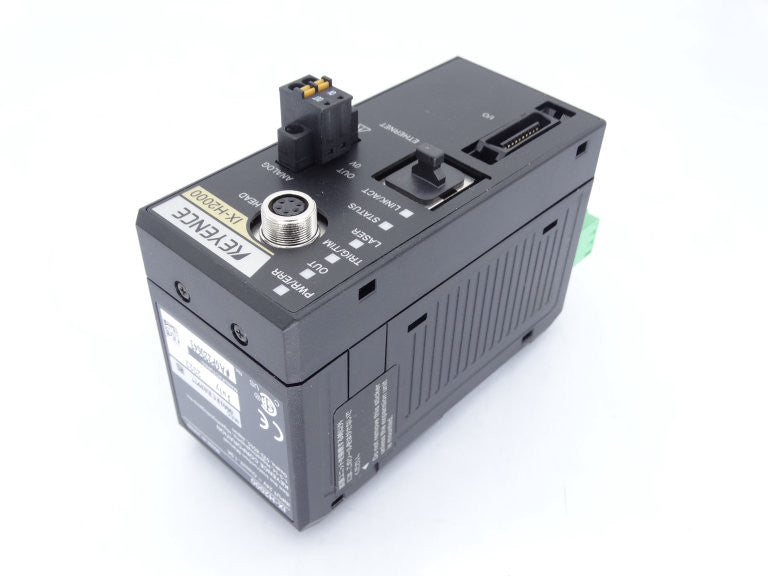

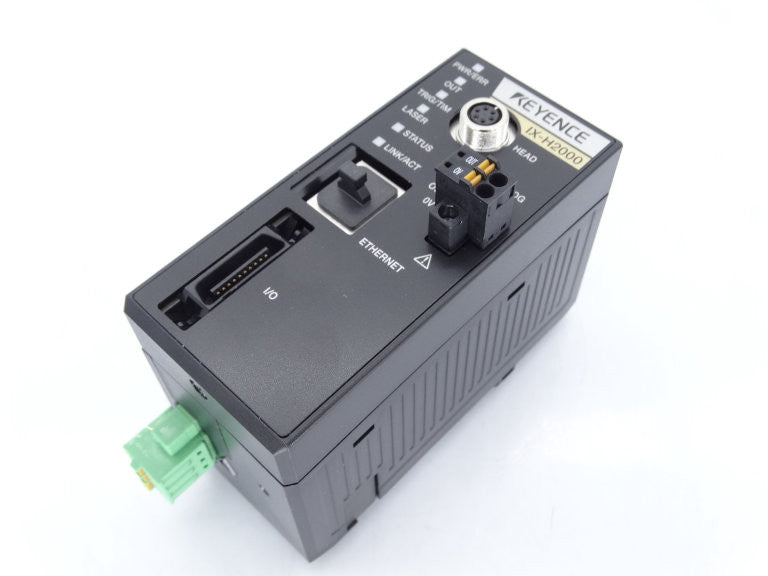

IX-H2000 | Keyence IX Series Sensor Amplifier Main Unit, 8 Inputs, 10 Outputs, 24 VDC
- Regular price
- $1,232.00
- Sale price
- $1,232.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: IX-H2000
Description
The Keyence IX-H2000 is a high-performance sensor amplifier main unit for the IX Series displacement and height detection systems. It combines precise measurement tools, multiple I/O capabilities, and Ethernet connectivity to support automated inspection, alignment, and dimensional control in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | IX-H2000 |
| Subcategory | Sensor Amplifier |
| Type | Main Unit (IX Series) |
| Power Supply Voltage | 24 VDC ±10% (including ripple) |
| Current Consumption | Max. 1.9 A or less (main unit: 0.8 A, with expansion: 1.9 A) |
| Display Range (Z-axis) | ±999.99 to ±999 mm (4 selectable steps) |
| Display Range (X-axis) | ±999.95 to ±999 mm (4 selectable steps) |
| Minimum Display Unit | Z-axis: 10 µm; X-axis: 50 µm |
| Measurement Modes | Scan mode / Line mode |
| Measurement Tools | Height, width, step, thickness, area, tilt, position adjustment |
| Analog Voltage Output | ±5 V, 1–5 V, or 0–5 V |
| Analog Current Output | 4–20 mA, max. load resistance 350 Ω |
| Digital Inputs | 8 (IN1–IN8), NPN/PNP compatible |
| Digital Outputs | 10 (OUT1–OUT10), open collector (NPN/PNP switchable) |
| Ethernet Interface | 100BASE-TX / 10BASE-T (RJ45 8-pin) |
| Communication Protocols | EtherNet/IP™, EtherCAT®, CC-Link, DeviceNet®, PROFINET, Modbus/TCP |
| Number of Programs | 32 |
| Detection History | Up to 100 (scan mode) / 500 (line mode) |
| Data Transmission | FTP/SFTP server, saves bmp, jpeg, or txt data |
| Memory Capacity | Internal memory for 50–500 data sets depending on mode |
| Ambient Temperature Range | 0 to +50 °C (32 to 122 °F) |
| Ambient Humidity Range | 35 to 85% RH (no condensation) |
| Material | Main unit case: PC/POM; Heat sink: aluminum alloy; Connectors: zinc + Ni plating |
| Mounting Type | DIN rail or panel mount |
| Interface Compatibility | CC-Link, DeviceNet®, EtherCAT®, RS-232C, BCD output, TCP/IP |
| Weight | Approx. 210 g (0.46 lb) |
Information About IX-H2000
The IX-H2000 is part of the Keyence IX Series of laser displacement sensor amplifiers, designed for high-speed, high-accuracy measurements. It supports both scan and line modes with multiple measurement functions, including height, thickness, step, and tilt correction. The unit offers eight inputs, ten outputs, and analog output options (voltage and current) for flexible integration into control systems. With Ethernet and fieldbus compatibility—including EtherNet/IP™, EtherCAT®, DeviceNet®, and CC-Link—the IX-H2000 provides seamless communication with PLCs and factory networks. Its rugged construction and wide environmental tolerance make it suitable for precision automation and quality control applications.
Key Features:
- High-Precision Measurement: Supports 10 µm resolution on the Z-axis and 50 µm on the X-axis for accurate displacement and height data.
- Multiple Operating Modes: Scan and line modes with tools for thickness, step, area, and positional adjustment.
- Advanced Connectivity: Ethernet (100BASE-TX/10BASE-T) with RJ45 8-pin connector and support for multiple protocols.
- Flexible I/O Configuration: 8 digital inputs and 10 digital outputs (NPN/PNP switchable).
- Analog Output Options: ±5 V, 1–5 V, 0–5 V voltage output or 4–20 mA current output.
- Programmable Functions: Up to 32 measurement programs for custom inspection setups.
- Comprehensive Data Storage: Built-in FTP/SFTP client supports image and measurement data backup.
- High-Speed Processing: Supports up to 100 detection histories in scan mode and 500 in line mode.
- Robust Industrial Design: PC and metal composite body with DIN rail mounting.
- Wide Environmental Tolerance: Operates from 0 to +50 °C and 35–85% RH for versatile factory use.
The IX-H2000 delivers the performance and precision required for advanced laser displacement measurement, part alignment, and surface inspection tasks.
