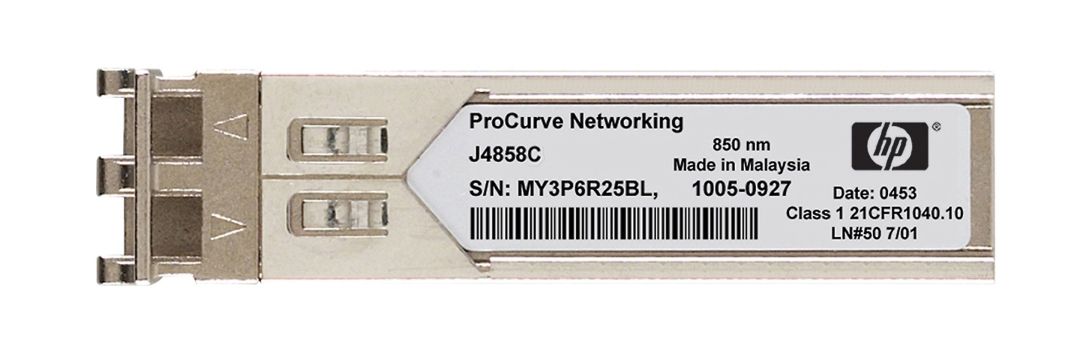

J4858C | HP Networking ProCurve Compatible 550m DOM Duplex LC/UPC MMF Optical Transceiver Module
- Regular price
- $60.00
- Sale price
- $60.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: J4858C
Description
The J4858C is an HP Networking ProCurve compatible SFP optical transceiver module designed for 1.25Gbps Gigabit Ethernet applications. Supporting up to 550 meters over OM2 multimode fiber, it features DOM support and complies with MSA and IEEE 802.3z standards.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
| Category |
Networking
|
| Part Number | J4858C |
| Subcatecory |
Optical Transceivers
|
| Form Factor | SFP |
| Max Data Rate |
1.25Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 550m over OM2 MMF |
| Connector | Duplex LC/UPC |
| Optical Components | VCSEL 850nm Transmitter, PIN Receiver |
| Media | Multimode Fiber (MMF) |
| TX Power | -9.5 dBm to -3 dBm |
| Receiver Sensitivity | < -17 dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Weight |
0.04 lb |
Information About J4858C
The HP Compatible J4858C is a hot-swappable SFP transceiver module engineered for Gigabit Ethernet connectivity over multimode fiber (MMF) networks. Operating at a wavelength of 850 nm, it is optimized for use with OM2 MMF cabling, supporting transmission distances up to 550 meters. This module uses a VCSEL (Vertical-Cavity Surface-Emitting Laser) for transmission and a PIN photodiode receiver, ensuring high-quality optical signal performance with minimal power consumption.
Key Features:
-
Gigabit Ethernet Support: 1.25Gbps data rate for high-speed networking.
-
Long-Distance MMF Transmission: Up to 550 meters over OM2 fiber.
-
DOM Support: Enables real-time optical parameter monitoring.
-
Energy Efficient: Low power consumption through VCSEL technology.
-
Standards Compliance: MSA and IEEE 802.3z compatibility for broad interoperability.
The J4858C offers a cost-effective, reliable, and standards-based solution for expanding Gigabit Ethernet fiber networks in enterprise and campus environments.
