J4859C | HP Networking Transceiver Module
- Regular price
- $49.00
- Sale price
- $49.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: J4859C
Description

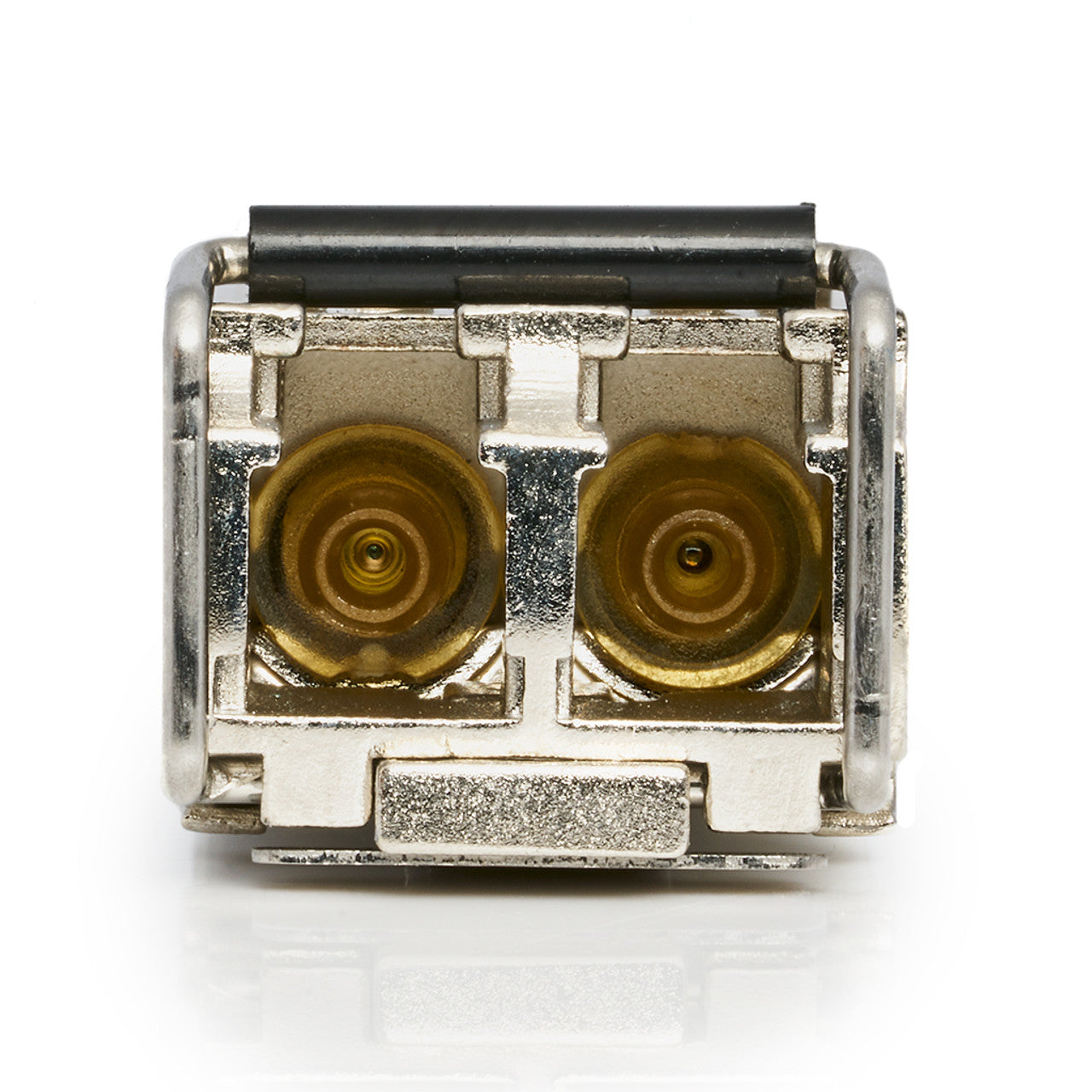

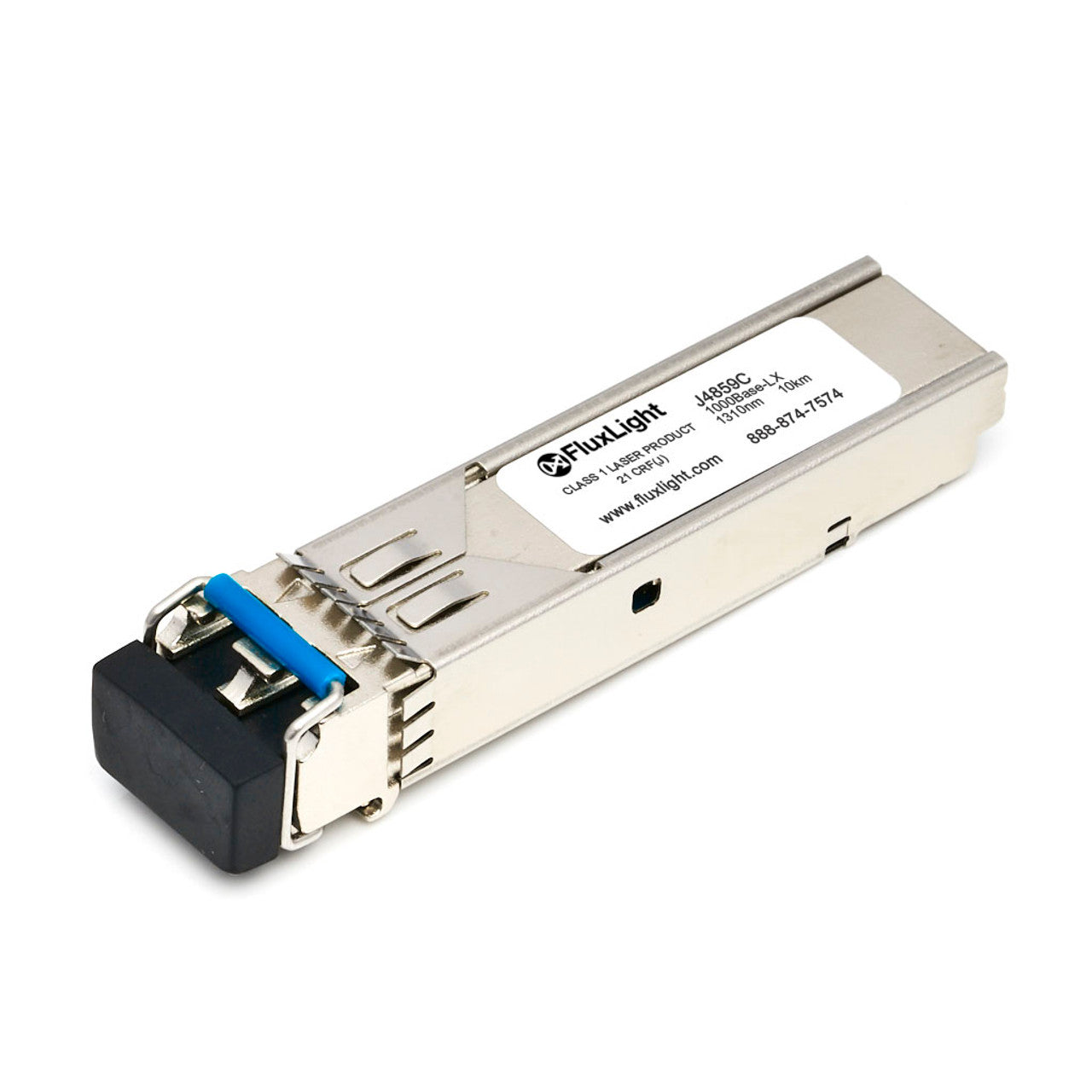

The HP J4859C is a hot-swappable SFP (Small Form-factor Pluggable) transceiver module designed for Gigabit Ethernet and Fibre Channel applications. It provides 1 Gbps data transfer over single-mode or multimode fiber with an LC connector, supporting distances up to 10 km (on SMF).
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
| Category |
Telecommunication Accessories
|
| Part Number | J4859C |
| Subcategory |
Telecom Accessories
|
| Media Type | Single-Mode Fiber (SMF) |
| TX Wavelength |
1310 nm.
|
| RX Wavelength |
1310 nm.
|
| Minimum Optical Budget |
13 dB
|
| Maximum Distance |
10km
|
| Supported Data Rate |
1.063-1.25Gbps
|
| Supported Applications |
Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)
|
| DDM/DOM |
Support
|
| Temperature Range |
Standard 0°-70°C
|
| Connectors |
Double LC
|
| Minimum Transmitting Power |
-9 dB
|
| Maximum Transmitting Power |
3 dB
|
| Receiver Sensitivity |
-22 dBm
|
| Receiver Overload |
-3 dBm
|
| Dispersion |
70-100 ps/nm
|
| Transmitter Type |
FP Laser
|
| Receiver Type |
PIN photodiode
|
| Power |
+3.3V single power supply
|
| Power |
+3.3V single power supply
|
| Weight |
0.14 kgs
|
Information About J4859C
The HP J4859C is a 1000BASE-LX Small Form-factor Pluggable (SFP) transceiver module designed for Gigabit Ethernet and Fibre Channel applications. It provides reliable 1 Gbps connectivity over single-mode fiber (SMF) for distances up to 10 km using a 1310 nm wavelength via an LC duplex connector. The module is hot-swappable and compliant with IEEE 802.3z standards, ensuring seamless integration with compatible HP networking equipment.
Key Features:
-
Data Rate: 1.25 Gbps
-
Wavelength: 1310 nm
-
Maximum Distance: 10 km over SMF
-
Connector Type: LC Duplex
-
Fiber Type: Single-mode (9/125 µm)
-
Digital Diagnostic Monitoring (DDM): Supported
-
Operating Temperature Range: 0°C to 70°C
-
Power Supply Voltage: 3.3 V
-
Power Consumption: <1 W
-
Compliance: IEEE 802.3z, SFP MSA (INF-8074i), RoHS
This transceiver is ideal for enterprise LAN and SAN networks, data centers, and other optical link applications requiring dependable long-distance Gigabit Ethernet connectivity. Its hot-swappable design allows for easy installation and replacement without network disruption.
