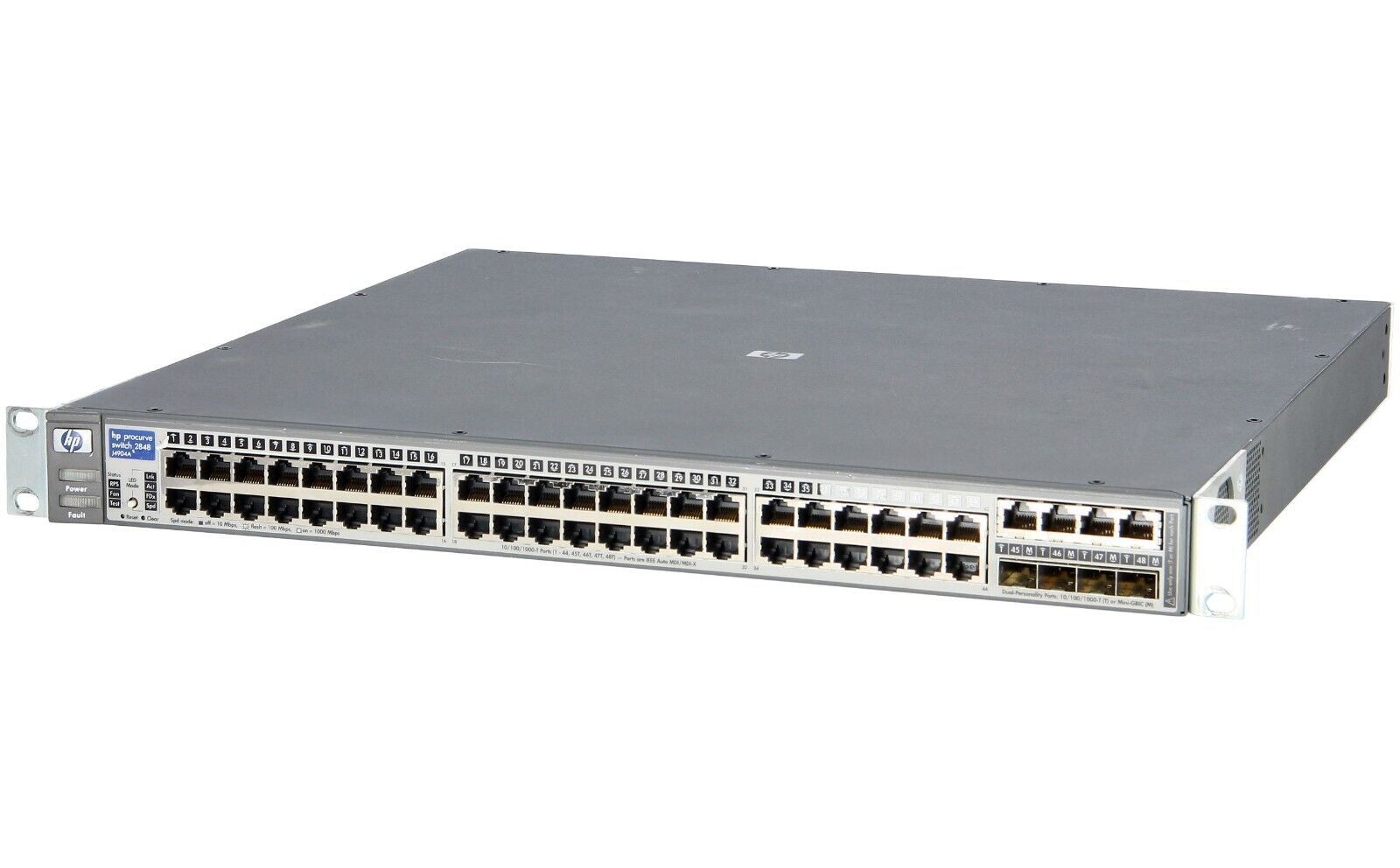

J4904A | HP Networking ProCurve 2848 Ethernet Switch
- Regular price
- $182.00
- Sale price
- $182.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: J4904A
Description
The J4904A is an HP ProCurve 2848 managed Ethernet switch offering 48 Gigabit Ethernet ports and 4 dual-personality ports for flexible uplink connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
| Category |
Computer
|
| Part Number | J4904A |
| Subcatecory | Networking Router |
|
Device Type
|
Ethernet Switch |
| Ports | 48 x 10/100/1000Base-T |
| Ports Details |
48 x RJ-45 10/100/1000Base-T Port(s) Auto MDI/MDI-X
1 x DB-9 Console Port(s) Management |
| Expansion Slots | 4 x Expansion Slot(s) |
|
Slots Details
|
4 x SFP (mini-GBIC) |
| Flow Control |
IEEE 802.3x (Full-duplex) |
| Connectivity Media | Twisted Pair 10/100/1000Base-T |
| Data Transfer Rate |
1Gbps Gigabit Ethernet 100Mbps Fast Ethernet 10Mbps Ethernet |
| Performance |
71.4Mpps Throughput
96Gbps Switching Fabric |
| Memory | 16MB Flash Memory |
| Address Table |
16K MAC Addresses |
| Input Voltage |
100 to 127V AC 200 to 240V AC |
| Input Current |
0.6A
0.3A |
| Frequency | 50 to 60 Hz |
| Power Consumption |
100W |
| Power Supply | Redundant Optional |
| Temperature |
32 to 131°F (0 to 55°C) Operating
-40 to 158°F (-40 to 70°C) Storage |
| Humidity |
15 to 95% Non-condensing Relative Humidity Operating
15 to 90% Non-condensing Relative Humidity Storage |
| Altitude | 15091 ft Maximum |
| Thermal Dissipation | 341 BTU/sMaximum |
| Form Factor | 19" Rack-mountable |
| Dimensions | 17.32" x 16.9" x 1.7" |
| Weight | 14.5 lbs |
Information About J4904A
The J4904A is an HP ProCurve 2848 managed Ethernet switch designed for high-performance, scalable network connectivity in enterprise and campus environments. It provides extensive Layer 2 features and flexible uplink options to support demanding network requirements.
Key Features:
- Type: Managed Layer 2 Ethernet Switch
- Supported Devices: Suitable for connecting servers, workstations, access points, IP phones, and other networked devices
- Functionality: Offers 48 x 10/100/1000 Gigabit Ethernet ports and 4 dual-personality ports (10/100/1000 or mini-GBIC) for uplink flexibility
- Performance: Provides wire-speed Layer 2 switching with robust throughput for high-bandwidth applications
- Layer 2 Features: VLAN support, Spanning Tree Protocol (STP), Link Aggregation, Quality of Service (QoS), and advanced security options
- Management: Web-based management, CLI, SNMP, and compatibility with HP ProCurve Manager
- Construction: 1U rack-mountable design, fan-cooled for reliable operation in enterprise data centers or wiring closets
The J4904A offers a cost-effective and reliable solution for businesses seeking scalable, high-performance Gigabit Ethernet switching with robust management and security features.
