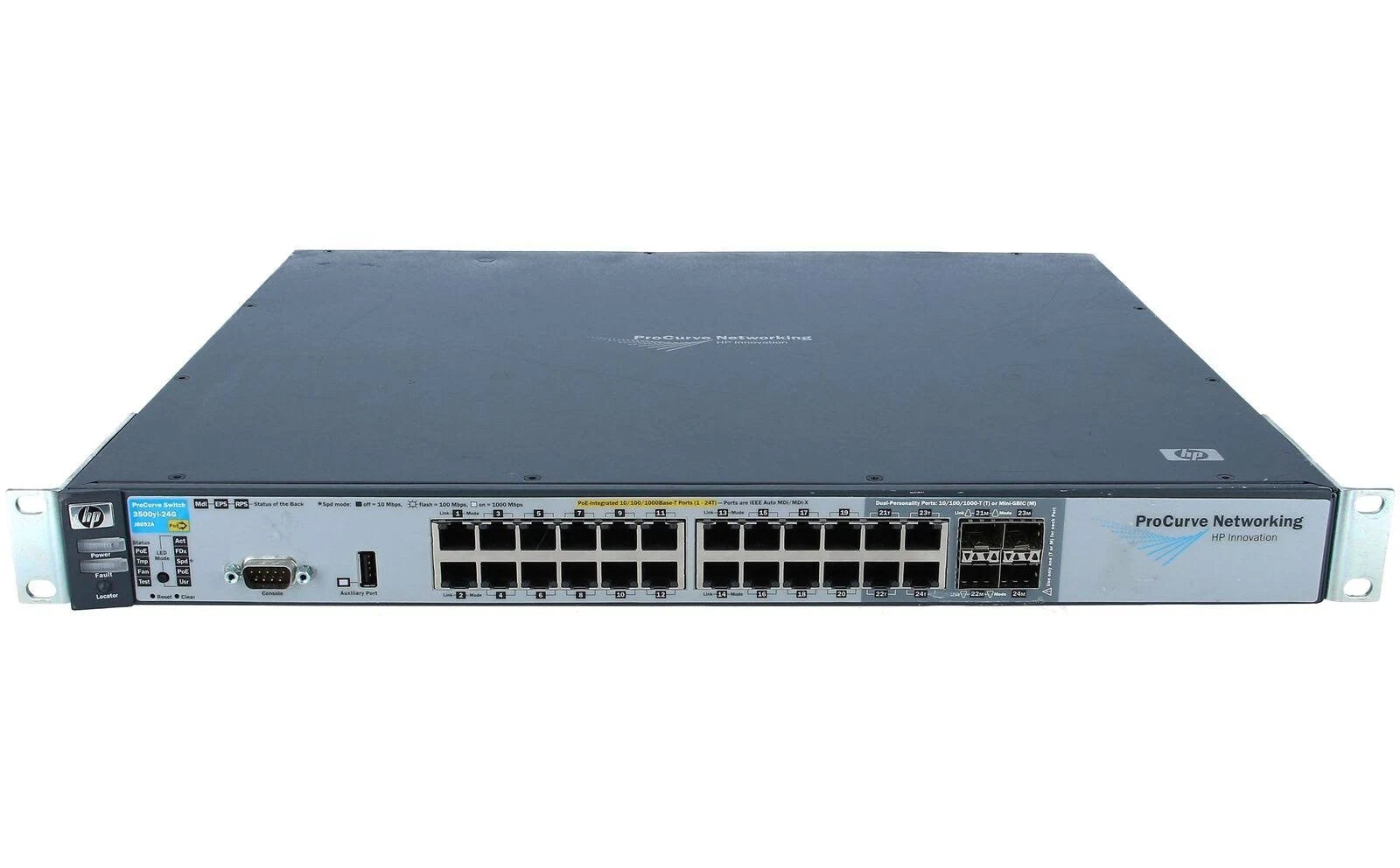

J8692A | HP Networking ProCurve 3500YL Switch
- Regular price
- $2,387.00
- Sale price
- $2,387.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: J8692A
Description
The HP J8692A is a ProCurve 3500yl-24G Layer 3 managed network switch, designed for high-performance, secure, and scalable enterprise networking.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
| Category | Telecommunications |
| Part Number | J8692A |
| Subcategory |
Telecom Switcher
|
|
Rack Mounting
|
Yes |
|
Stackable
|
Yes |
|
Form Factor
|
1U |
| Colour of Product | Silver |
| Switch Type | Managed |
| Basic Switching RJ-45 Ethernet Ports Quantity | 24 |
| MAC Address Table | 64000 entries |
| Supported Data Transfer Rates | 10/100/1000 Mbps |
| Throughput | 74000000 pps |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Packet Buffer Memory | 36 MB |
| Processor Frequency | 200 MHz |
| Memory Type | DDR-SDRAM |
| Internal Memory | 256 MB |
| Flash Memory | 4 MB |
| Input Current | 5 - 10 A |
| Input Voltage | 100-127/200-240 VAC |
| Power Consumption (typical) | 98 W |
| Operating Temperature (T-T) | 0 - 55 °C |
| Latency | 1000 Mb Latency: < 3.4 µs (FIFO 64-byte packets); 10 Gbps Latency: < 2.1 µs (FIFO 64-byte packets) |
| Input Frequency | 50 - 60 Hz |
| Dimensions (WxDxH) | 392 x 443 x 44 mm |
| Weight | 6.4 kgs |
Information About J8692A
The HP J8692A is a ProCurve 3500yl-24G Layer 3 managed switch designed for secure, high-performance networking in enterprise environments. With 24 Gigabit ports and advanced routing capabilities, it is built to support demanding applications in campus and data center access or distribution layers.
Key Features:
- Application: Designed for enterprise networks requiring robust Layer 3 switching, including routing, traffic control, and access layer connectivity in high-performance environments.
- Port Configuration: 24 × 10/100/1000Base-T Gigabit Ethernet ports; 4 × Dual-personality ports (RJ-45 or SFP-based fiber uplinks)
- Performance: Switching Capacity: 96 Gbps; Forwarding Throughput: Up to 71.4 Mpps; Low Latency: < 5 µs for high-speed data delivery; Supports static and dynamic Layer 3 routing protocols (IPv4 & IPv6)
- Management and Monitoring: Fully managed via CLI, web GUI, SNMP v1/v2c/v3; Secure remote access using SSH, HTTPS, and Telnet; Monitoring tools include sFlow, RMON, port mirroring, and event logging
- Security and QoS: Access Control Lists (ACLs); 802.1X network access control; Layer 2/3/4 QoS for traffic prioritization; Spanning Tree Protocol (STP, RSTP, MSTP) support
- Mounting Style: 1U rack-mountable form factor for efficient integration into standard server racks.
- Power and Cooling: Internal power supply; Typical Power Consumption: ~60 W; Optional redundant power supply support; Hot-swappable fan tray for uninterrupted operation
- Environmental Ratings: Operating Temperature: 0°C to 45°C; MTBF: Over 1 million hours; Compliance with industry EMC and environmental standards
- Certifications: IEEE standards (802.1p/q/s/w/x, 802.3ad); UL, CE, FCC Class A, RoHS-compliant
The HP J8692A ProCurve 3500yl-24G switch offers advanced Layer 3 functionality, flexible connectivity, and robust security features, making it an ideal solution for enterprise environments that demand performance, scalability, and reliability.
