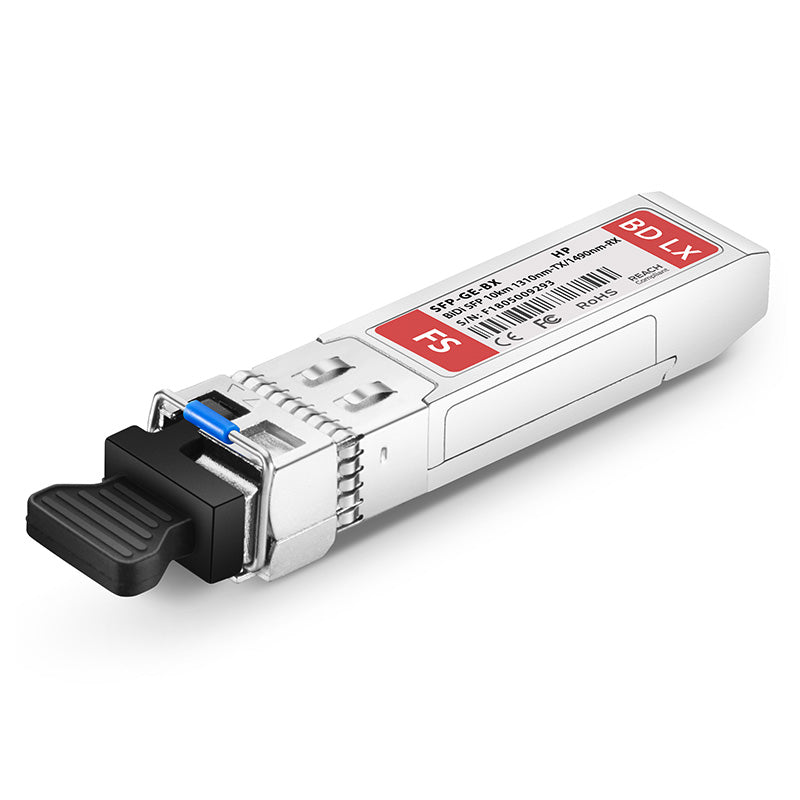

J9143B | HP Networking 1310nm/1490nm SMF LC SFP Transceiver
- Regular price
- $112.00
- Sale price
- $112.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: J9143B
Description
The J9143B is a simplex LC SFP transceiver designed for bi-directional 1G fiber communication over single-mode fiber. It operates at 1310nm TX and 1490nm RX, supporting up to 10 km transmission distance.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
| Category |
Networking
|
| Part Number | J9143B |
| Subcatecory |
Optical Transceivers
|
| Data Rate | 1.25 Gbps |
| Wavelength | 1310nm TX / 1490nm RX |
| Fiber Type | Single-Mode (SMF) |
| Connector Type | Simplex LC |
| Maximum Distance | 0.5 – 10,000 m |
| Optical Components | FP BiDi |
| Form Factor | SFP |
| TX Power | -9 to -3 dBm |
| Receiver Sensitivity | < -20 dBm |
| Temperature Range | 0°C to 70°C (32°F to 158°F) |
| Dimensions (D x W x H) | 2.19 x 0.54 x 0.46 in |
| Weight | 0.04 lb. |
Information About J9143B
The J9143B, also known as the HP X122 1G SFP LC BX-U Transceiver, is a bi-directional (BiDi) optical transceiver built for cost-effective and space-saving fiber connectivity. Designed for use with single-mode fiber (SMF), it enables full-duplex transmission over a single fiber strand by using wavelength division multiplexing (WDM)—1310nm for transmit (TX) and 1490nm for receive (RX). This makes it highly efficient for data center, enterprise, and service provider applications requiring long-distance gigabit links.
Key Features:
-
BiDi WDM Technology: Uses a single strand of fiber with 1310nm TX and 1490nm RX wavelengths for full-duplex communication.
-
Long-Range Capability: Supports distances from 0.5 to 10,000 meters over standard single-mode fiber.
-
Compact & Compatible: SFP form factor fits most HP and Aruba equipment with MSA compliance for multi-vendor flexibility.
-
Digital Diagnostics: DOM support enables real-time performance monitoring for uptime and reliability.
-
Efficient Power and Performance: Operates within a commercial temperature range of 0–70°C with stable optical performance.
The J9143B is an efficient and space-saving solution for 1G fiber links, ideal for applications demanding reliable, long-distance single-fiber connectivity.
