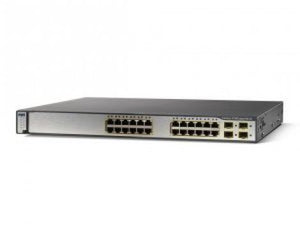

J9146A | HP Networking 24 Port POE+ Switch
- Regular price
- $2,562.00
- Sale price
- $2,562.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: J9146A
Description
The HP Networking J9146A is a high-performance 24-port Gigabit Ethernet PoE+ switch from the HP ProCurve 2910al Series. Designed for enterprise-level networks, this managed Layer 3 switch features 20 PoE-enabled ports and 4 dual-personality combo ports that support either RJ-45 or SFP uplinks.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
|
Category |
Data Control
|
|
Part Number |
J9146A |
| Subcatecory |
Interbus Modules & Hubs
|
| Series | HP ProCurve 2910al |
| Ports | 20 x 1G PoE+ RJ-45, 4 x Dual-Personality (RJ-45/SFP) |
| PoE Budget | 382W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95 Mpps |
| MAC Address Table | 16,000 entries |
| Expansion Slots | 2 (Rear) for 10GbE modules (J9008A, J9149A) |
| Management Ports | 1 x RJ-45 Console, 1 x USB |
| Power Supply | 1 x Internal AC (included), 1 x RPS Slot |
| SDRAM | 512 MB |
| Weight | 5.6 kg |
| Width | 365.8 mm |
| Depth | 442 mm |
| Height | 43.9 mm |
Information About J9146A
The J9146A is part of HP's 2910al Series, known for its flexibility, power efficiency, and scalability in mid-sized to large enterprise networks. It offers a forwarding rate of 95 million packets per second and supports a MAC address table of up to 16,000 entries, ensuring seamless network traffic management. With support for Layer 3 static routing, advanced security features, and expansion modules for 10GbE connectivity, this switch is well-suited for dynamic and growing network environments.
Key Features:
-
24-Port Gigabit Configuration: Includes 20 PoE+ RJ-45 ports and 4 dual-personality combo ports (RJ-45/SFP).
-
High PoE Budget: Delivers up to 382W total PoE power, ideal for powering IP-based devices.
-
Flexible Uplink Options: Expand with SFP or RJ-45 via combo ports, or use optional 10GbE expansion modules (sold separately).
-
High Throughput: Offers 128 Gbps switching capacity and 95 Mpps forwarding rate for fast data delivery.
-
Advanced Scalability: Supports 16,000 MAC addresses and includes 2 rear module expansion slots.
-
Integrated Management: Features a console port and USB interface for configuration and updates.
-
Power Supply Options: Comes with an internal AC power supply and a redundant power slot (RPS) for added reliability.
The HP Networking J9146A switch is ideal for organizations seeking robust PoE+ capabilities, flexible uplink options, and enterprise-grade Layer 3 switching performance in a scalable, rack-mountable design.
