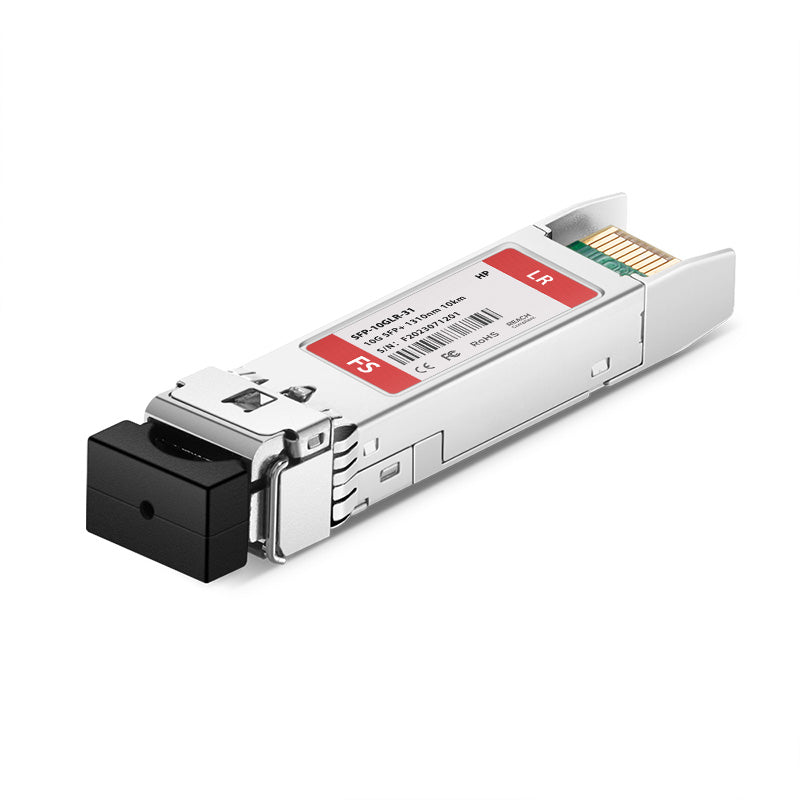

J9151A | HP Networking 10G SFP+ LC LRTransceiver
- Regular price
- $72.00
- Sale price
- $72.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: J9151A
Description
The J9151A is a high-speed 10G SFP+ LR transceiver module designed for long-range fiber connectivity. It supports full-duplex transmission up to 10 km over single-mode fiber using an LC connector.
Technical Specifications
|
Condition |
New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
| Category |
Networking
|
| Part Number | J9151A |
| Subcatecory |
Optical Transceivers
|
| Ports | 1 LC Duplex 10-GbE (Full Duplex Only) |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode (SMF) |
| Cable Type | 9/125 µm Single-Mode; ITU-T G.652; ISO/IEC 793-2 Type B1 |
| Maximum Distance | 2 m – 10 km |
| Connector Type | LC |
| Transceiver Form Factor | SFP+ |
| Power Consumption (typical) | 0.9 W |
| Dimensions (D x W x H) | 5.57 x 1.38 x 1.19 cm (2.19 x 0.54 x 0.47 in) |
| Weight | 0.02 kg(0.04 lb) |
Information About J9151A
The J9151A is a 10-Gigabit Ethernet SFP+ LR transceiver from HP Networking, built for reliable and high-performance long-distance data transmission. Compliant with IEEE 802.3ae Type 10GBASE-LR, it provides one LC duplex port for full-duplex fiber communication. Operating at a wavelength of 1310 nm, the transceiver is optimized for use with single-mode fiber (SMF) in data center, enterprise, and campus networking applications. The module supports transmission distances from 2 meters up to 10 kilometers, using standard 9/125 µm single-mode fiber in compliance with ITU-T G.652 and ISO/IEC 793-2 Type B1.
Key Features:
-
10G Long-Range Connectivity: Supports 10Gbps transmission up to 10 km on single-mode fiber using LC connectors.
-
Standard Compliance: Follows IEEE 802.3ae 10GBASE-LR standards for universal compatibility.
-
Compact SFP+ Format: Allows high port density with minimal space usage in switches and routers.
-
Energy Efficient: Typical power consumption of 0.9 W, with a maximum of only 1 W.
-
Precision Optics: Operates on a 1310 nm wavelength over ITU-T G.652 SMF for optimal signal integrity.
The J9151A is engineered for scalable, high-performance fiber networks requiring stable and long-distance 10G connections.
