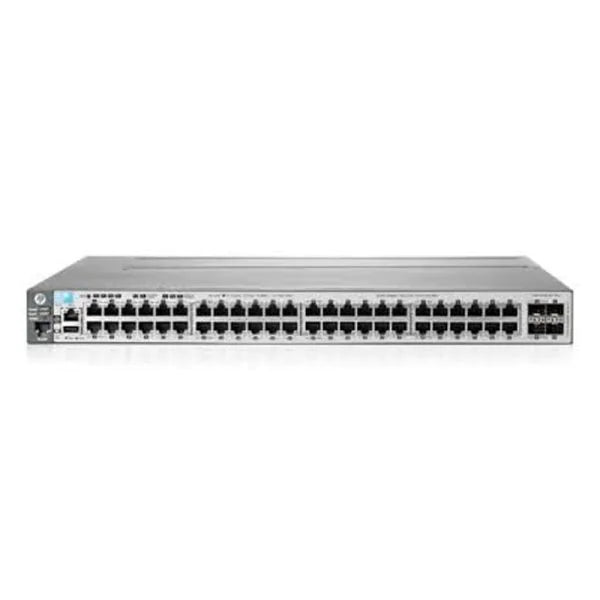

J9588A HP 3800-48G-PoE+-4XG | HPE 3800 Series 48-Port Gigabit PoE+ Switch with 4x 10GbE Uplinks (1U)
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: J9588A HP 3800-48G-PoE+-4XG
Description
The HPE J9588A HP 3800-48G-PoE+-4XG is a managed enterprise Ethernet switch built with 48 Gigabit RJ-45 PoE+ ports and four 10GbE uplink interfaces for high-density network deployments. Designed for rack-mount installation in a 1U chassis, it supports advanced switching and routing features for business and industrial network environments. The J9588A is engineered to provide high throughput, large MAC table capacity, and full PoE+ power delivery for connected devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | HPE (Hewlett Packard Enterprise) |
| Category | Network Switches |
| Part Number | J9588A |
| Subcategory | Managed Ethernet Switches |
| Series | HPE 3800 Series |
| Switch Type | Managed switch |
| Access Ports | 48 RJ-45 |
| Access Port Speed | 10/100/1000 Mbps |
| PoE Standard | IEEE 802.3at PoE+ |
| PoE Power Budget | 1080 W |
| Uplink Interfaces | 4x 10GbE |
| 10GbE Standard | IEEE 802.3an-2006 (10GBASE-T) |
| Switching Capacity | 176 Gb/s |
| Throughput | 130.9 Mpps |
| MAC Address Table Size | 65,500 entries |
| Routing Table Size | 10,000 entries |
| Console Port | 1x RJ-45 serial |
| Out-of-Band Management | 1x RJ-45 |
| Power Supply Slots | 2 (1 minimum required) |
| Included Power Supply | J9580A X312 1000 W PSU (100–240 V AC to 54 V DC) |
| Fan Tray | 1x J9582A (1 fan tray slot) |
| Idle Power Consumption | 100 W |
| Maximum Power Rating | 186 W |
| Input Voltage | 100–120 / 200–240 V AC |
| Frequency | 50/60 Hz |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Operating Humidity | 15% to 95% non-condensing |
| Form Factor | 1U rack-mount |
| Dimensions (D x W x H) | 46.74 x 44.27 x 4.32 cm (18.4 x 17.43 x 1.7 in) |
| Weight | 7.82 kg (17.24 lb) |
Information About J9588A HP 3800-48G-PoE+-4XG
The J9588A is a member of the HPE 3800 Series switching platform designed for resilient, high-performance Layer 3 networking in enterprise and infrastructure environments. It provides 48 autosensing 10/100/1000 PoE+ access ports and four 10GbE interfaces to support aggregation, uplinks, or high-bandwidth inter-switch connections. The switch includes a dedicated out-of-band management port and a serial console port for network administration and remote maintenance workflows. It supports modular field service components including a fan tray and dual power supply slots, allowing the system to be configured for redundancy and operational continuity.
Key Features:
- 48x Gigabit PoE+ Access Ports: Provides 10/100/1000 Mbps connectivity with IEEE 802.3at PoE+ support for powered endpoints.
- 4x 10GbE High-Speed Interfaces: Includes 10-GbE connectivity for backbone uplinks and high-throughput links.
- High Switching Capacity: Supports up to 176 Gb/s switching capacity for dense traffic environments.
- High Packet Forwarding Performance: Rated up to 130.9 Mpps throughput (64-byte packets).
- Large MAC Address Table: Supports up to 65,500 MAC entries for large networks.
- Layer 3 Routing Capability: Supports routing functions and a routing table capacity of 10,000 entries.
- Redundant Power Architecture: Dual PSU slots support redundant power supply configurations (one minimum required).
- Rack-Mount 1U Form Factor: Designed for standard 19-inch racks with a 1U chassis height.
The J9588A delivers the reliability and precision required for high-density PoE+ access switching with 10GbE uplink connectivity in enterprise networks.
