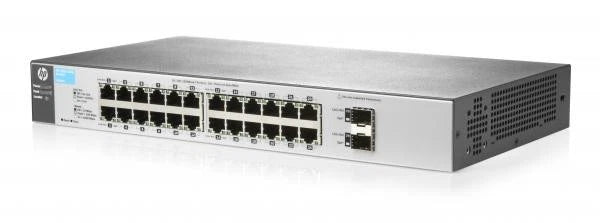

J9803A | HP Networking V2 Switch
- Regular price
- $549.00
- Sale price
- $549.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: J9803A
Description
The HP J9803A (also known as the HP 2530-48G-PoE+ Switch) is a fully managed Layer 2 Gigabit Ethernet switch designed for enterprise edge, branch office, and SMB deployments.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | HP Networking |
| Category |
Networking Equipment
|
| Part Number | J9803A |
| Subcatecory |
Smart-Managed Gigabit Ethernet Switches (Layer 2)
|
| Rack Mounting | Yes |
| Stackable | Yes |
| Form Factor | 1U |
| Switch Type |
Managed
|
| Switch Layer | L2 |
| Quality of Service (QoS) Support |
Yes
|
| Web-based Management |
Yes
|
| Basic Switching RJ-45 Ethernet Ports Quantity |
24
|
| Gigabit Ethernet (copper) Ports Quantity | 24 |
| SFP Module Slots Quantity |
2
|
| SFP/SFP+ Slots Quantity |
2
|
| Number of VLANs |
64
|
| MAC Address Table |
8000 entries
|
| Supported Data Transfer Rates |
10/100/1000 Mbit/s
|
| Switching Capacity |
52 Gbit/s
|
| Throughput | 38.7 Mpps |
| Number of Trunks |
8
|
| Number of Queues |
4
|
| Maximum Data Transfer Rate |
1 Gbit/s
|
| Packet Buffer Memory |
0.5 MB
|
| Switching Protocols |
Ethernet
|
| Internal Memory |
128 MB
|
| Flash Memory |
8 MB
|
| AC Input Voltage |
100 - 240 V
|
| AC Input Frequency |
50 - 60 Hz
|
| Input Current |
0.3 - 0.4 A
|
| Power Consumption (typical) |
22 W
|
| Operating Temperature |
0 - 40 °C
|
| Storage Temperature |
-40 - 70 °C
|
| Operating Relative Humidity |
15 - 95%
|
| Operating Altitude |
0 - 3000 m
|
| Width |
329.9 mm
|
| Depth |
173 mm
|
| Height |
43.9 mm
|
| Weight |
1.15 kgs
|
| Latency |
3.3 µs, 2.2 µs
|
Information About J9803A
The HP J9803A is a smart-managed Layer 2 Gigabit switch from the HP 1810 v2 Series, tailored for small to medium-sized businesses seeking reliable and silent network performance. With 24 Gigabit ports, fanless operation, and energy-efficient features, this switch delivers cost-effective scalability and simplified web-based management in noise-sensitive office or branch environments.
Key Features:
- Ethernet Ports: 24 × 10/100/1000 Mbps auto-sensing RJ-45 ports
- Uplink Interfaces: 2 × dedicated Gigabit SFP ports for fiber uplinks
- Power over Ethernet (PoE): Not supported
- Stacking: Not stackable
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.6 Mpps
- Memory: Not specified (web-managed device with embedded firmware)
- Security Features: IEEE 802.1X access control, VLANs, DoS protection, MAC-based access control
- Energy Efficiency: Energy Efficient Ethernet (IEEE 802.3az), idle-port power down
- Management: Web-based GUI for simplified configuration; no CLI or SNMP
- Software: Embedded smart-managed firmware (no full-featured OS like Cisco IOS)
- Redundancy: Single internal power supply; no external RPS support
- Form Factor: Desktop or rack-mountable (1U with included brackets)
- Dimensions: 1.73 x 17.42 x 6.81 inches (4.4 x 44.25 x 17.3 cm)
- Weight: Approx. 5.1 lbs (2.3 kg)
- Operating Range: 0°C to 45°C; 15% to 95% humidity (non-condensing)
This switch is ideal for businesses that require a quiet, compact, and easy-to-manage Gigabit Ethernet solution without the complexity of CLI-based administration. It's particularly suited for branch offices, conference rooms, and other areas where silent operation and reliability are priorities.
