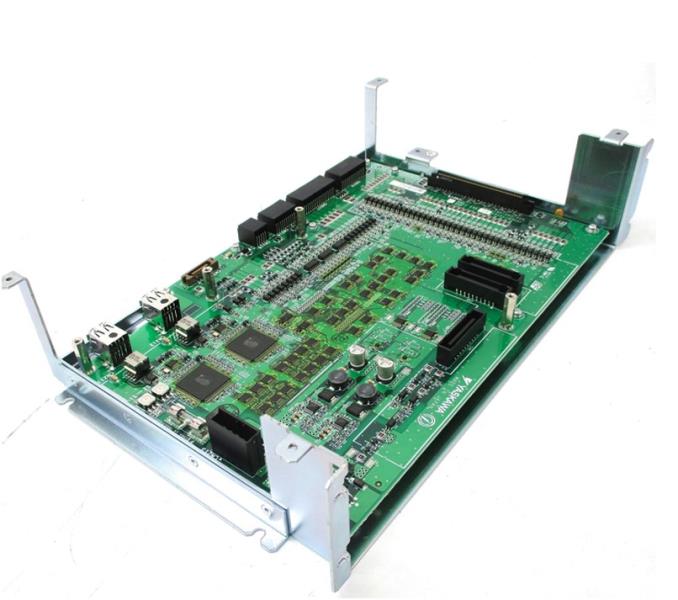

JANCD-YSF22B-E | Yaskawa Electric PC Board for DX200, Safety & I/O Logic Control
- Regular price
- $2,849.00
- Sale price
- $2,849.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JANCD-YSF22B-E
Description
The Yaskawa JANCD-YSF22B-E is an advanced control circuit board designed to support machine safety and I/O logic processing within the DX200 Robot Controller system. This high-performance board ensures seamless integration and optimal function in automated environments requiring precision and system integrity. With robust electronic design and reliable processing capabilities, the JANCD-YSF22B-E plays a critical role in maintaining smooth robotic operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Yaskawa |
| Category | PLCs/Machine Control |
| Part Number | JANCD-YSF22B-E |
| Subcategory | PC Board PLC/Add-On Board |
| Compatibility | Yaskawa DX200 Robot Controller |
| Alternate Names | JANCD-YSF22B-E (REV.C01) |
| Function | Machine safety and I/O logic management |
| Input/Output Support | Integrated logic signal processing |
| Processor | High-speed microcontroller for motion control |
| Communication Interfaces | PLC, HMI, sensor/actuator-compatible |
| Motion Monitoring | Real-time speed, position, and torque feedback |
| Installation | Direct fit into DX200 controller system |
| Enclosure Requirement | Internal PCB mounting within DX200 chassis |
| Hazardous Item | No |
| Packaged Weight | 3.14 lb |
| Packaged Dimensions | 11" (L) × 15.4" (W) × 4.9" (H) |
| Actual Weight | 2.01 lb |
Information About JANCD-YSF22B-E
The JANCD-YSF22B-E is a PC board specifically engineered by Yaskawa for the DX200 robot controller platform, serving as a key component in logic and safety management. This unit provides enhanced real-time control functions such as monitoring position, torque, and motion parameters, making it ideal for complex robotic tasks. Built-in communication interfaces allow integration with PLCs, HMIs, and sensor networks, enabling responsive and safe system operation. It’s especially suited for Motoman robots and is known for its reliable performance in demanding industrial environments.
Key Features:
- Designed for DX200 Controller: Fully compatible with Yaskawa DX200 robot controllers for seamless system integration.
- Integrated I/O Logic Control: Manages input/output processing for real-time operation and machine interaction.
- Enhanced Safety Functions: Supports machine safety protocols through dedicated circuitry and control logic.
- Advanced Motion Support: Enables precise control over robot speed, torque, and positioning.
- Robust Data Communication: Features built-in interfaces for PLC, HMI, and sensor connectivity.
- Industrial-Grade PCB Design: Engineered for durability and reliability in high-demand environments.
- Error Correction Algorithms: Includes hardware-level support for motion trajectory corrections and diagnostics.
- Compact Form Factor: Efficiently designed to fit within standard controller chassis without additional mounting hardware.
The JANCD-YSF22B-E delivers the reliability and precision required for intelligent control within robotic automation systems.
