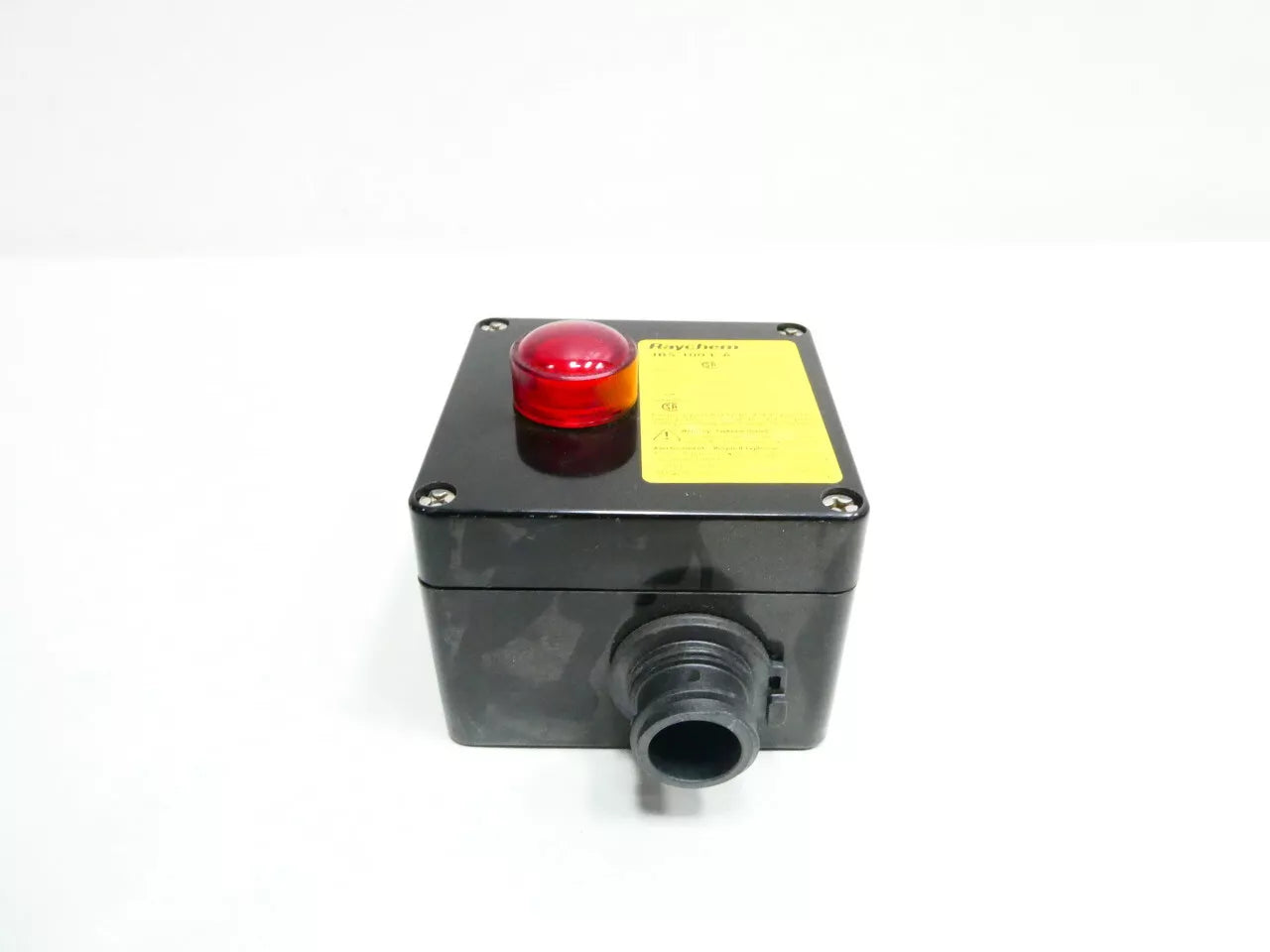

JBS-100-L-A | Raychem Power Connection Kit
- Regular price
- $385.00
- Sale price
- $385.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JBS-100-L-A
Description
The Raychem JBS-100-L-A Power Connection Kit is a junction box system designed for connecting self-regulating and power-limiting heating cables in industrial and commercial applications. It supports up to 277V AC operation and is rated for 50A current.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Raychem |
| Category |
Electrical Distribution
|
| Part Number | JBS-100-L-A |
| Subcategory | Electrical Power Outlets |
|
Weight |
1.56 kgs |
|
Material |
Glass-Filled Engineered Polymer |
|
Entry Type |
Single Entry |
|
Indicator |
Red Light Indicator |
|
Enclosure Type |
Junction Box |
|
Voltage Rating |
277 VAC |
|
Current Rating |
50 A |
|
Wire Size |
8 AWG Stranded |
|
Conduit Entry Size |
1 x 3/4 in Entry |
|
Operating Temperature Range |
-50 to 40 °C |
|
Number of Lines |
2 |
Information About JBS-100-L-A
The Raychem JBS-100-L-A is a single-entry power connection kit designed to connect power to one Raychem BTV, QTVR, XTV, KTV, or VPL industrial parallel heating cable. This kit is approved by FM, CSA, and PTB for use in hazardous locations.
Key Features:
-
Integrated Functions: Combines the roles of connection kits and insulation entries, with a rugged stand that protects the heating cable and allows for up to 100 mm (4 inches) of thermal insulation.
-
Core Sealing Boot: Does not require a heat gun or torch for installation, eliminating the need for a hot work permit. The non-curing, silicone-free sealant in the boot facilitates easy installation and maintenance.
-
CAGE CLAMP® Terminals: Utilizes WAGO 284 series terminals, providing fast installation and safe, reliable, maintenance-free operation, significantly reducing installation time compared to existing systems.
-
Light Module: The "-L" designation indicates the inclusion of a light module with a superbright LED that plugs into the terminals and a lens in the lid, providing an indication that power is available in the box.
The JBS-100-L-A kit is specifically designed for use in North America and has one through-hole for use with 3/4" conduit.
