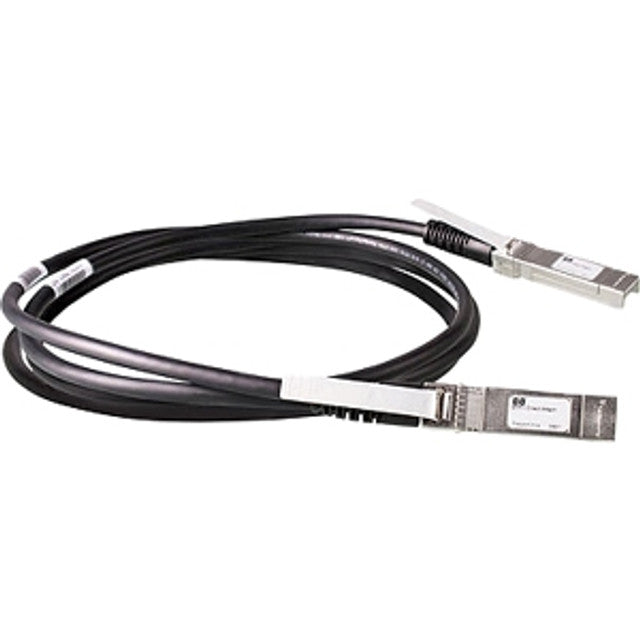

JD097C | HP Networking SFP+ Twinax Cable

Description

The HP JD097C is a 10-Gigabit SFP+ Direct Attach Copper (DAC) Twinax Cable, designed for high-speed, short-distance connections between HP networking devices.

Technical Specifications

Information About JD097C

The HP JD097C is a 10-Gigabit SFP+ Direct Attach Copper (DAC) Twinax cable designed for high-speed, short-distance connections in data center and enterprise networking environments. With passive transmission and SFP+ connectors on both ends, it offers a cost-effective and energy-efficient solution for linking switches, servers, and storage within or across adjacent racks. Its plug-and-play design and broad compatibility with HP and industry-standard equipment make it an excellent choice for top-of-rack or interconnect applications.

Key Features:

• Cable Type: SFP+ to SFP+ Direct Attach Copper (DAC) Twinax

• Data Rate: Up to 10 Gbps

• Length: 3 meters (9.84 feet)

• Wire Gauge: 30 AWG

• Power Consumption: ≤ 0.1W (passive cable)

• Minimum Bend Radius: 23 mm

• Compliance: IEEE 802.3, SFF-8431, RoHS

• Operating Temperature: 0°C to 70°C; 10% to 85% humidity (non-condensing)

• Connector Type: SFP+ on both ends

• Compatibility: HPE FlexNetwork, FlexFabric, OfficeConnect 1950, 5500/5800/5900/7500/9500 series switches; MSA-compliant devices

• Applications: 10G Ethernet, Fibre Channel, InfiniBand

This cable is ideal for short-range 10G connections in data centers, particularly for top-of-rack switch links, server interconnects, and storage networks. The JD097C offers a plug-and-play, low-latency solution with reduced power consumption—perfect for scalable, high-performance deployments.
