JD3250F | Eaton Series C Molded Case Circuit Breaker Frame
- Regular price
- $447.00
- Sale price
- $447.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

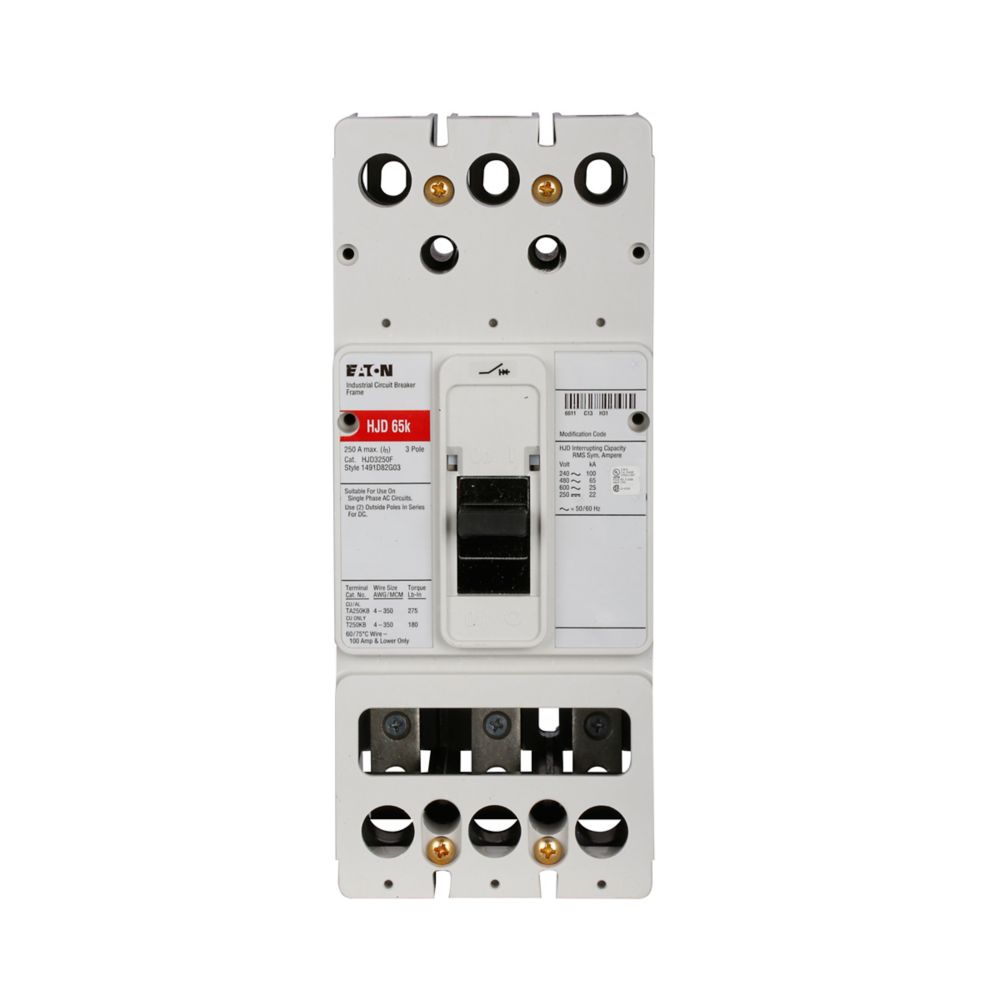

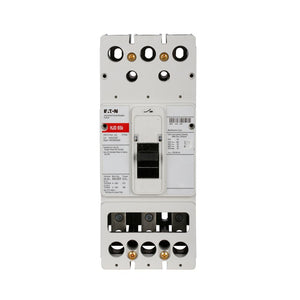

Product Description P/N: JD3250F
Description
The JD3250F is an Eaton Series C molded case circuit breaker frame, specifically the J-frame molded case circuit breaker frame, designed to accommodate JD series breakers. It has a current rating of 250 A and is configured with three poles. The breaker features a non-interchangeable thermal magnetic trip mechanism, providing reliable overcurrent protection.
Technical Specifications
|
Product Name |
Eaton Series C molded case circuit breaker frame |
|
Catalog Number |
JD3250F |
|
UPC |
786679516379 |
|
Product Length/Depth |
4.06 in |
|
Product Height |
4.13 in |
|
Product Width |
4.13 in |
|
Product Weight |
9.55 lb |
|
Type |
Frame only |
|
Amperage Rating |
250 A |
|
Voltage Rating |
600 Vac, 250 Vdc |
|
Trip Type |
Fixed thermal, fixed magnetic |
|
Circuit Breaker Type |
JD |
|
Circuit Breaker Frame Type |
Frame only |
|
Series |
Series C |
|
Frame |
J |
|
Frequency Rating |
50 to 60 Hz |
|
Interrupt Rating |
65 kAIC at 240 Vac, 35 kAIC at 480 Vac |
|
Number of Poles |
Three-pole |
Information About JD3250F
The JD3250F is a molded case circuit breaker frame manufactured by Eaton as part of the Series C lineup. It is specifically categorized as a J-frame molded case circuit breaker frame, designed to accommodate JD series breakers. The frame has a current rating of 250 A and is configured with three poles, suitable for a range of industrial applications requiring three-phase power distribution.
Key technical specifications of the JD3250F include a non-interchangeable thermal magnetic trip mechanism. This trip mechanism ensures reliable overcurrent protection by combining fixed thermal and fixed magnetic trip characteristics. It is designed to respond to both sustained overloads and short-circuit faults, interrupting the electrical circuit when necessary to prevent damage to equipment and ensure personnel safety.
The JD3250F is part of the Series C product line, known for its robust construction and high-performance capabilities. The frame is engineered to withstand the rigors of industrial environments, providing dependable operation even in demanding conditions.
