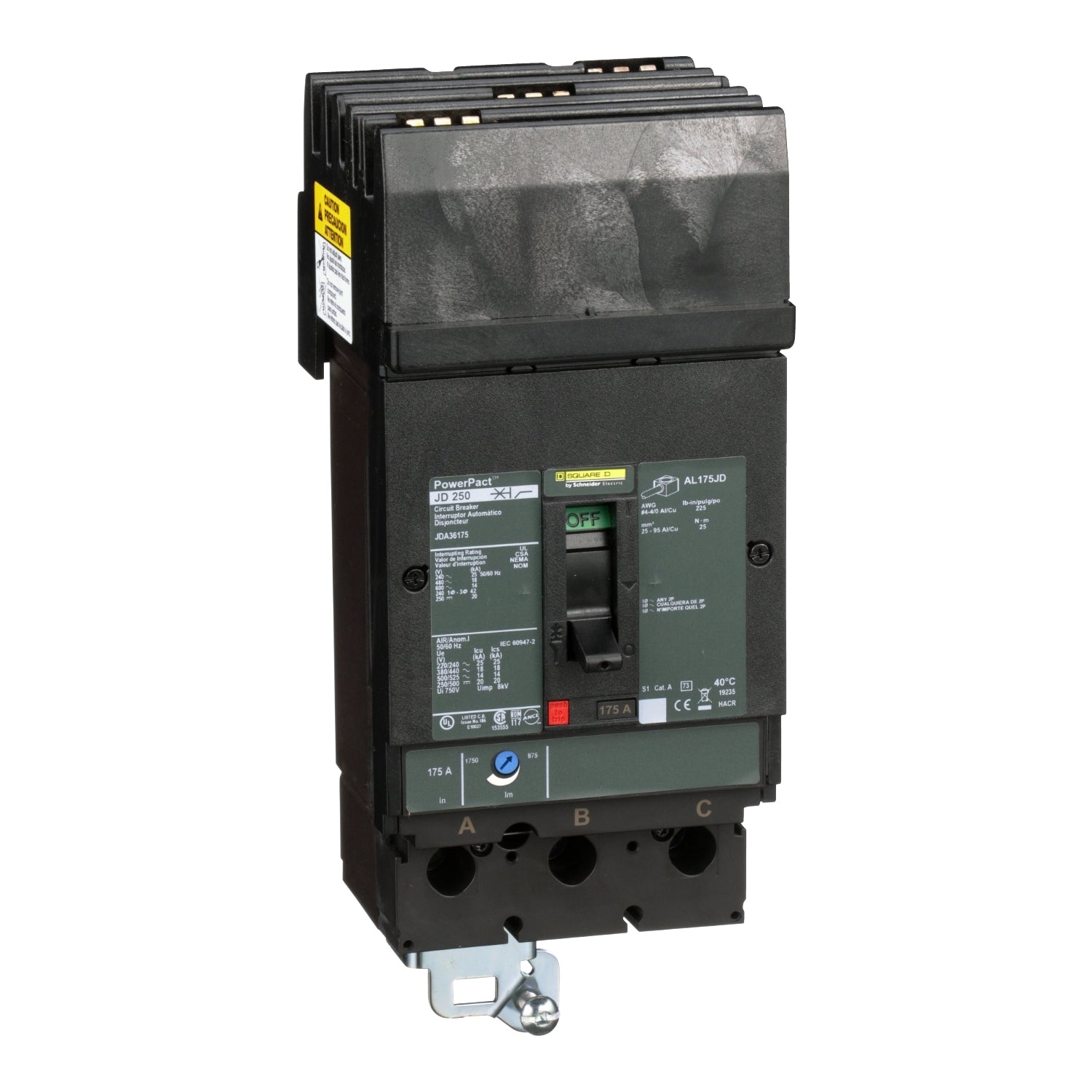

Part #: JDA36175 Manufactured by: Schneider Electric
Regular price
$1,312.00
Sale price
$1,312.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The JDA36175 is a 175A, 3-pole circuit breaker from Schneider Electric's PowerPacT J series, designed for reliable protect...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: JDA36175
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: JDA36175

Description / Specifications

Description


The JDA36175 is a PowerPacT J-Frame circuit breaker designed to safeguard electrical systems from damage caused by overloads and short circuits. Available with thermal magnetic protection, it features a robust breaking capacity of 14kA at 600VAC. Equipped with dual-break rotating contacts, it effectively reduces peak current during short circuit faults.

This circuit breaker includes an integral push-to-trip button for manual tripping, enhancing operational flexibility. It is available in 3-pole configuration and is suitable for both unit mount and I-Line installations. Specifically, the I-Line construction facilitates easy installation and removal in I-Line applications, featuring I-Line terminations on the line side and mechanical lugs on the load side.





Technical Specifications

Part #

JDA36175

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Line Rated Current

175 A

Number of Poles

3P

Control Type

Toggle

Breaking capacity code

D

[Ue] rated operational voltage

600 V AC 50/60 Hz IEC 60947-3

Network Frequency

50/60 Hz

[Ics] rated service breaking capacity

25 kA 220/240 V AC 50/60 Hz IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV IEC 60947-2

Trip unit technology

Thermal-magnetic

Magnetic tripping current

1750 A

Magnetic hold current

875 A

Continuous current rating

80 %

[Ui] rated insulation voltage

750 V IEC 60947-2

Suitability for isolation

Yes IEC 60947-2

Utilisation category

Category A

AWG gauge

AWG 4...AWG 4/0 aluminium/copper terminal

Local signalling

Switched off (OFF) 1 trip indicator green)

Mounting mode

I-Line bracket)

Mounting Support

Bracket

Terminal identifier

AL175JD

Long time pick-up adjustment range

0.25...1 x In

Mounting Height

4.5 in (114.30 mm)

Tightening torque

221.27 lbf.in (25 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0)

Power wire stripping length

0.98 in (25 mm)

Height

7.52 in (191 mm)

Width

4.09 in (104 mm)

Depth

3.39 in (86 mm)

Net Weight

5.29 lb(US) (2.4 kg)

Phase connection

ABC

Communication interface

Modbus

Circuit breaker application

HACR rated





Information About JDA36175

The JDA36175 is a PowerPacT J-Frame circuit breaker designed to provide robust protection against overloads and short circuits in electrical systems. Manufactured by Schneider Electric, these circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. The JDA36175 specifically offers thermal magnetic circuit protection with a substantial breaking capacity of 14kA at 600VAC.

Key features of the PowerPacT J-Frame circuit breakers include dual-break rotating contacts that effectively reduce peak current during short circuit faults. Each unit is equipped with an integral push-to-trip button integrated into the cover for manual tripping convenience.

Designed for versatility, PowerPacT J circuit breakers are available in 2 and 3-pole configurations, suitable for both unit mount and I-Line constructions. The I-Line variant, such as the JDA36175, is tailored for easy installation and removal in I-Line applications, featuring I-Line terminations on the line side and mechanical lugs on the load side.
