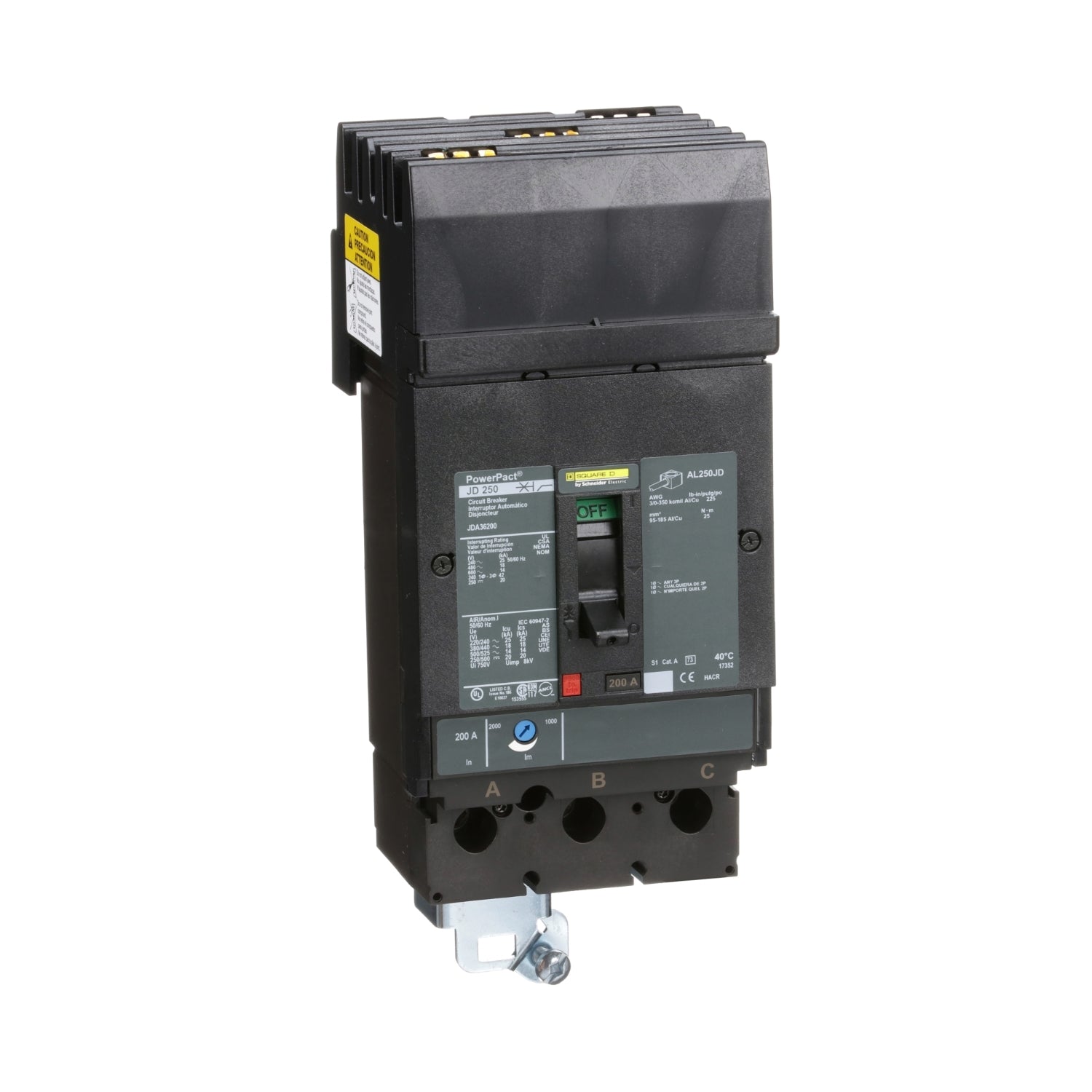

Product Description P/N: JDA36200
Description
The JDA36200 Circuit Breaker, part of the PowerPacT J series, is designed to safeguard electrical systems against damage from overloads and short circuits. Available with either thermal magnetic or MicroLogic electronic trip protection units, this circuit breaker offers reliable circuit protection.
Featuring thermal magnetic circuit protection, this PowerPacT J-Frame circuit breaker has a breaking capacity of 14kA at 600VAC. Equipped with dual-break rotating contacts, it effectively reduces peak current during short circuit faults.
Technical Specifications
|
Part # |
JDA36200 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact J |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
200 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
D |
|
Rated Operational Voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2000 A |
|
Magnetic Hold Current |
1000 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 3/0...350 kcmil aluminium/copper |
|
Terminals |
AL250JD |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection (line), Lugs (load) |
|
Terminal Identifier |
AL250JD |
|
Long Time Pick-up Adjustment Range |
0.25...1 x In |
|
Mounting Height |
4.5 in (114.30 mm) |
Information About JDA36200
The JDA36200 is a Circuit Breaker belonging to the PowerPacT J series, featuring a current rating of 200A and three poles. It operates at a voltage of 600VAC with a breaking capacity of 14kA. This circuit breaker utilizes thermal magnetic protection, offering efficient safeguarding against overloads and short circuits.
Designed to provide reliable protection for electrical systems, PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. Equipped with dual-break rotating contacts, these circuit breakers minimize peak current during short circuit faults, ensuring enhanced safety.
All PowerPacT J-Frame circuit breakers feature an integral push-to-trip button in the cover, allowing for manual tripping when necessary. Available in both 2 and 3-pole unit mount configurations, as well as I-Line constructions, they offer versatility in installation options. The I-Line circuit breakers are specifically designed for easy installation and removal in I-Line applications, featuring I-Line terminations on the line side and mechanical lugs on the load side.
