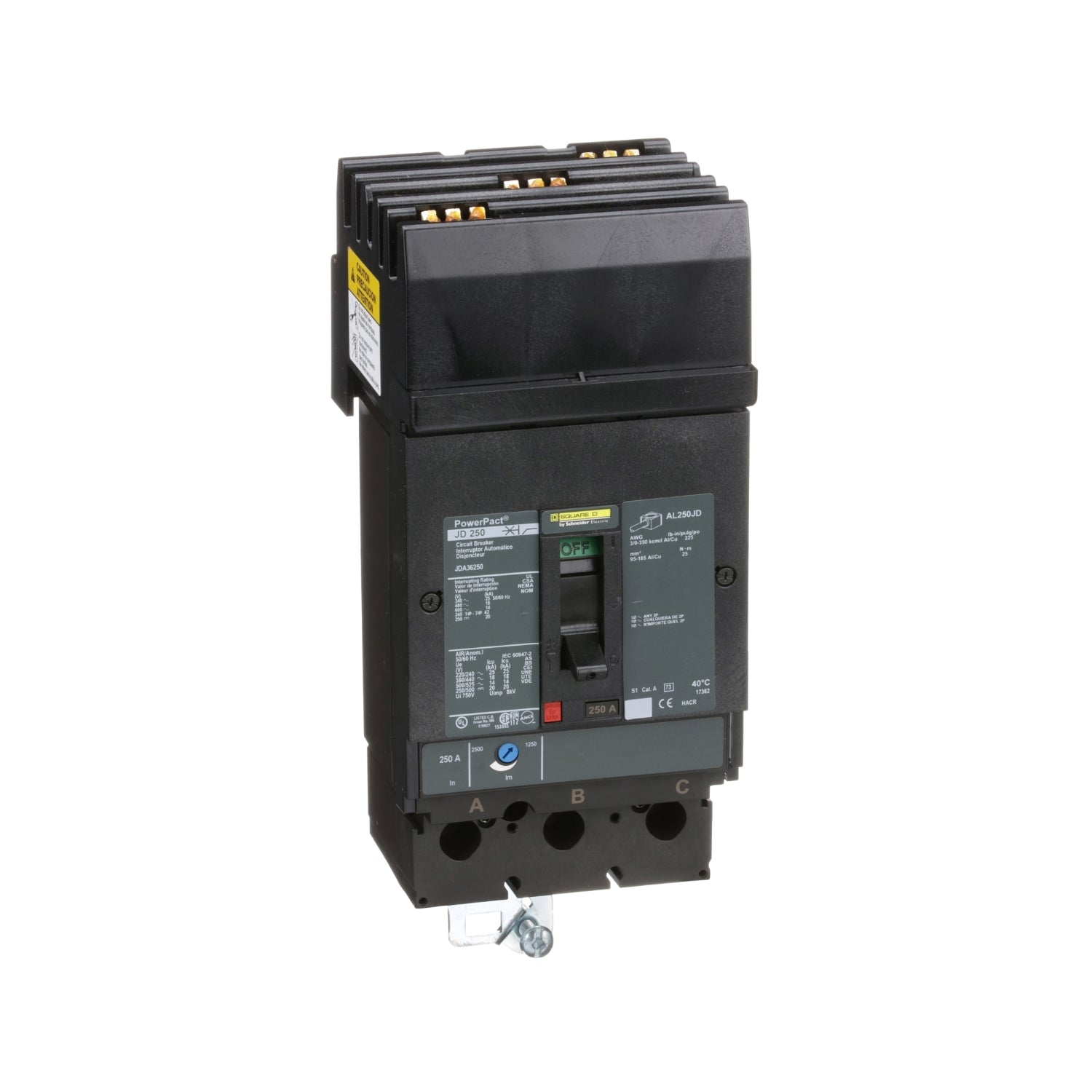

JDA36250 | Schneider Electric Circuit Breaker
- Regular price
- $1,695.00
- Sale price
- $1,695.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JDA36250
Description
This product is a circuit breakers are part of the powerpact jd-frame circuit breaker line from schneider electric these circuit breakers are for use with I-line panelboards and provide overload and short circuit protection.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | JDA36250 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | JDA |
| Voltage | 600 |
| Amperage | 250 |
| Phase | 3 |
| Functions | LI - Long-Time and Instantaneous |
| Frame Type | J Frame |
| Protection | Thermal Magnetic |
| AIC Rating | 18kA@480V |
| Poles | 3 |
| Connection | I-Line Style Plug-In |
Information About JDA36250
The JDA36250 Schneider Electric Circuit Breaker is a high-capacity, reliable protection device designed for demanding industrial and commercial applications. As part of the Powerpact family, this breaker ensures superior performance and safety for managing substantial electrical loads.
Operating at a voltage of 600V and an amperage of 250A, the JDA36250 is ideal for three-phase systems, providing effective power distribution and robust circuit protection. Its three-pole configuration ensures balanced power management across all phases.
The circuit breaker employs a Thermal Magnetic protection mechanism, combining thermal protection for long-time overload conditions and magnetic protection for instantaneous short-circuit response. This dual protection ensures comprehensive safeguarding of electrical circuits. With an interrupting capacity (AIC) of 18kA at 480V, the JDA36250 is capable of handling significant fault currents, providing robust protection against electrical faults.
Designed for ease of installation and maintenance, the JDA36250 features an I-Line Style Plug-In connection, facilitating quick and secure integration into I-Line panelboards and busway systems. The J Frame type enhances its durability and reliability, making it suitable for harsh and demanding environments.
The primary functions of the JDA36250 include Long-Time and Instantaneous protection, ensuring continuous operation under normal conditions and rapid disconnection during fault conditions to prevent damage and enhance safety.
Overall, the JDA36250 Schneider Electric Circuit Breaker is a dependable and efficient solution for protecting electrical circuits from overloads and short circuits. Its high amperage rating, robust protection features, and reliable performance make it an ideal choice for various industrial and commercial applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
