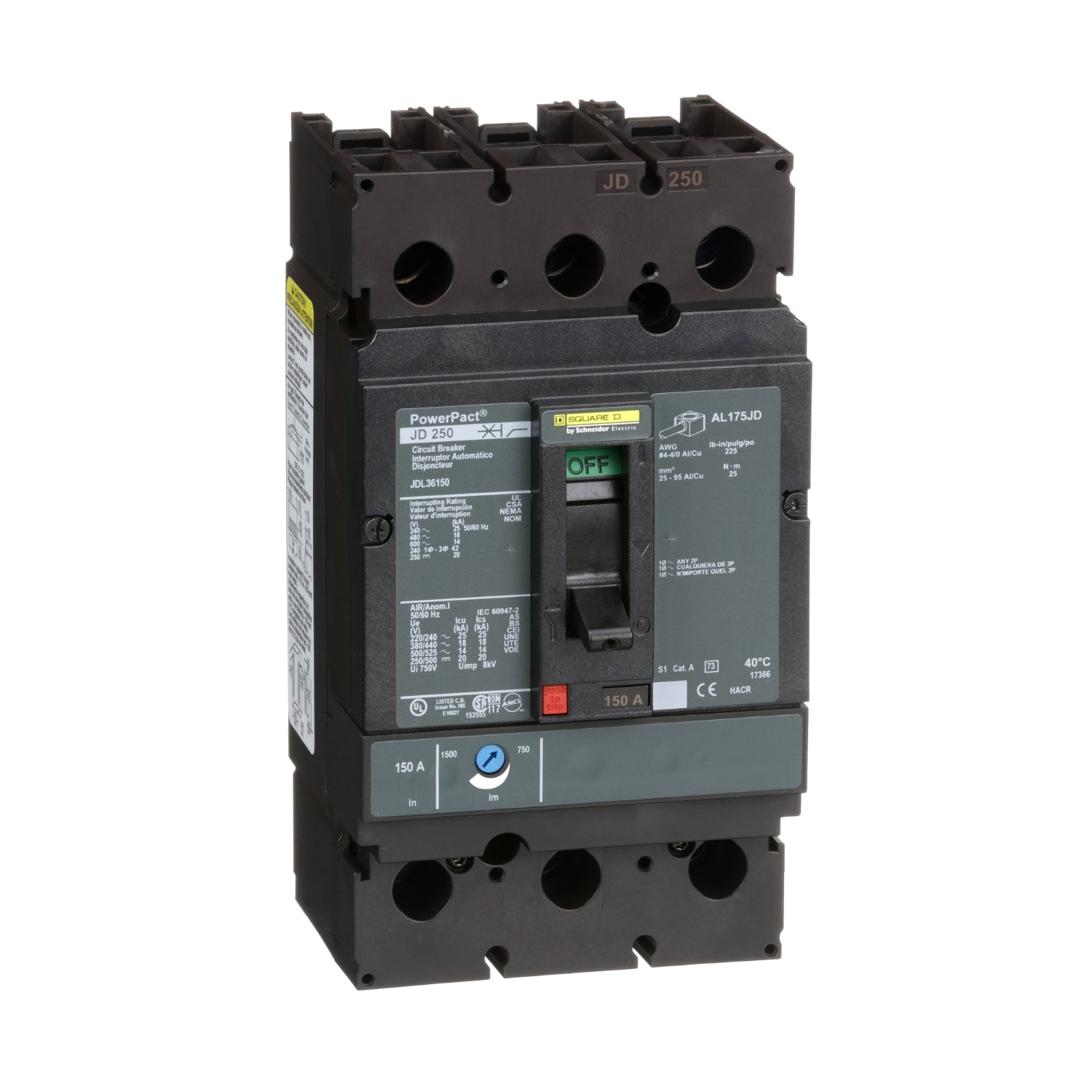

JDL36150 | Schneider Electric Circuit Breaker
- Regular price
- $784.00
- Sale price
- $784.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JDL36150
Description
The JDL36150 from Schneider Electric's Powerpact series is a robust molded case circuit breaker designed for industrial applications requiring reliable electrical protection. It belongs to the J Frame series and is configured with three poles, suitable for three-phase systems.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | JDL36150 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | JDL |
| Voltage | 600 |
| Amperage | 150 |
| Protection | Thermal Magnetic |
| Poles | 3 |
| Frame Type | J Frame |
| Phase | 3 |
| Functions | LI - Long-Time and Instantaneous |
| AIC Rating | 18kA@480V |
| Connection | Feed-Thru |
Information About JDL36150
The JDL36150 by Schneider Electric is a high-performance molded case circuit breaker from the Powerpact series, engineered for robust electrical protection in industrial applications. It features a J Frame design with three poles, making it suitable for three-phase systems operating at 600 volts.
With a current rating of 150 amps, the JDL36150 is designed to manage substantial electrical loads effectively. It incorporates a Thermal Magnetic protection mechanism, providing both Long-Time (LI) and Instantaneous trip functions. This ensures comprehensive protection against overloads and short circuits, enhancing the reliability of electrical systems.
The circuit breaker boasts an impressive interrupting capacity (AIC) of 18kA at 480V, enabling it to safely interrupt faults and protect circuits from damage, even under high fault conditions.
Designed for Feed-Thru connection, the JDL36150 offers versatility in installation, allowing it to be used as a feeder breaker or main breaker in electrical panels or distribution systems. This flexibility makes it suitable for various industrial applications where reliable circuit protection and operational integrity are critical.
Constructed with durable materials and featuring a robust molded case, the JDL36150 ensures longevity and reliability in challenging industrial environments. It meets the stringent safety and performance standards required for industrial circuit breakers, making it an ideal choice for applications that demand dependable electrical protection.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
