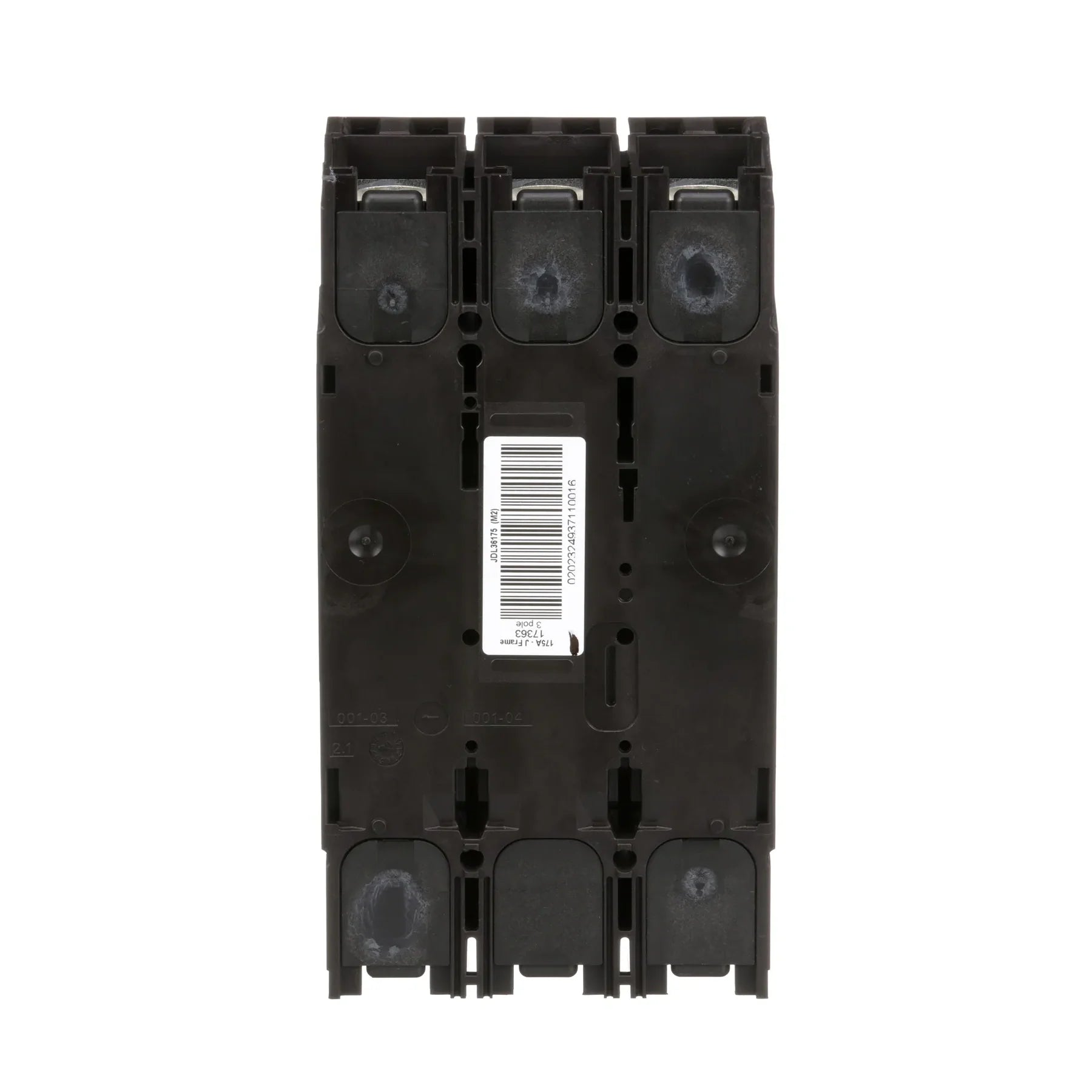

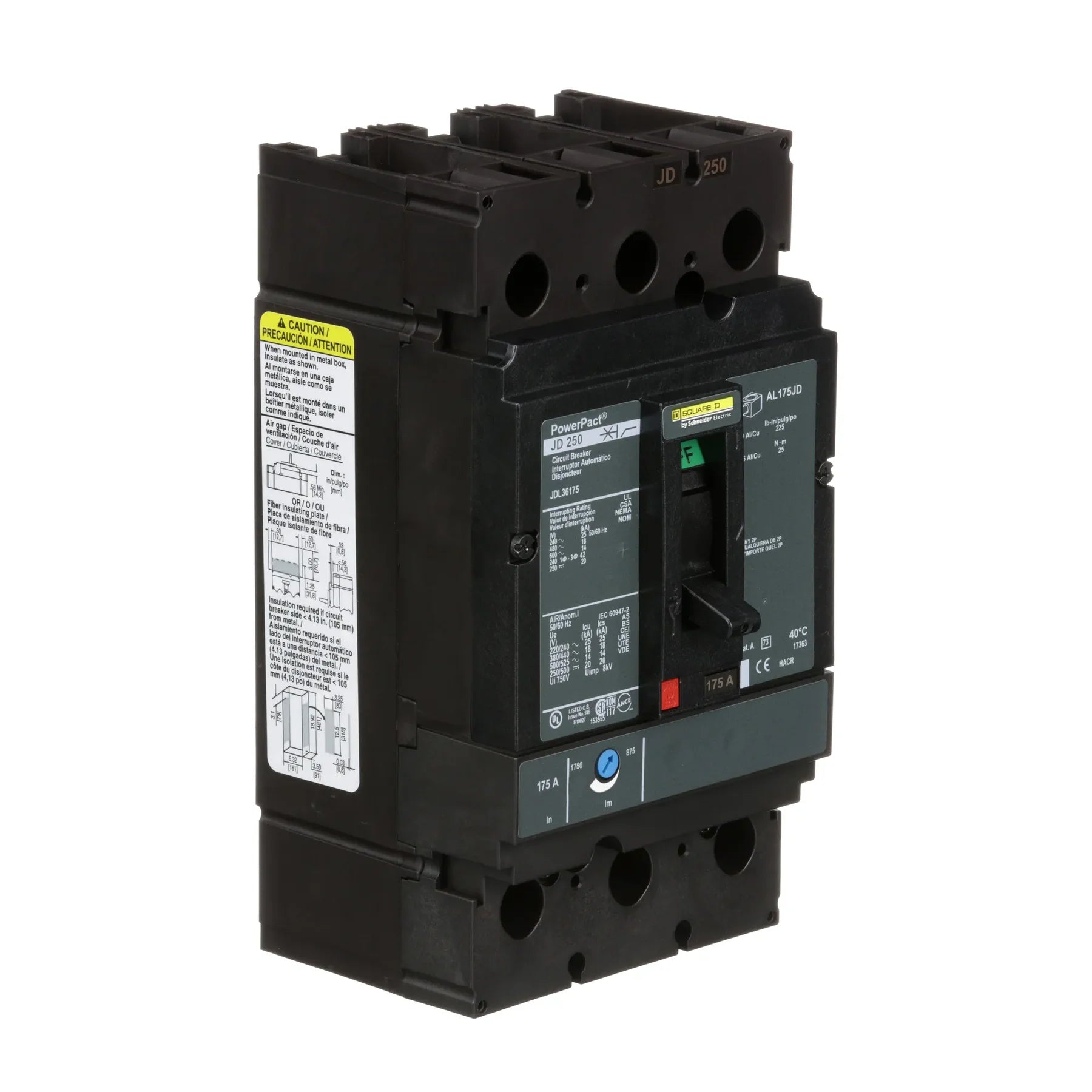

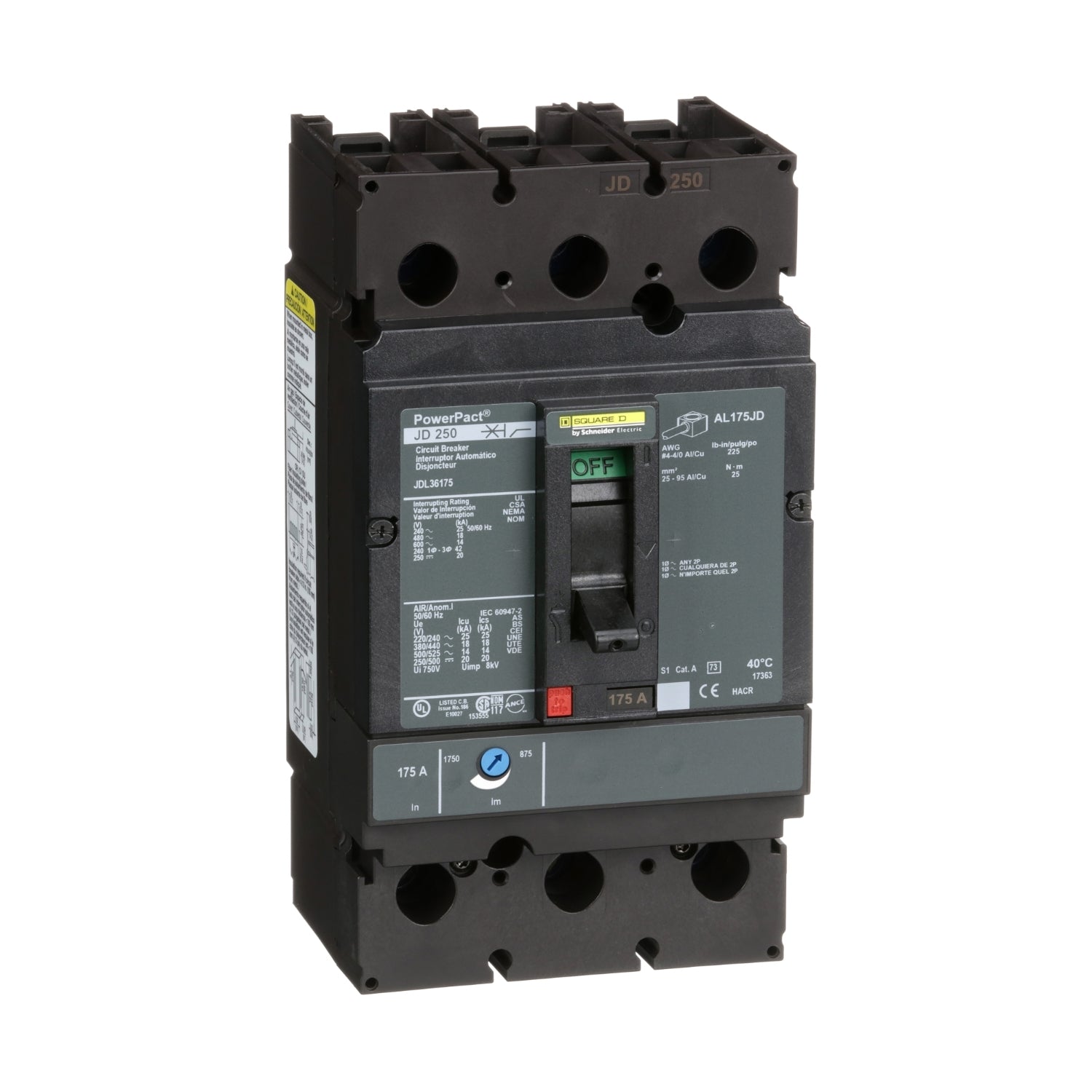

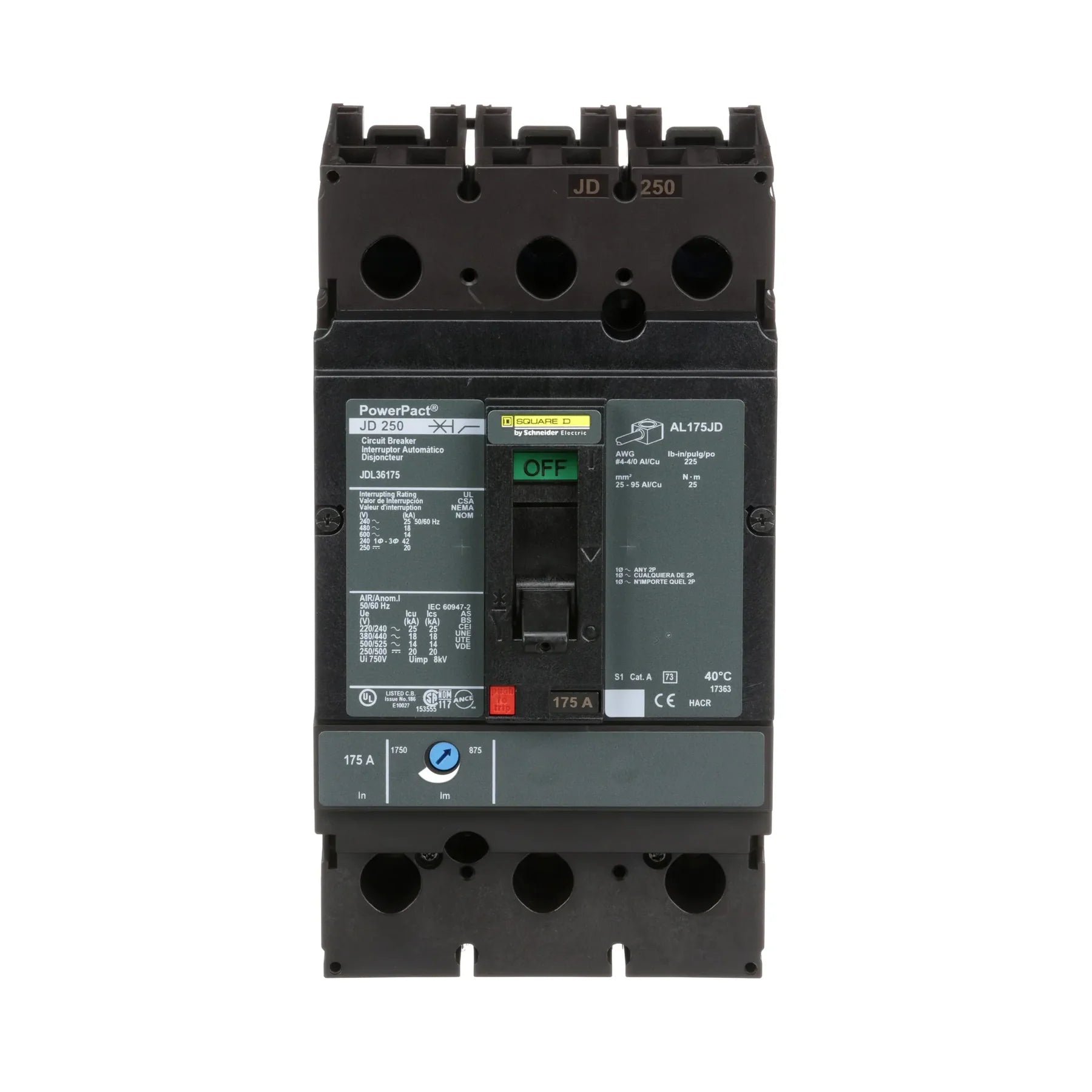

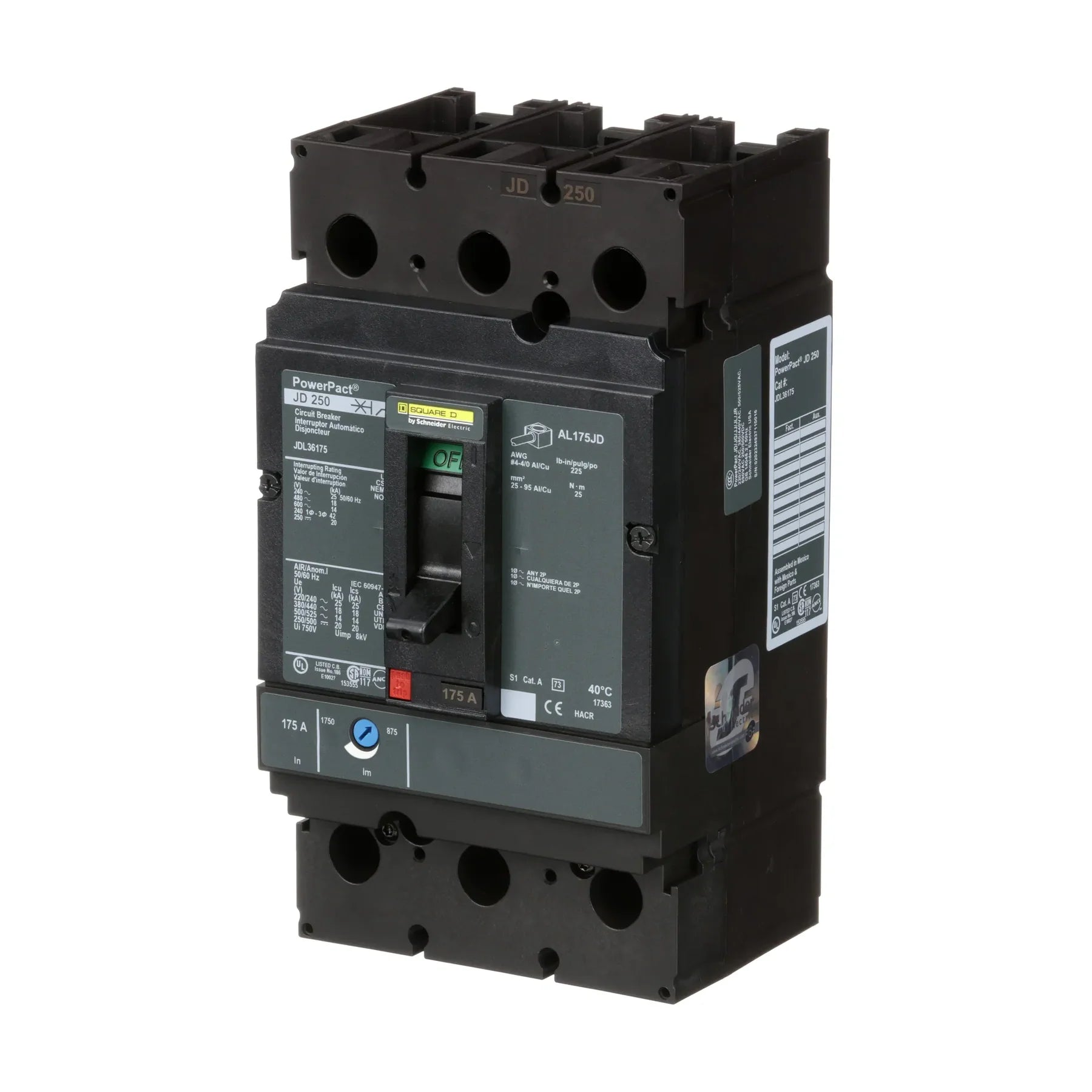

JDL36175 | Schneider Electric Circuit Breaker
- Regular price
- $952.00
- Sale price
- $952.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JDL36175
Description
Technical Specifications
|
Part # |
JDL36175 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact J |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
175 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
D |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
1750 A |
|
Magnetic hold current |
875 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V |
|
Protection Type |
Overload protection |
|
|
Short-circuit protection |
|
Suitability for isolation |
Yes |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 4...AWG 4/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Terminal identifier |
AL175JD |
|
Long time pick-up adjustment range |
0.25...1 x In |
Information About JDL36175
The PowerPacT J-Frame circuit breakers, such as the JDL36175, are engineered to safeguard electrical systems from potential damage due to overloads and short circuits. These breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. The JDL36175 specifically provides thermal magnetic circuit protection, offering a robust breaking capacity of 14kA at 600VAC.
All PowerPacT J-Frame circuit breakers feature dual-break rotating contacts that effectively minimize peak current levels during short circuit faults. Additionally, each breaker is equipped with an integral push-to-trip button located on the cover, facilitating manual operation to trip the circuit when necessary.
These circuit breakers are versatile, available in both 2 and 3-pole unit mount configurations as well as I-Line constructions. The JDL36175 model is equipped with lugs on both the line and load sides for secure electrical connections.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
