Product Description P/N: JDL36200

Description / Specifications

Description

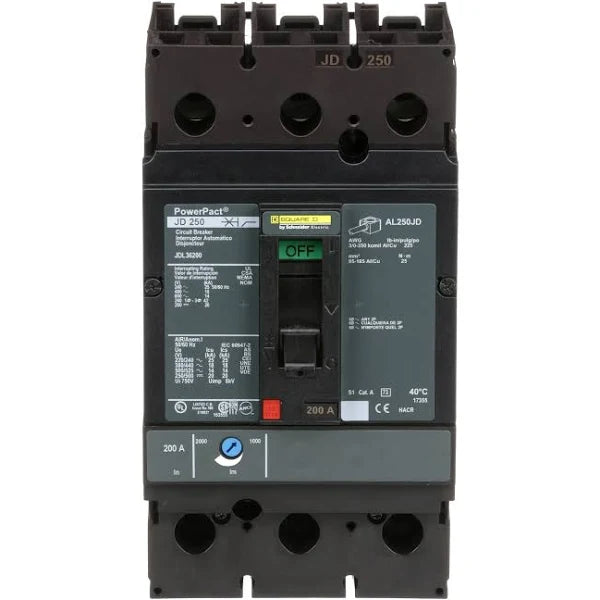

The Circuit breaker, PowerPacT J, rated at 200A and featuring 3 poles, is engineered to safeguard electrical systems against damage stemming from overloads and short circuits. PowerPacT J-Frame circuit breakers offer thermal magnetic circuit protection, with a breaking capacity of 14kA at 600VAC. Equipped with dual-break rotating contacts, they mitigate peak current levels during short circuit faults.

Featuring an integral push-to-trip button, PowerPacT J circuit breakers allow manual tripping for added safety measures. Available in 2 and 3-pole unit mount and I-Line constructions, this breaker includes lugs on both the line and load sides for secure connections.





Technical Specifications



Specifications





Part #

JDL36200

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

In rated current

200 A

Number of Poles

3P

Control type

Toggle

Breaking capacity code

D

Breaking capacity

25 kA 240 V AC 50/60 Hz UL 489

 Breaking capacity

18 kA 480 V AC 50/60 Hz

 Breaking capacity

14 kA 600 V AC 50/60 Hz

 Breaking capacity

20 kA 250 V DC

Rated operational voltage [Ue]

600 V AC 50/60 Hz IEC 60947-3

Network frequency

50/60 Hz

Rated service breaking capacity [Ics]

25 kA 220/240 V AC 50/60 Hz IEC 60947-2

 Rated service breaking capacity [Ics]

18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2

 Rated service breaking capacity [Ics]

14 kA 500/525 V AC 50/60 Hz IEC 60947-2

 Rated service breaking capacity [Ics]

20 kA 250 V DC IEC 60947-2

 Rated service breaking capacity [Ics]

20 kA 500 V DC IEC 60947-2

Rated impulse withstand voltage [Uimp]

8 kV IEC 60947-2

Trip unit technology

Thermal-magnetic

Magnetic tripping current

2000 A

Magnetic hold current

1000 A

Continuous current rating

80 %

Rated insulation voltage [Ui]

750 V IEC 60947-2

Protection type

Overload protection

 Protection type

Short-circuit protection

Suitability for isolation

Yes IEC 60947-2

Utilisation category

Category A

AWG gauge

AWG 3/0...350 kcmil aluminum/copper terminals

Local signalling

Switched off (OFF) 1 trip indicator green)

Mounting mode

Unit mount lug)

Mounting support

Lug

Electrical connection

Lugs, line

 Electrical connection

Lugs, load

Terminal identifier

AL250JD





Information About JDL36200


The PowerPacT J-Frame circuit breaker, rated at 200A and featuring 3 poles, is engineered to safeguard electrical systems against potential damage arising from overloads and short circuits. This circuit breaker variant, designated as PowerPacT J, operates within a voltage range of 600VAC, offering a substantial breaking capacity of 14kA. The breaking capacity denotes the maximum current that the breaker can interrupt without sustaining damage.

Integral to the design of PowerPacT J-Frame breakers are dual-break rotating contacts, which effectively mitigate the peak current magnitude during short circuit faults. This feature contributes to the breaker's reliability and longevity by minimizing stress on internal components.

Facilitating ease of operation and maintenance, all PowerPacT J-Frame circuit breakers incorporate a push-to-trip button integrated into the cover. This mechanism enables manual tripping of the circuit breaker as needed, streamlining troubleshooting and maintenance procedures.

Available in both 2 and 3-pole configurations, PowerPacT J circuit breakers offer flexibility in installation and deployment. Options include unit mount and I-Line constructions, catering to various system configurations and spatial constraints.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.


Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms and Conditions
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Circuit breaker, PowerPacT J, rated at 200A and featuring 3 poles, is engineered to safeguard electrical systems against damage stemming from overloads and short circuits. PowerPacT J-Frame circuit breakers offer thermal magnetic circuit protection, with a breaking capacity of 14kA at 600VAC. Equipped with dual-break rotating contacts, they mitigate peak current levels during short circuit faults.

Featuring an integral push-to-trip button, PowerPacT J circuit breakers allow manual tripping for added safety measures. Available in 2 and 3-pole unit mount and I-Line constructions, this breaker includes lugs on both the line and load sides for secure connections.





Technical Specifications



Specifications





Part #

JDL36200

Manufacturer

SCHNEIDER ELECTRIC

Brand

SQUARE D

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

In rated current

200 A

Number of Poles

3P

Control type

Toggle

Breaking capacity code

D

Breaking capacity

25 kA 240 V AC 50/60 Hz UL 489

 Breaking capacity

18 kA 480 V AC 50/60 Hz

 Breaking capacity

14 kA 600 V AC 50/60 Hz

 Breaking capacity

20 kA 250 V DC

Rated operational voltage [Ue]

600 V AC 50/60 Hz IEC 60947-3

Network frequency

50/60 Hz

Rated service breaking capacity [Ics]

25 kA 220/240 V AC 50/60 Hz IEC 60947-2

 Rated service breaking capacity [Ics]

18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2

 Rated service breaking capacity [Ics]

14 kA 500/525 V AC 50/60 Hz IEC 60947-2

 Rated service breaking capacity [Ics]

20 kA 250 V DC IEC 60947-2

 Rated service breaking capacity [Ics]

20 kA 500 V DC IEC 60947-2

Rated impulse withstand voltage [Uimp]

8 kV IEC 60947-2

Trip unit technology

Thermal-magnetic

Magnetic tripping current

2000 A

Magnetic hold current

1000 A

Continuous current rating

80 %

Rated insulation voltage [Ui]

750 V IEC 60947-2

Protection type

Overload protection

 Protection type

Short-circuit protection

Suitability for isolation

Yes IEC 60947-2

Utilisation category

Category A

AWG gauge

AWG 3/0...350 kcmil aluminum/copper terminals

Local signalling

Switched off (OFF) 1 trip indicator green)

Mounting mode

Unit mount lug)

Mounting support

Lug

Electrical connection

Lugs, line

 Electrical connection

Lugs, load

Terminal identifier

AL250JD





Information About JDL36200


The PowerPacT J-Frame circuit breaker, rated at 200A and featuring 3 poles, is engineered to safeguard electrical systems against potential damage arising from overloads and short circuits. This circuit breaker variant, designated as PowerPacT J, operates within a voltage range of 600VAC, offering a substantial breaking capacity of 14kA. The breaking capacity denotes the maximum current that the breaker can interrupt without sustaining damage.

Integral to the design of PowerPacT J-Frame breakers are dual-break rotating contacts, which effectively mitigate the peak current magnitude during short circuit faults. This feature contributes to the breaker's reliability and longevity by minimizing stress on internal components.

Facilitating ease of operation and maintenance, all PowerPacT J-Frame circuit breakers incorporate a push-to-trip button integrated into the cover. This mechanism enables manual tripping of the circuit breaker as needed, streamlining troubleshooting and maintenance procedures.

Available in both 2 and 3-pole configurations, PowerPacT J circuit breakers offer flexibility in installation and deployment. Options include unit mount and I-Line constructions, catering to various system configurations and spatial constraints.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
