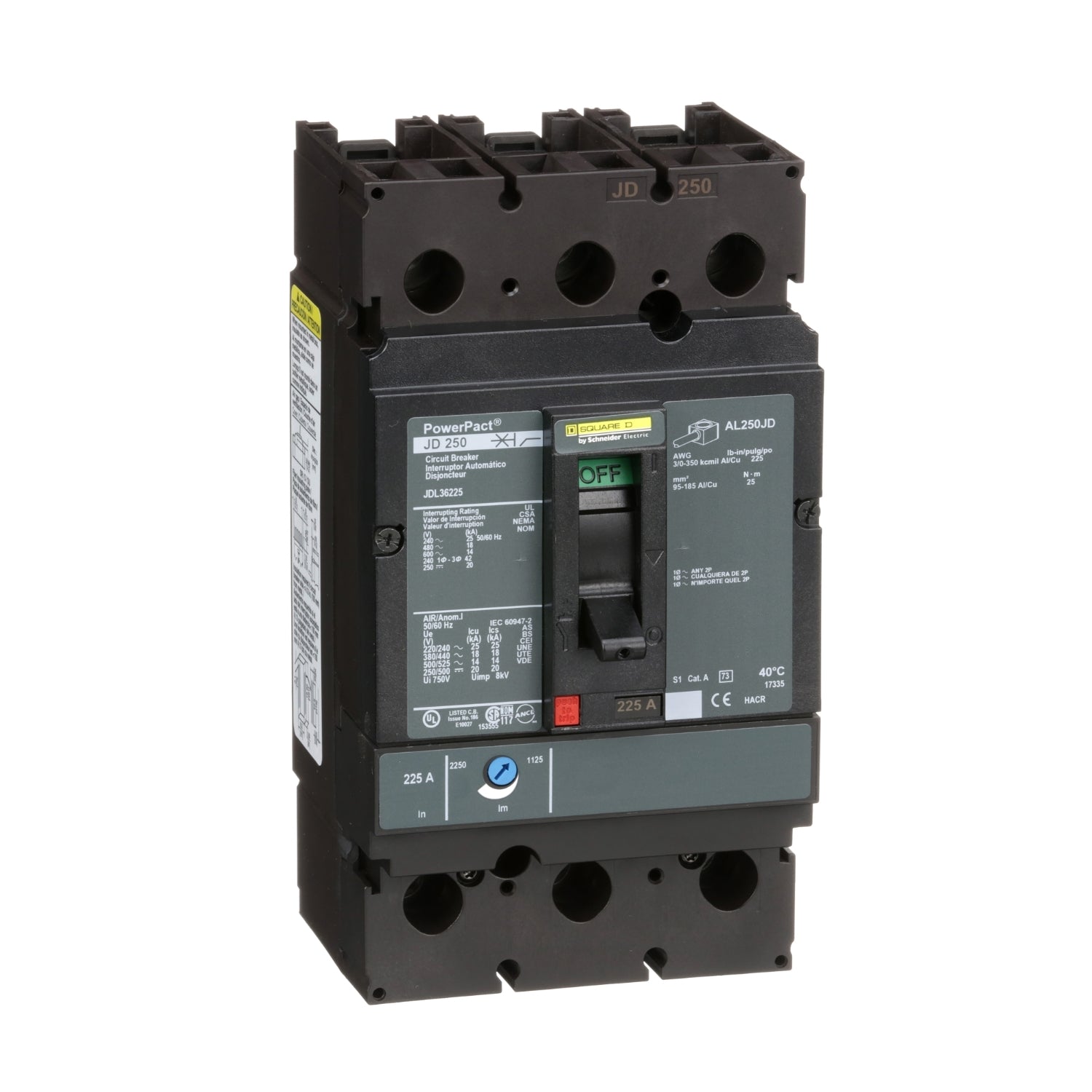

JDL36225 | Schneider Electric Circuit Breaker
- Regular price
- $1,045.00
- Sale price
- $1,045.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JDL36225
Description
The JDL36225 is a PowerPacT J-Frame circuit breaker manufactured to safeguard electrical systems against overloads and short circuits. Equipped with thermal magnetic circuit protection, this breaker offers a current rating of 225A across three poles, suitable for 600VAC applications. With a breaking capacity of 14kA at 600VAC, it ensures efficient protection under varying load conditions.
Featuring dual-break rotating contacts, this circuit breaker minimizes peak current during short circuit faults, enhancing system reliability. Additionally, it includes an integral push-to-trip button in the cover for manual circuit interruption. The breaker is configured with lugs on both the line and load sides, facilitating secure connections.
Technical Specifications
|
Part # |
JDL36225 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact J |
|
Device Application |
Distribution Line |
|
Rated Current |
225 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
D |
|
Rated Operational Voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
2250 A |
|
Magnetic Hold Current |
1125 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 3/0...350 kcmil aluminium/copper |
|
Terminal Identifier |
AL250JD |
|
Long Time Pick-up Adjustment Range |
0.25...1 x In |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Power Wire Stripping Length |
0.98 in (25 mm) |
|
Height |
7.52 in (191 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
5.29 lb(US) (2.4 kg) |
|
Phase Connection |
ABC |
|
IP Degree of Protection |
Front cover IP40 |
|
Pollution Degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
|
Tightening Torque |
221.27 lbf.in (25 N.m) |
Information About JDL36225
The JDL36225 circuit breaker, part of the PowerPacT J-Frame series, is designed to safeguard electrical systems against damage from overloads and short circuits. These circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. The JDL36225 provides thermal magnetic circuit protection with a robust breaking capacity of 14kA at 600VAC.
Equipped with dual-break rotating contacts, these circuit breakers mitigate peak current levels during short circuit faults, enhancing system safety. Additionally, all PowerPacT J-Frame circuit breakers feature an integral push-to-trip button in the cover, facilitating manual circuit breaker tripping when necessary.
PowerPacT J circuit breakers are offered in 2 and 3-pole unit mount and I-Line constructions, providing flexibility in installation. The JDL36225 breaker is designed with lugs on both the line and load sides, ensuring secure connections.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
