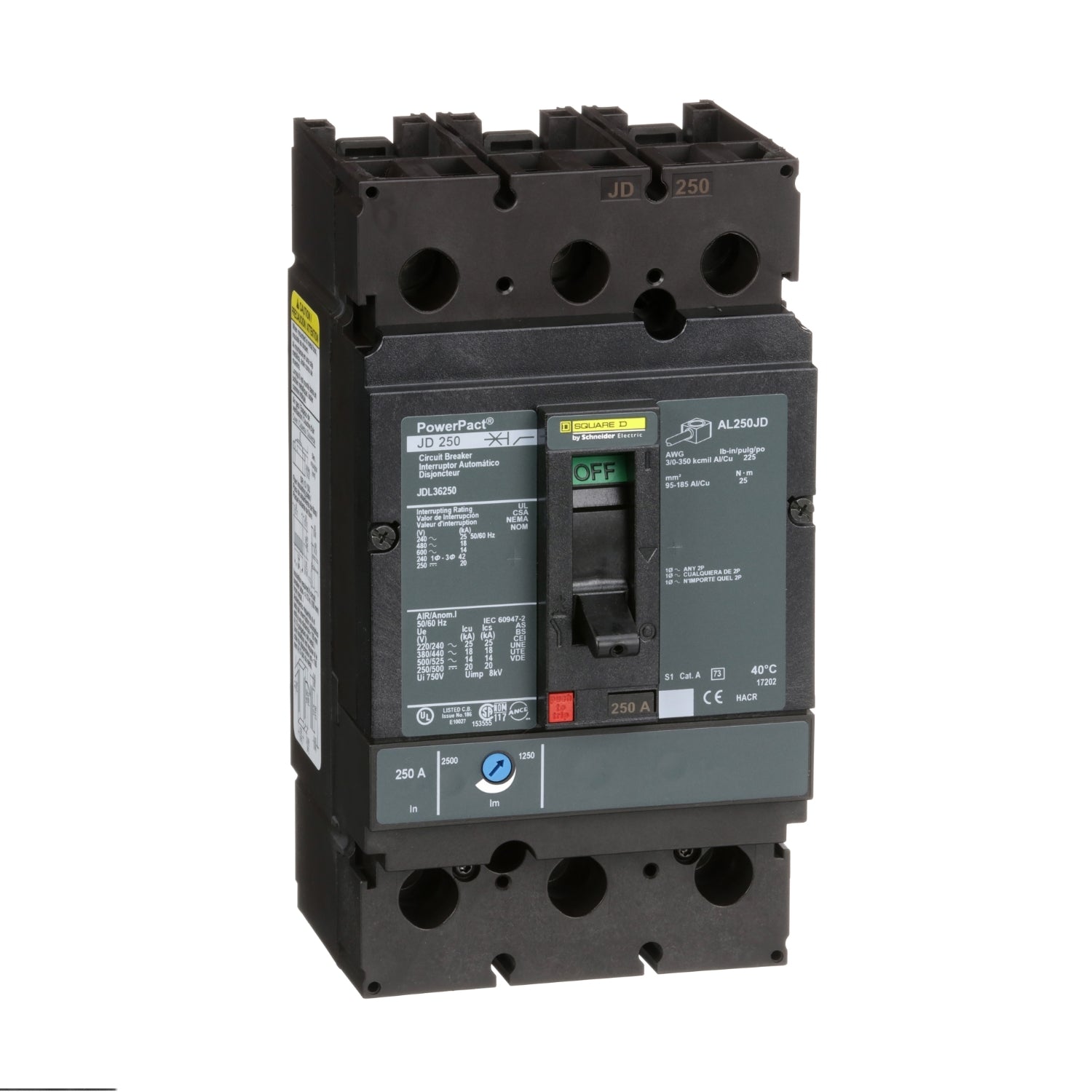

JDL36250 | Schneider Electric Powerpact JDL 3-Pole 250A 600V Thermal Magnetic Circuit Breaker
- Regular price
- $1,025.00
- Sale price
- $1,025.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JDL36250
Description
The Schneider Electric JDL36250 is a molded case circuit breaker built for three-phase electrical distribution systems that require dependable overcurrent protection. With a 250-amp rating and 600-volt operating capacity, it supports heavy-duty industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | JDL36250 |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | JDL |
| Voltage | 600 V |
| Amperage | 250 A |
| Functions | LI – Long-Time and Instantaneous |
| Frame Type | J Frame |
| Protection | Thermal Magnetic |
| Poles | 3 |
| AIC Rating | 18 kA @ 480 V |
| Phase | 3 |
| Connection | Feed-Thru |
| Interrupting Capacity | Standard |
| Mounting Style | Feed-Thru |
| Application | Industrial power distribution |
Information About JDL36250
The JDL36250 is a molded case circuit breaker within Schneider Electric’s Powerpact product line, designed to deliver reliable performance in demanding three-phase electrical systems. Built on the J Frame platform, it supports a 250-amp load capacity and is suitable for installations operating up to 600 volts. The breaker incorporates long-time and instantaneous trip characteristics, using thermal magnetic technology to address overloads and short-circuit events effectively. Its feed-thru connection method offers installation flexibility, allowing seamless integration into a variety of industrial power distribution configurations.
Key Features
- J Frame molded case construction: Provides durability for industrial-grade electrical protection.
- 250-amp rating: Supports heavy-duty three-phase loads in Powerpact installations.
- Thermal magnetic trip system: Delivers long-time and instantaneous protection for stable circuit performance.
- 18 kA interrupt rating: Supports standard fault-handling capability at 480 volts.
- Feed-thru configuration: Enables versatile wiring and straightforward integration into distribution panels.
- LI trip functions: Ensures reliable overload response and rapid fault clearing.
- Three-pole design: Supports balanced protection across three-phase electrical systems.
- Suitable for industrial environments: Engineered for consistent operation where dependable protection is required.
The JDL36250 delivers the reliability and precision required for safeguarding commercial and industrial three-phase electrical systems.
