JGA36150 | Schneider Electric Circuit Breaker
- Regular price
- $2,224.00
- Sale price
- $2,224.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: JGA36150
Description

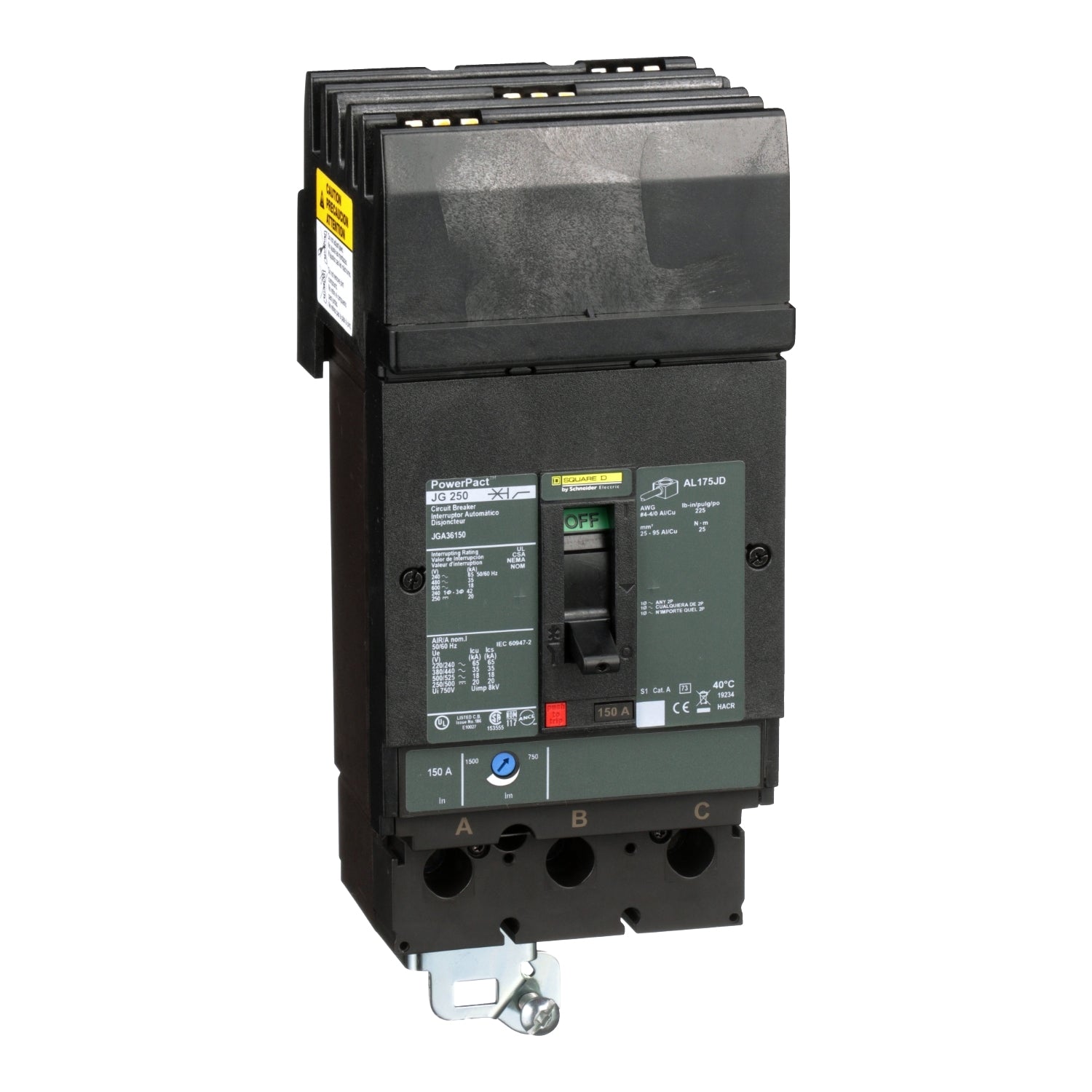

The JGA36150 Circuit Breaker from the PowerPacT J series by Schneider Electric provides robust protection for electrical systems against overloads and short circuits. Designed with either thermal magnetic or MicroLogic electronic trip protection units, this J-Frame circuit breaker delivers thermal magnetic circuit protection with a substantial breaking capacity of 18kA at 600VAC. Equipped with dual-break rotating contacts, it effectively reduces peak current during short circuit faults for enhanced operational safety.
Featuring an integral push-to-trip button for manual circuit interruption, the PowerPacT J series offers versatile mounting options including 2 and 3-pole unit mount configurations and I-Line constructions. Specifically, the JGA36150 model is designed for I-Line applications, facilitating easy installation and removal. It is equipped with I-Line terminations on the line side and mechanical lugs on the load side to ensure reliable electrical connections.
Technical Specifications
|
Part # |
JGA36150 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
150 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
G |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
1750 A |
|
Magnetic hold current |
750 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Protection Type |
Overload protection |
|
|
Short-circuit protection |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 4...AWG 4/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF) 1 trip indicator green |
|
Mounting mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical connection |
I-Line connection, line |
|
|
Lugs, load |
|
Terminal identifier |
AL175JD |
|
Long time pick-up adjustment range |
0.25...1 x In |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Tightening torque |
221.27 lbf.in (25 N.m) |
|
|
0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0) |
|
Power wire stripping length |
0.98 in (25 mm) |
|
Height |
7.52 in (191 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
5.29 lb(US) (2.4 kg) |
|
Phase connection |
ABC |
Information About JGA36150
The JGA36150 Circuit Breaker from the PowerPacT J series by Schneider Electric is engineered to safeguard electrical systems against overload and short circuit conditions. Available with thermal magnetic trip protection, it ensures robust circuit protection with a high breaking capacity of 18kA at 600VAC. Featuring dual-break rotating contacts, this breaker minimizes peak current during short circuit faults, enhancing operational safety.
All PowerPacT J-Frame circuit breakers include an integral push-to-trip button on the cover for manual tripping. They are versatile, offered in both 2 and 3-pole unit mount configurations as well as I-Line constructions, facilitating straightforward installation and removal in I-Line applications. The JGA36150 model specifically incorporates I-Line terminations on the line side and mechanical lugs on the load side, ensuring secure electrical connections.
With a current rating of 150A across 3 poles, this circuit breaker adheres to rigorous standards for continuous current, maintaining an 80% rating with an ABC phase connection. It meets safety and performance criteria established by UL, CSA, NOM, and IEC standards, substantiated by CE marking.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
IQElectro is not an authorized distributor.
