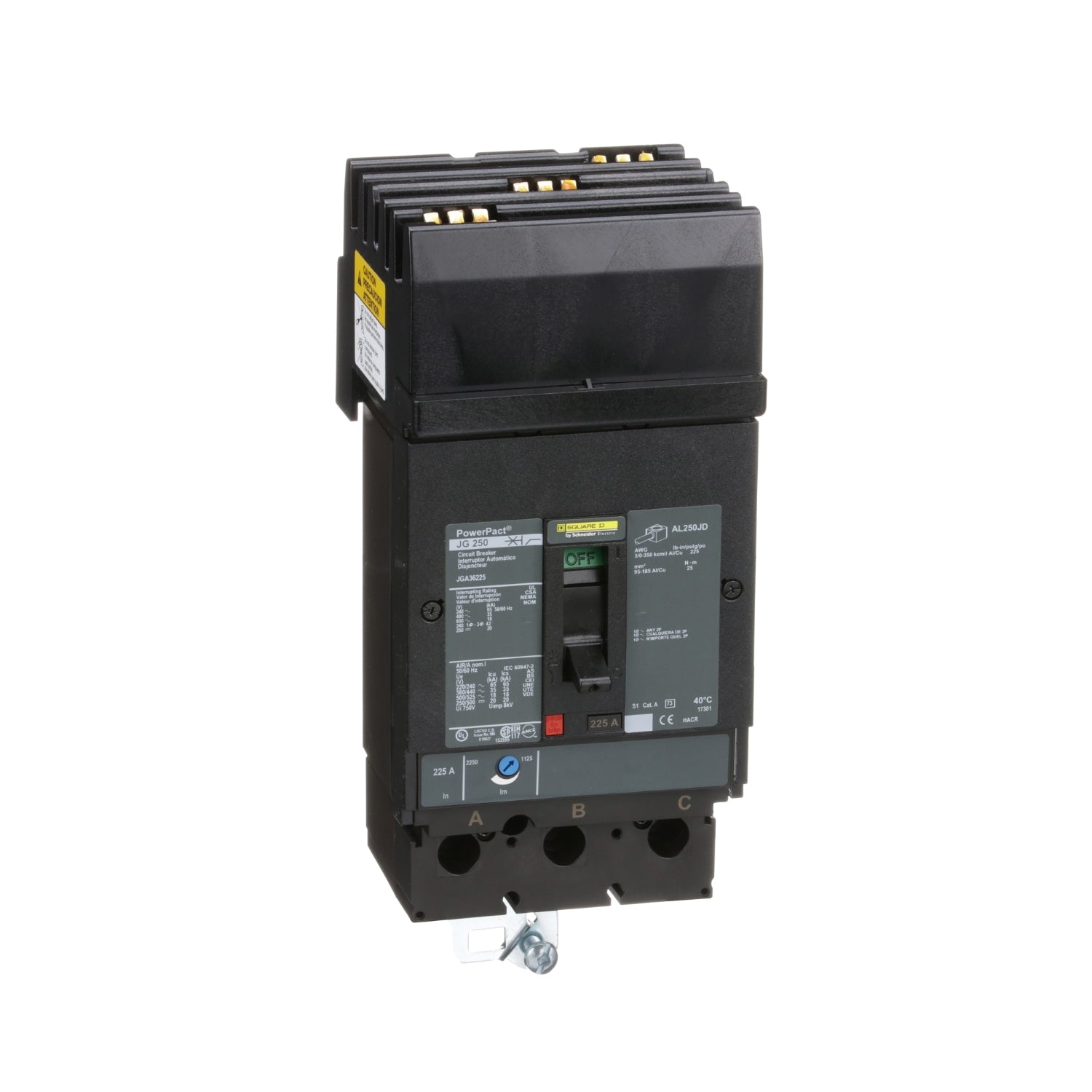

JGA36225 | Schneider Electric Circuit Breaker
- Regular price
- $977.00
- Sale price
- $977.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JGA36225
Description
The JGA36225 is a J frame, three-pole Powerpact standard molded case circuit breaker, rated for 225 amperes. It operates at a maximum voltage of 240/415 VAC at 50/60 Hz. This circuit breaker features adjustable magnetic trips ranging from 1125 to 2250 amperes, making it suitable for general power distribution applications. It is designed for use with Class 612 I-Line® panelboards and switchboards.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | JGA36225 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | JGA |
| Voltage | 600 |
| Amperage | 225 |
| Phase | 3 |
| Protection | Thermal Magnetic |
| Connection | I-Line Style Plug-In |
| Frame Type | J Frame |
| Poles | 3 |
| AIC Rating | 35kA@480V |
| Functions | LI - Long-Time and Instantaneous |
Information About JGA36225
The JGA36225 is a high-capacity circuit breaker from Schneider Electric's Powerpact series, designed to deliver robust electrical protection for industrial and commercial applications. This JGA type breaker operates at a voltage rating of up to 600V and supports a current rating of 225 amperes, making it suitable for demanding electrical systems.
The breaker features a three-pole configuration, providing comprehensive protection for three-phase electrical systems and ensuring balanced power distribution. It utilizes an I-Line style plug-in connection type, which allows for secure and efficient installation in compatible panelboards and switchboards.
Equipped with thermal magnetic protection, the JGA36225 combines long-time (thermal) and instantaneous (magnetic) responses to safeguard against overloads and short circuits. This dual protection mechanism is classified under the LI function (Long-Time and Instantaneous), enhancing the safety and reliability of the electrical system.
With an interrupting capacity (AIC) of 35kA at 480V, the breaker is designed to handle high fault currents, ensuring superior protection for critical infrastructure. The J Frame construction ensures durability and longevity, making the JGA36225 an excellent choice for high-performance electrical protection in a variety of industrial and commercial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
