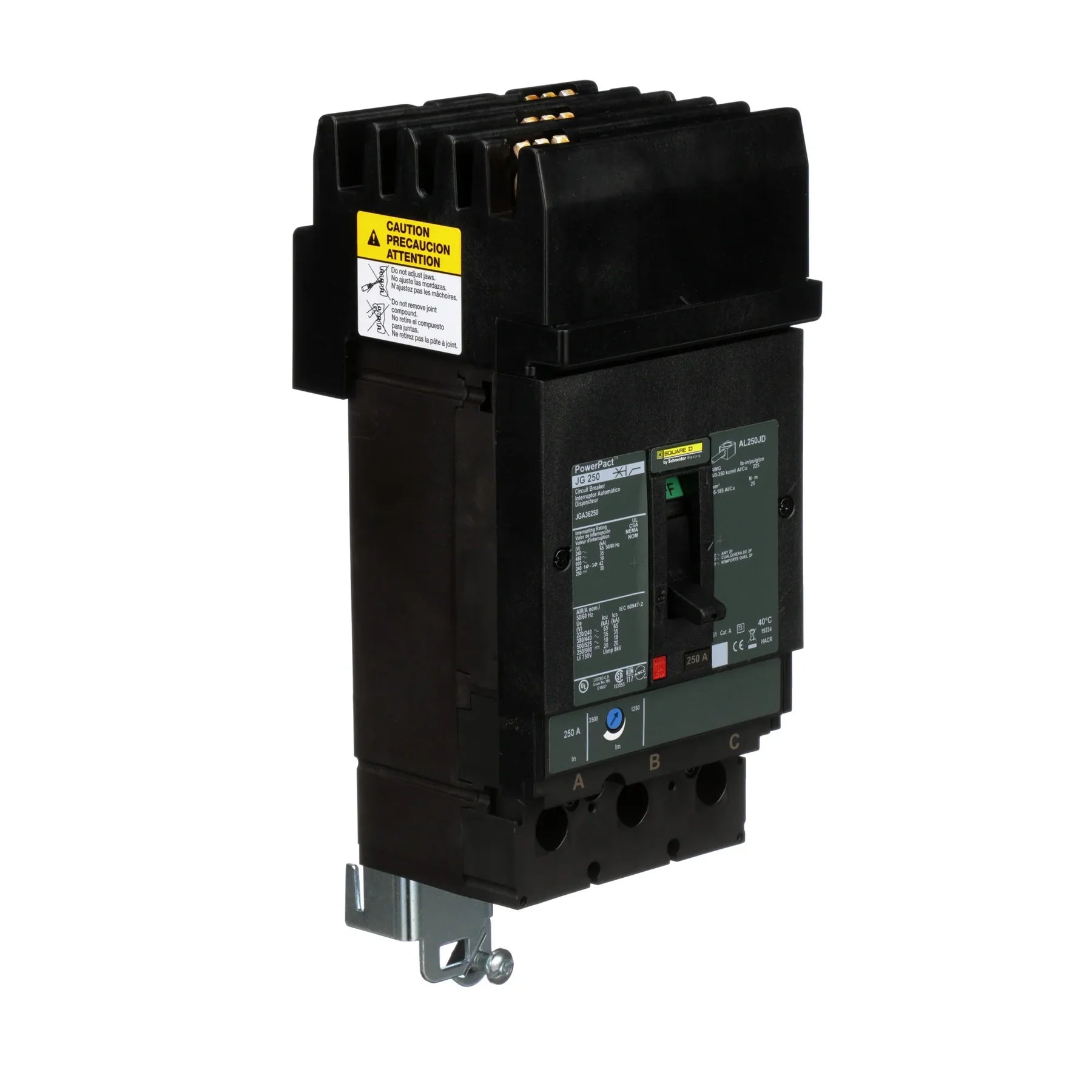

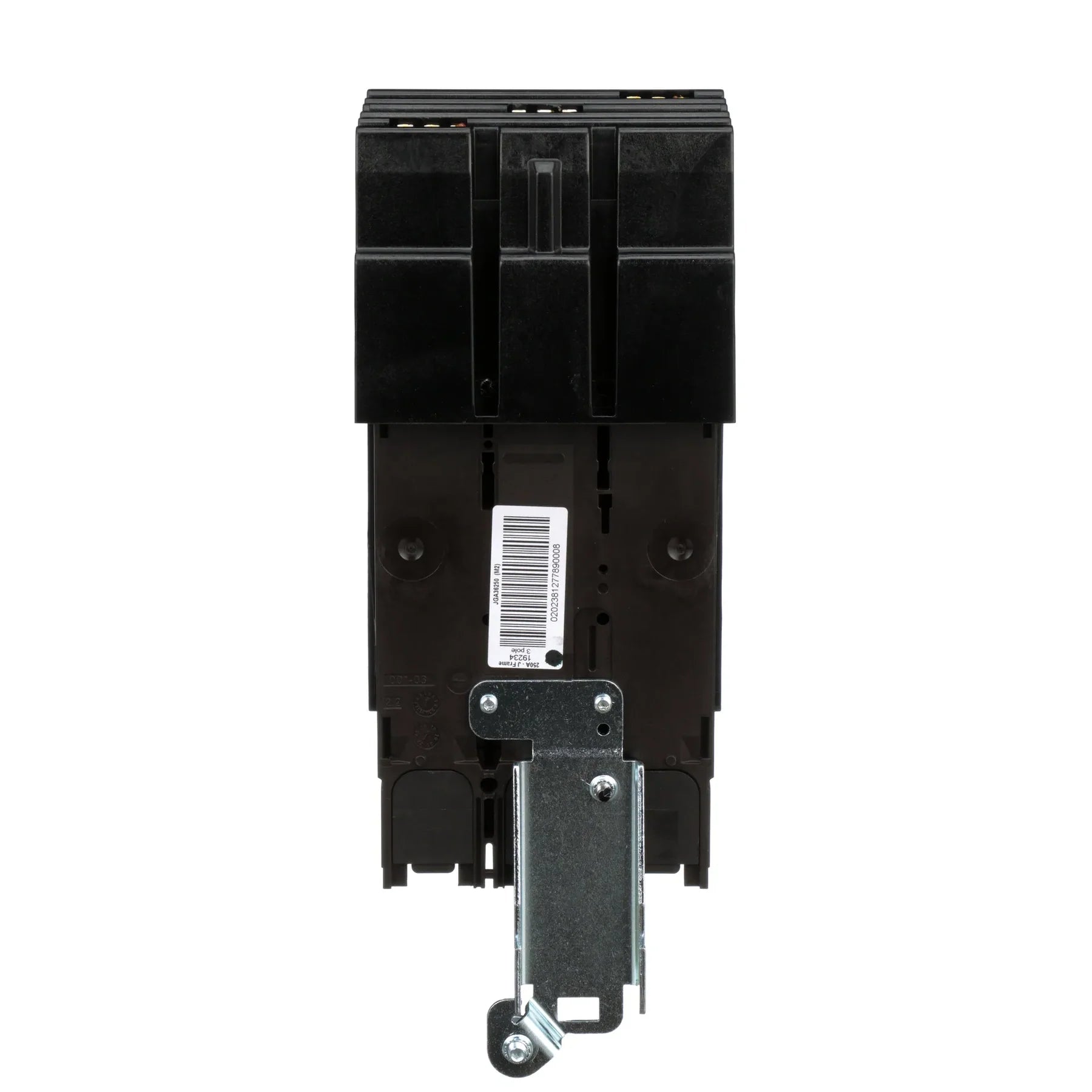

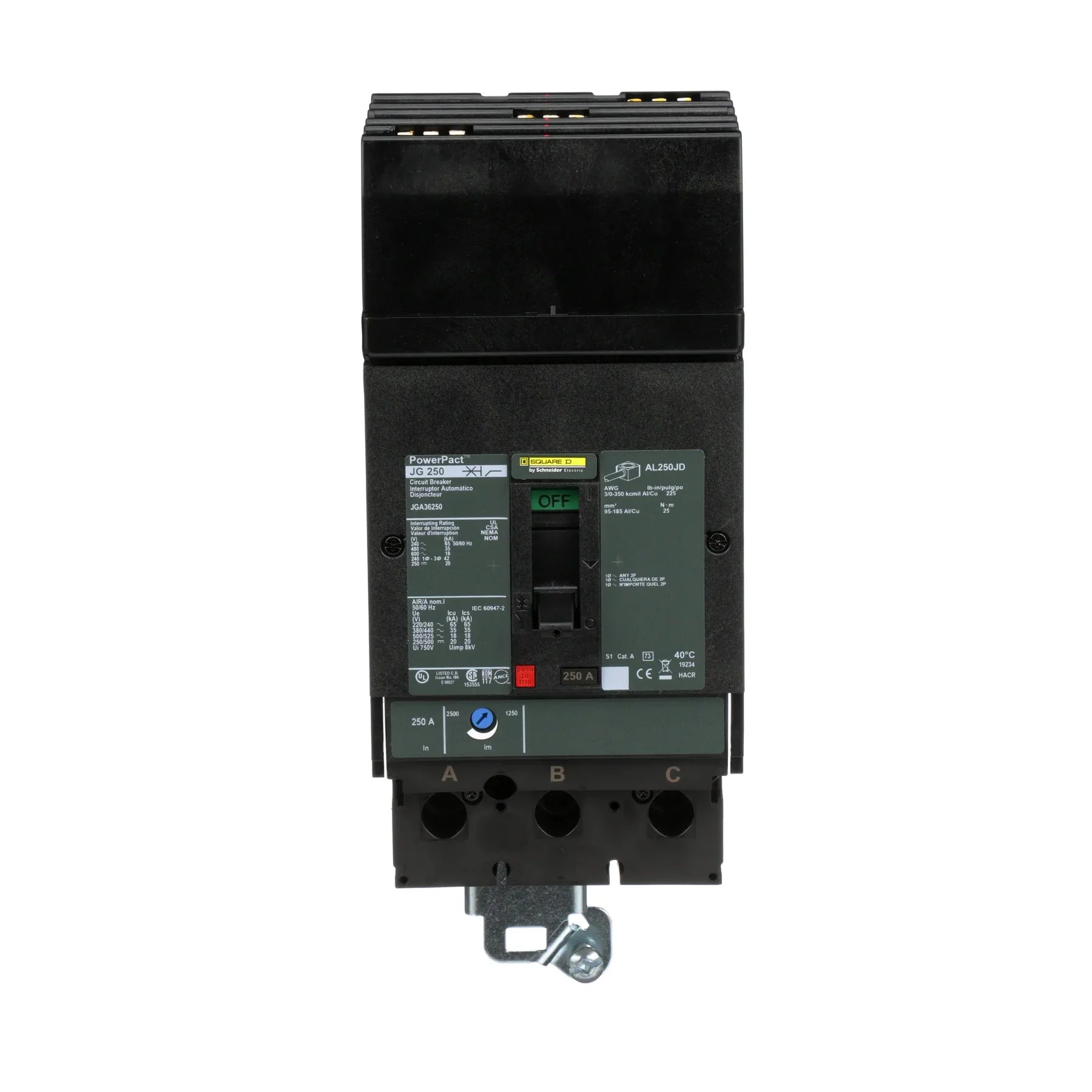

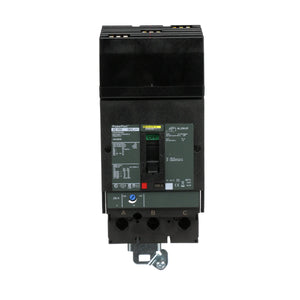

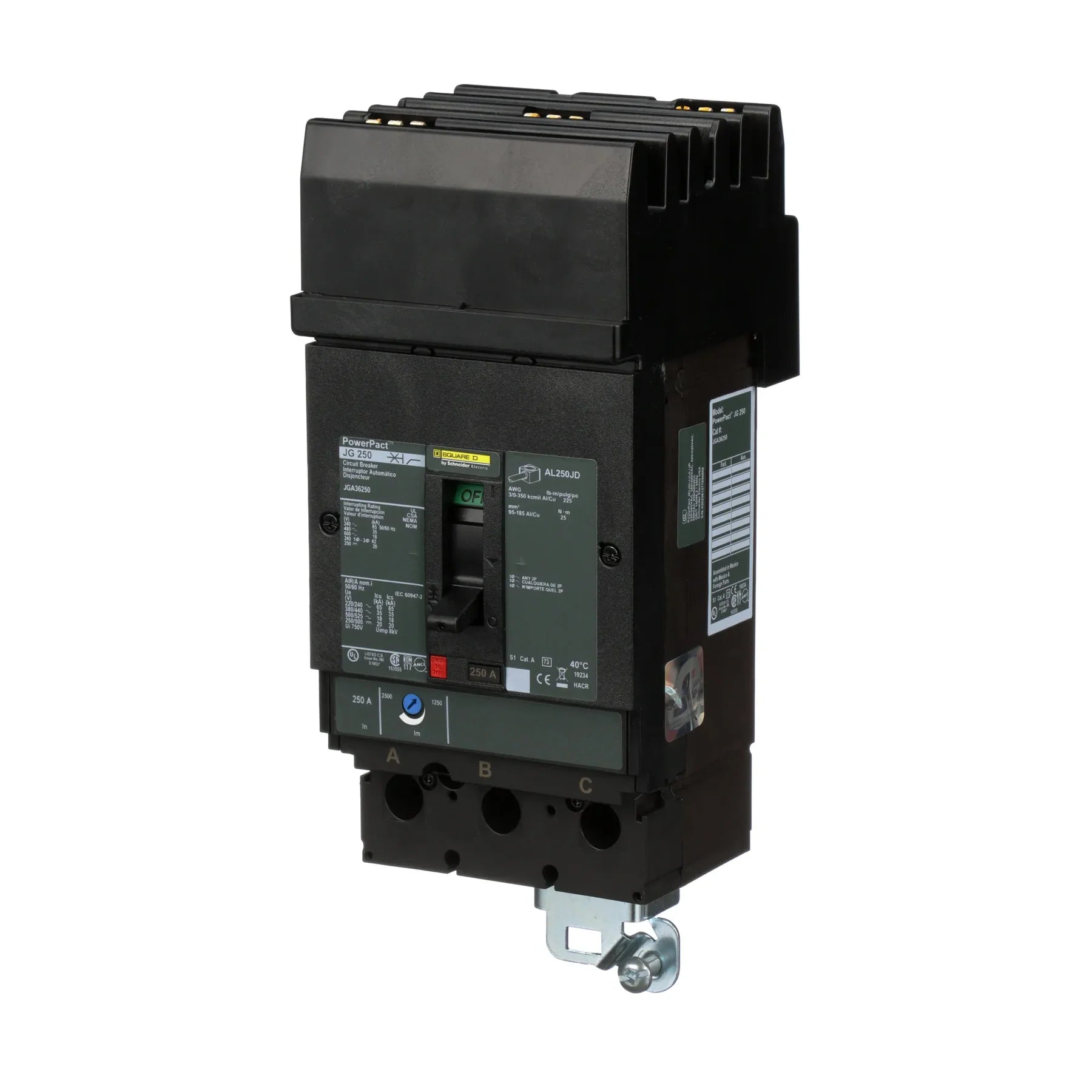

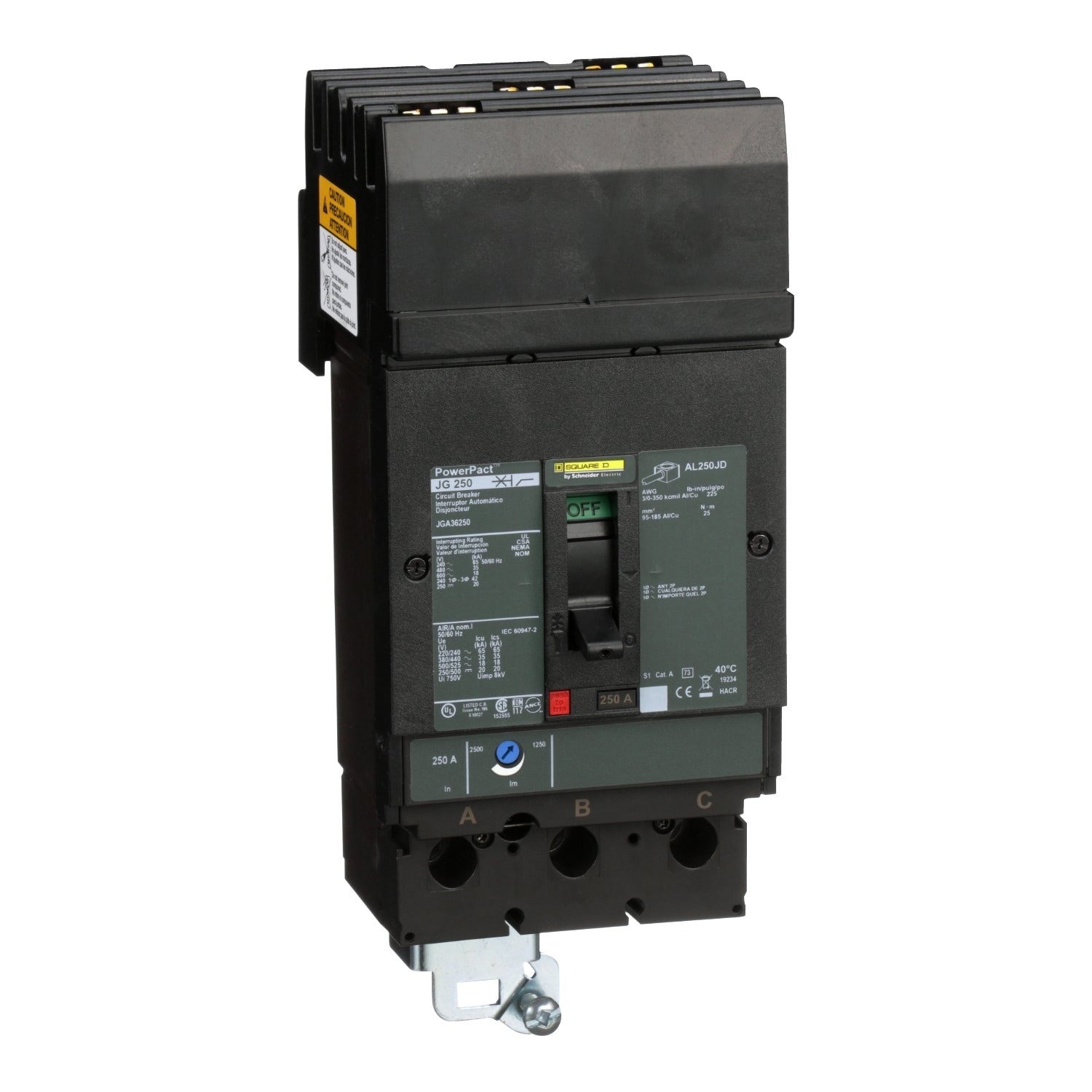

JGA36250 | Schneider Electric Circuit Breaker
- Regular price
- $1,289.00
- Sale price
- $1,289.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JGA36250
Description
The JGA36250 circuit breaker from the PowerPacT J series delivers robust thermal-magnetic circuit protection designed to safeguard electrical systems against overloads and short circuits. Rated at 250A across 3 poles, it offers a substantial breaking capacity of 18kA at 600VAC, ensuring reliable operation in demanding environments. Featuring dual-break rotating contacts to mitigate peak current during short circuit faults, this circuit breaker includes an integral push-to-trip button for manual operation.
Technical Specifications
|
Part # |
JGA36250 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact J |
|
Product or Component Type |
Motor Circuit Protector |
|
Device Application |
Distribution Line |
|
Rated Current |
250 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
Rated Operational Voltage [Ue] |
600 V AC 50/60 Hz |
|
Rated Impulse Withstand Voltage [Uimp] |
8 kV |
|
Trip Unit Technology |
Thermal-magnetic |
|
Conventional Free Air Thermal Current [Ith] |
114…217 A |
|
Magnetic Tripping Current |
2500 A |
|
Magnetic Hold Current |
1250 A |
|
Continuous Current Rating |
80 % |
|
Rated Insulation Voltage [Ui] |
750 V |
|
Protection Type |
Overload, Short-circuit |
|
Suitability for Isolation |
Yes |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 3/0...350 kcmil aluminium/copper terminals |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting Mode |
I-Line bracket |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line; Lugs, load |
|
Terminal Identifier |
AL250JD |
|
Long Time Pick-up Adjustment Range |
0.25...1 x In |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Power Wire Stripping Length |
0.98 in (25 mm) |
|
Height |
7.52 in (191 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
5.29 lb(US) (2.4 kg) |
|
Phase Connection |
ABC |
Information About JGA36250
The PowerPacT J-Frame circuit breaker, model JGA36250, is engineered to safeguard electrical systems against potential damage caused by overloads and short circuits. Available with both thermal magnetic and MicroLogic electronic trip protection units, this circuit breaker offers versatile protection options. Specifically, the JGA36250 provides thermal magnetic circuit protection with a robust breaking capacity of 18kA at 600VAC.
Equipped with dual-break rotating contacts, the PowerPacT J-Frame design effectively reduces peak current levels during short circuit faults, enhancing operational safety and reliability. Featuring an integral push-to-trip button integrated into its cover, operators can manually trip the circuit breaker when necessary.
The PowerPacT J series is adaptable, available in both 2 and 3-pole unit mount configurations as well as I-Line constructions. I-Line models facilitate easy installation and removal in I-Line applications, equipped with I-Line terminations on the line side and mechanical lugs on the load side for secure electrical connections.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
