JGA36250U31X | Schneider Electric Circuit Breaker
- Regular price
- $1,389.00
- Sale price
- $1,389.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

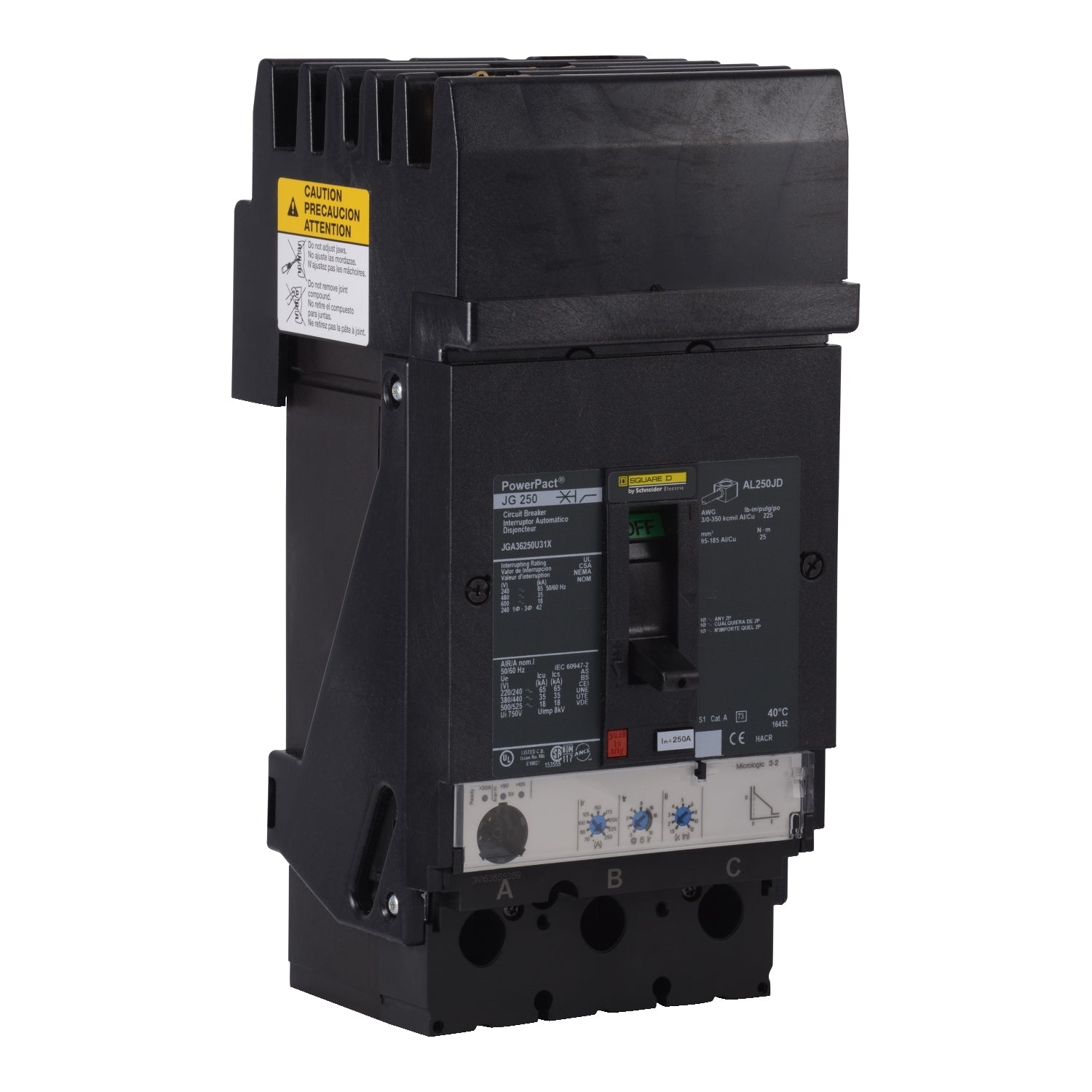

Product Description P/N: JGA36250U31X
Description
The JGA36250U31X is a PowerPacT J-Frame circuit breaker by Schneider Electric, rated at 250A with 3 poles and a voltage rating of 600VAC. It features a breaking capacity of 18kA and utilizes Micrologic 3.2 electronic trip protection with LI function. Designed for overload and short circuit protection, it includes dual-break rotating contacts to minimize peak current during short circuit faults. The breaker has I-Line terminations on the line side and mechanical lugs on the load side, facilitating easy installation and removal.
Technical Specifications
|
Part # |
JGA36250U31X |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact J |
|
Product or Component Type |
Motor Circuit Protector |
|
Device Application |
Distribution Line |
|
Rated Current |
250 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
[Ue] Rated Operational Voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, standard, MicroLogic 3.2, LI |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Trip Unit Name |
MicroLogic 3.2 |
|
Protection Type |
Overload protection, Short-circuit protection |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilization Category |
Category A |
|
AWG Gauge |
AWG 3/0...350 kcmil aluminium/copper terminals |
|
Mounting Mode |
I-Line (bracket) |
|
Mounting Support |
Bracket |
|
Electrical Connection |
I-Line connection, line, Lugs, load |
|
Terminal Identifier |
AL250JD |
|
Long Time Pick-up Adjustment Range |
0.25...1 x In |
Information About JGA36250U31X
The JGA36250U31X is a PowerPacT J-Frame circuit breaker manufactured by Schneider Electric, rated at 250 amps. This circuit breaker features a three-pole configuration and is designed for use in systems operating at 600 VAC. It has a breaking capacity of 18 kA. The device is equipped with a Micrologic 3.2 electronic trip unit, offering long-time (LI) protection.
PowerPacT J-Frame circuit breakers, including the JGA36250U31X, are engineered to protect electrical systems from damage caused by overloads and short circuits. These breakers are available with either thermal magnetic or Micrologic electronic trip protection units. The Micrologic 3.2 trip unit provides advanced protection and monitoring capabilities, ensuring precise and reliable operation.
A notable feature of PowerPacT J-Frame circuit breakers is the dual-break rotating contacts. This design reduces the peak current during a short circuit fault, enhancing the breaker's performance and safety. Additionally, all PowerPacT circuit breakers include an integral push-to-trip button located on the cover. This feature allows for manual tripping of the breaker, providing an added layer of control and safety.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
