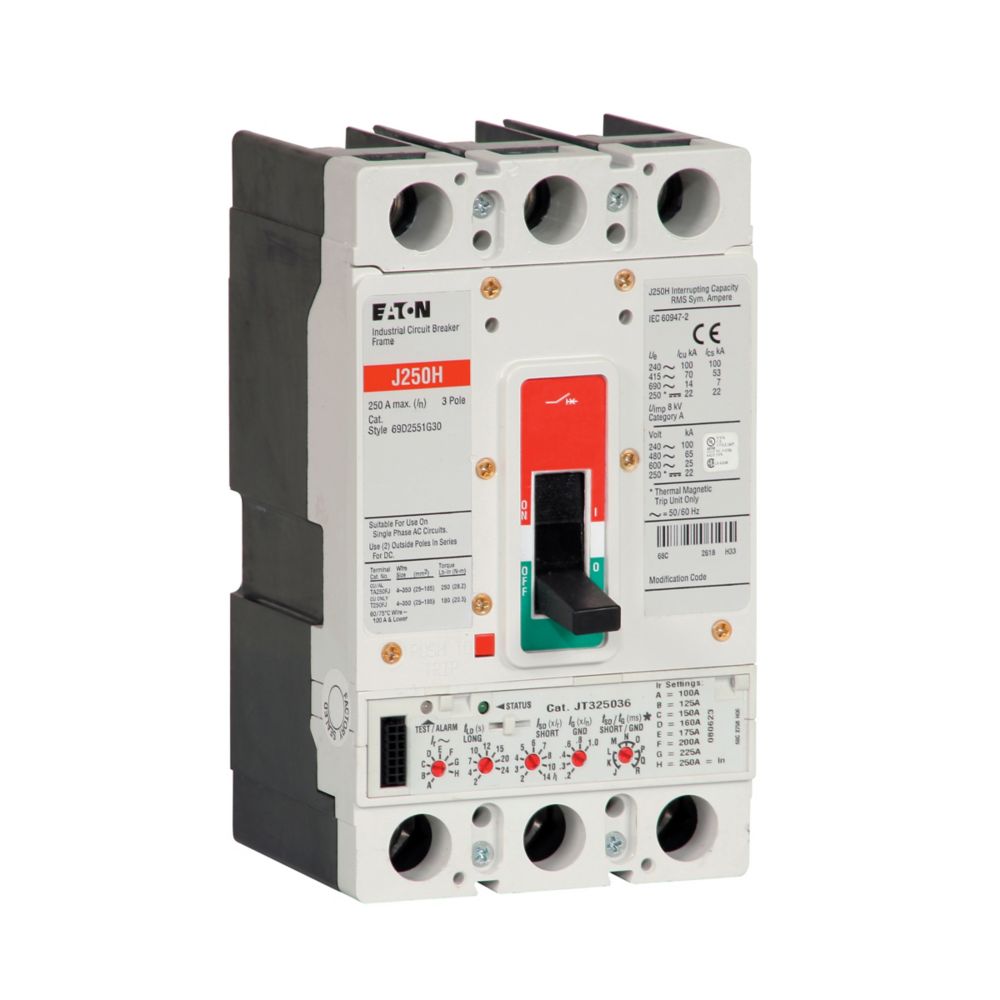

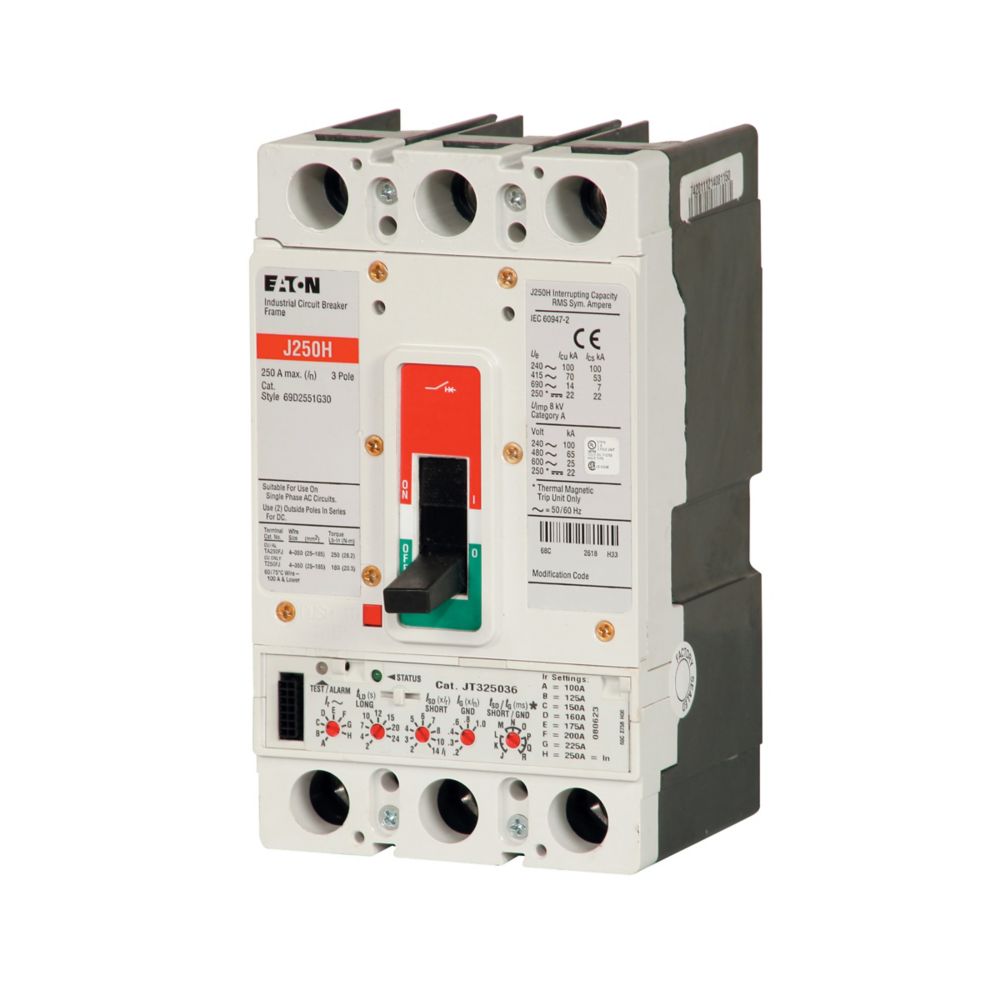

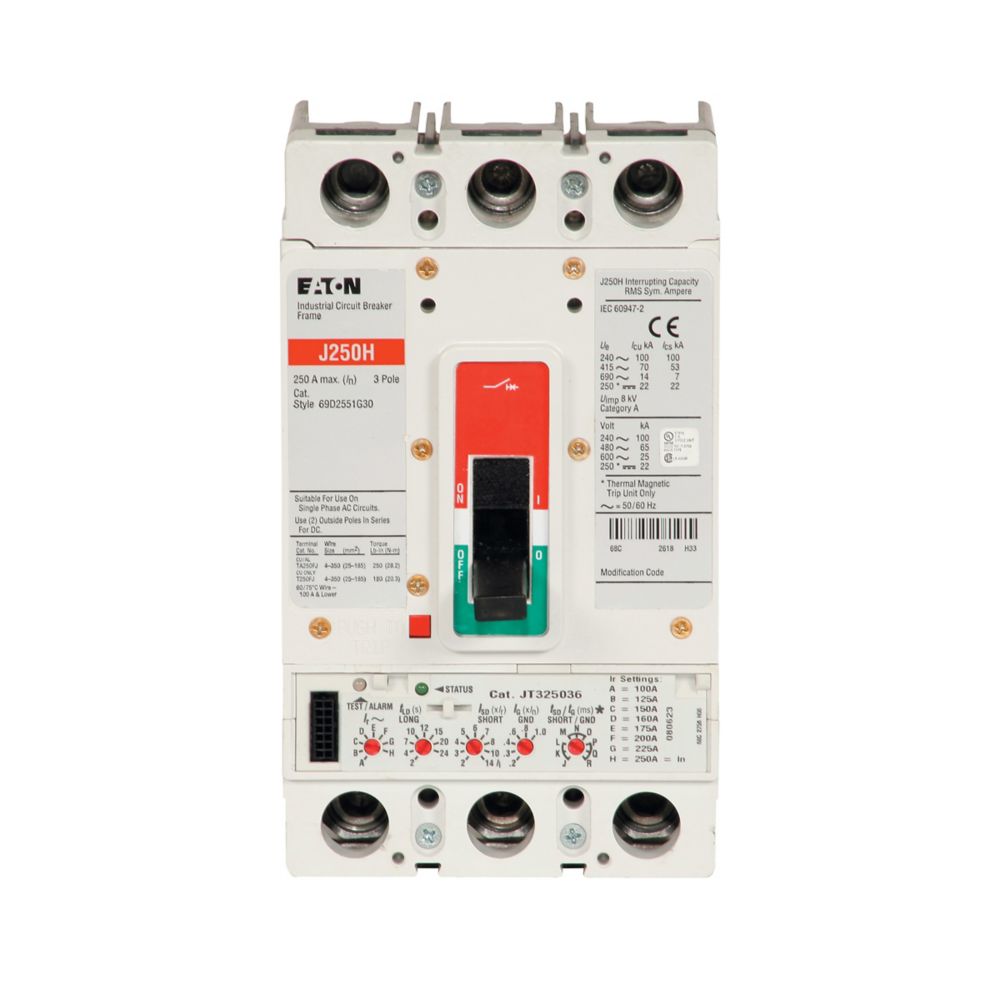

JGH3250FAG | Eaton Series G 250A 3-Pole Molded Case Circuit Breaker 600VAC
- Regular price
- $3,899.00
- Sale price
- $3,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JGH3250FAG
Description
The Eaton JGH3250FAG is a molded case circuit breaker designed to provide reliable overcurrent protection in commercial and industrial power distribution systems. This Eaton part number JGH3250FAG features a 250 amp rating and supports up to 600 Vac operation for three-phase electrical circuits. Built within the Series G JG frame platform, it delivers dependable thermal-magnetic protection for panelboards, switchboards, and motor control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | JGH3250FAG |
| Subcategory | Molded Case Circuit Breaker |
| Product Type | Molded Case Circuit Breaker |
| Series | Series G |
| Frame Type | JG Frame |
| Circuit Breaker Type | Complete Breaker |
| Number of Poles | Three-Pole |
| Amperage Rating | 250 A |
| Voltage Rating | 600 Vac |
| Trip Type | T185 Thermal Magnetic |
| Interrupt Rating | 100 kAIC @ 240 Vac; 65 kAIC @ 480 Vac; 25 kAIC @ 600 Vac |
| Frequency Rating | 50–60 Hz |
| Terminals | Line and Load |
| Mounting Hardware | Metric |
| Compliance | CE Marked |
| Certifications | UL Listed, CSA Certified, IEC Rated |
| Dimensions (L×W×H) | 3.57 × 4.13 × 4.13 in |
| Weight | 6 lb |
Information About JGH3250FAG
The JGH3250FAG is a complete molded case circuit breaker from Eaton’s Series G product family, engineered for robust circuit protection in demanding electrical installations. It utilizes a fixed thermal and adjustable magnetic trip system to provide reliable overload and short-circuit protection. The breaker is built on the JG frame and supports three-pole configurations for three-phase power systems commonly found in industrial and commercial facilities. Designed with line-and-load terminals and metric mounting hardware, the device ensures compatibility with modern electrical panels and distribution assemblies.
Key Features:
- 250 Amp Current Rating: Provides reliable overcurrent protection for circuits operating up to 250 A.
- Series G JG Frame Design: Engineered for Eaton’s Series G platform to ensure durability and consistent performance.
- Thermal-Magnetic Trip Protection: Combines thermal overload protection with magnetic short-circuit response.
- High Interrupting Capacity: Rated up to 100 kAIC at 240 Vac and 65 kAIC at 480 Vac for demanding fault conditions.
- Three-Pole Configuration: Suitable for protecting three-phase electrical distribution systems.
- 600 Vac Voltage Rating: Supports industrial and commercial systems operating up to 600 Vac.
- Line and Load Terminals: Simplifies installation within switchboards, panelboards, and distribution equipment.
- UL, CSA, and IEC Certifications: Complies with multiple international electrical safety standards.
The JGH3250FAG delivers the reliability and precision required for protecting industrial power distribution circuits and commercial electrical infrastructure.
