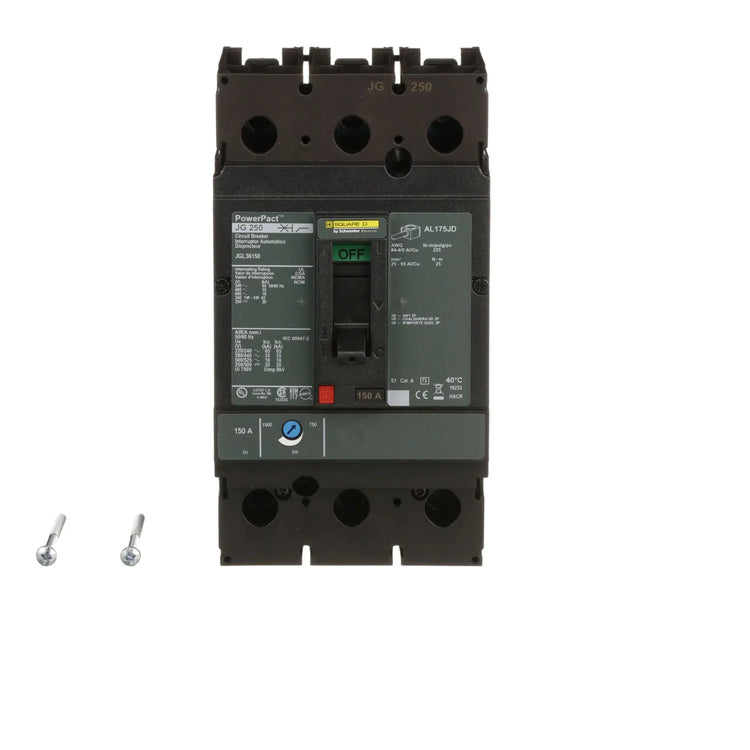

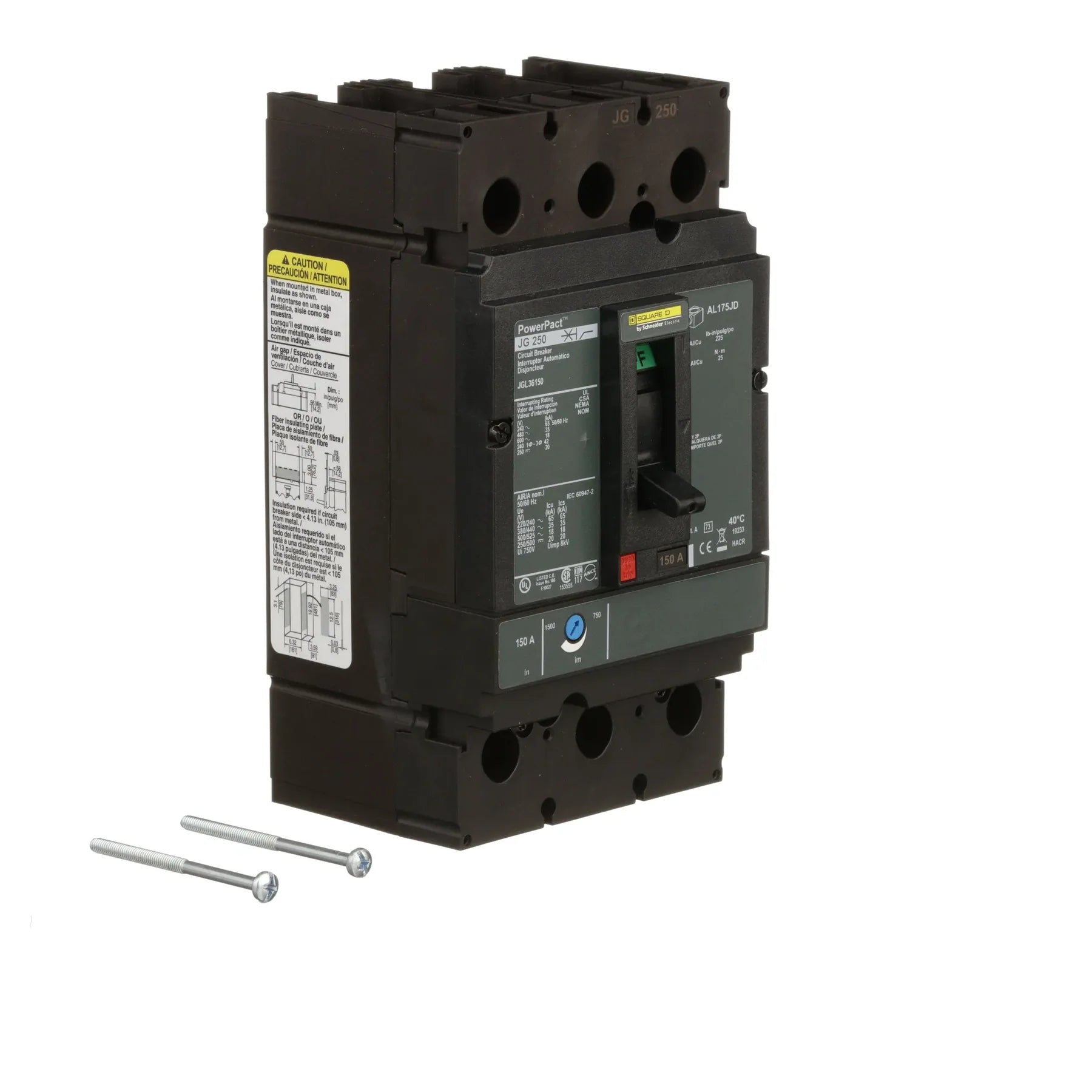

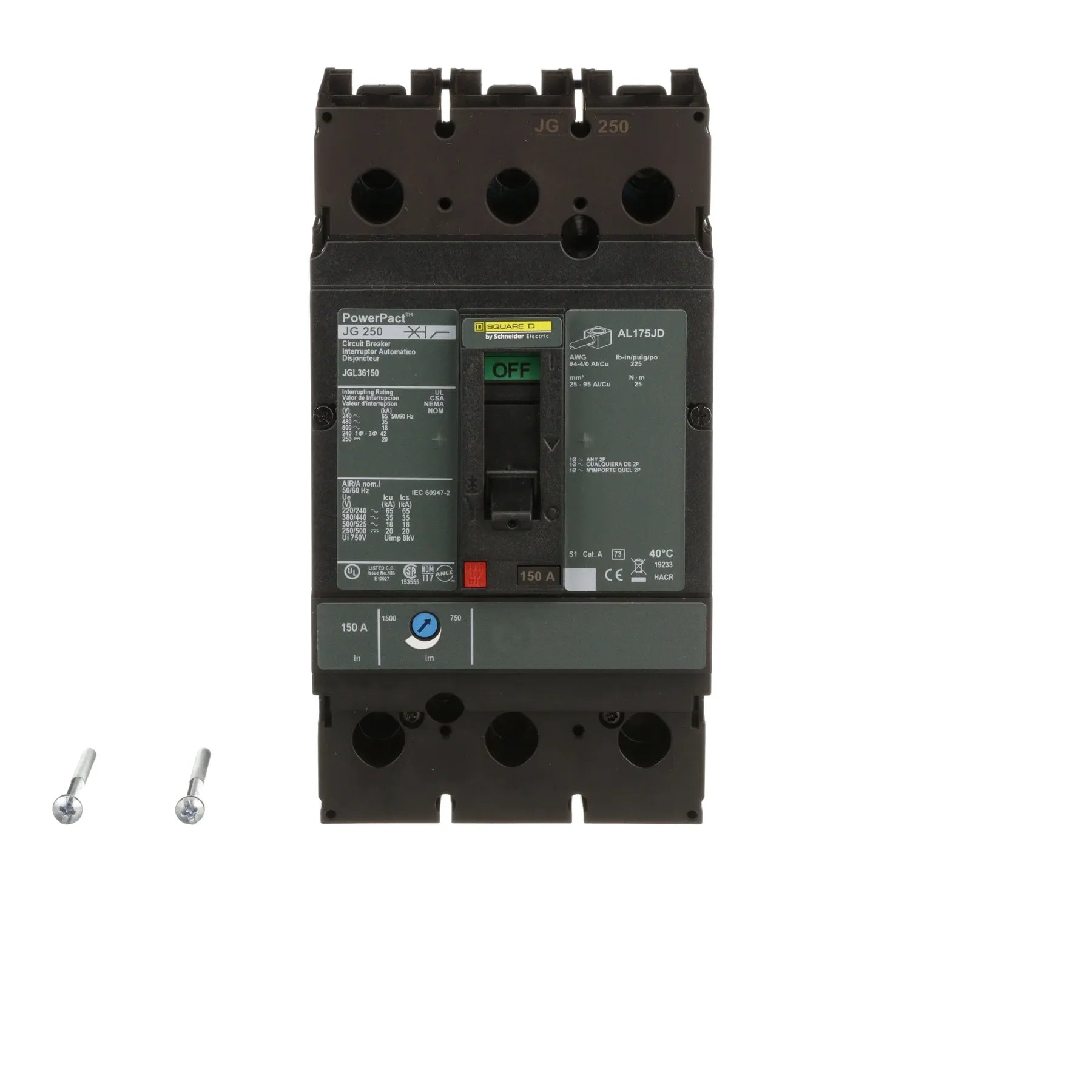

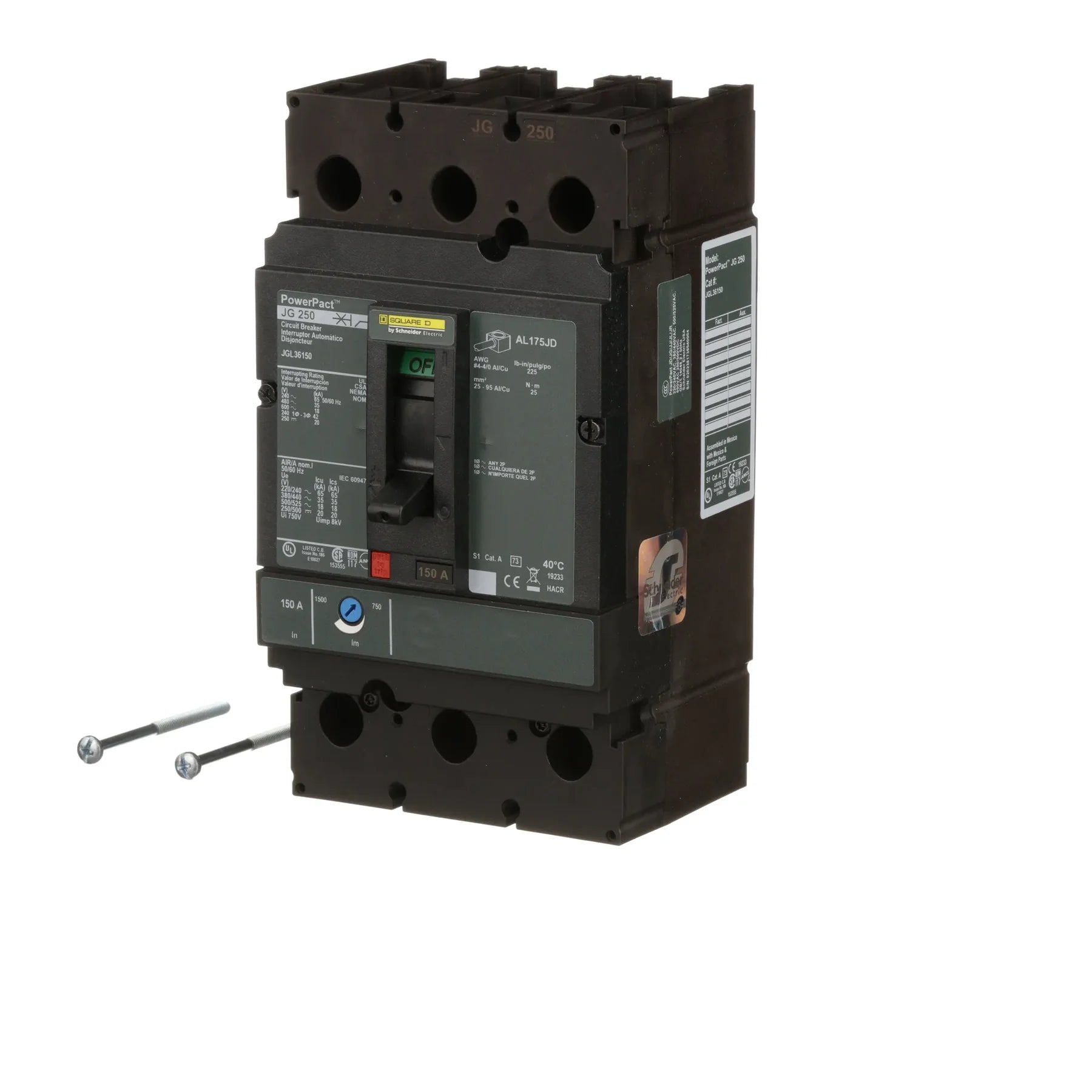

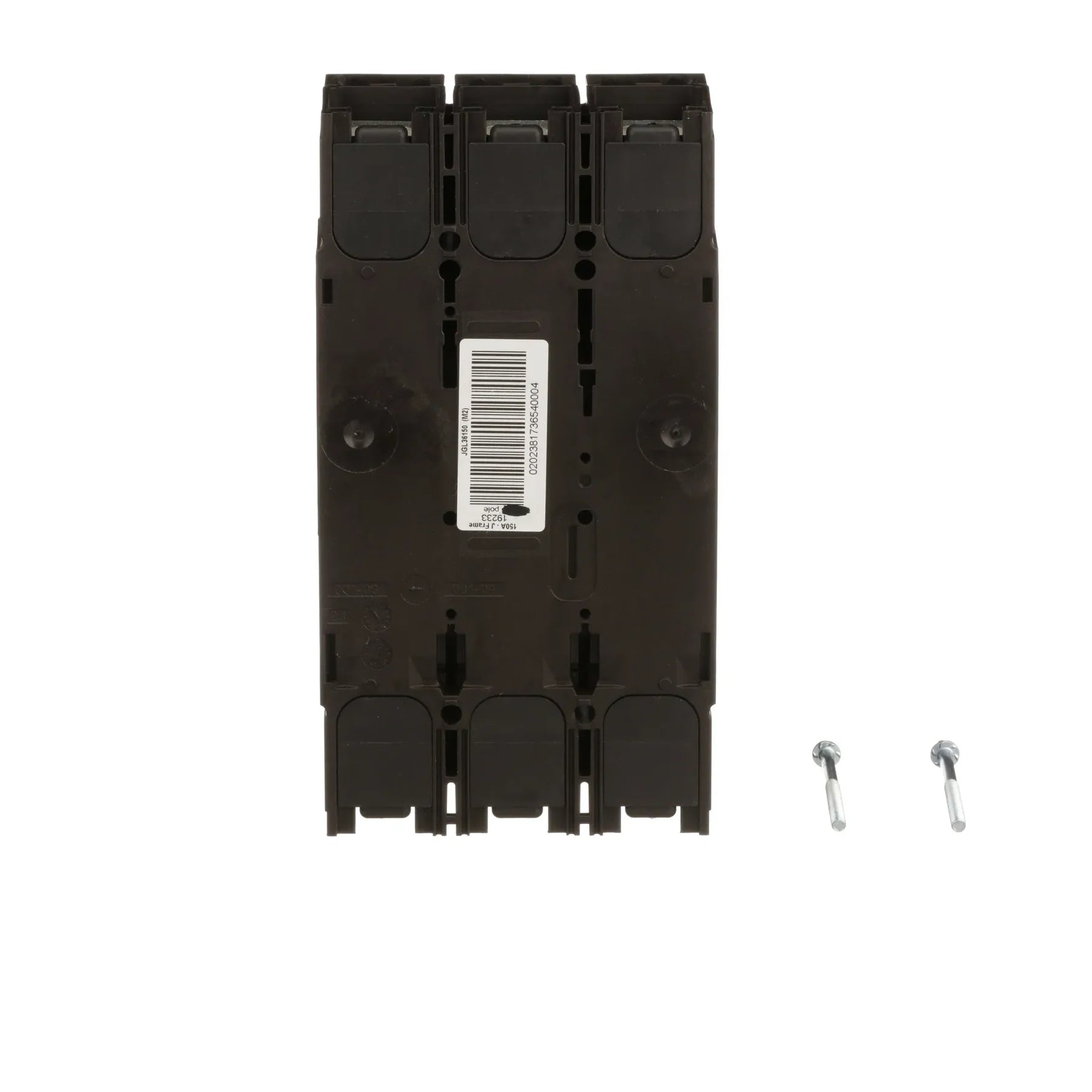

JGL36150 | Schneider Electric Circuit Breaker
- Regular price
- $950.00
- Sale price
- $950.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JGL36150
Description
The JGL36150 circuit breaker, part of the PowerPacT J series, is engineered to safeguard electrical systems from potential damage caused by overloads and short circuits. Featuring a robust design, it offers either thermal magnetic or MicroLogic electronic trip protection units. This specific model utilizes thermal magnetic technology to provide reliable circuit protection, boasting an 18kA breaking capacity at 600VAC.
Technical Specifications
|
Part # |
JGL36150 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product name |
PowerPact J |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution Line |
|
Rated Current |
150 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
G |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
1750 A |
|
Magnetic hold current |
750 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Protection Type |
Overload protection, Short-circuit protection |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 4...AWG 4/0 aluminium/copper terminal |
|
Local signalling |
Switched off (OFF), 1 trip indicator green) |
|
Mounting mode |
Unit mount lug) |
|
Mounting Support |
Lug |
|
Terminal identifier |
AL175JD |
|
Long time pick-up adjustment range |
0.25...1 x In |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Tightening torque |
221.27 lbf.in (25 N.m) 0.04…0.15 in² (25…95 mm²) (AWG 4...AWG 4/0) |
|
Power wire stripping length |
0.98 in (25 mm) |
|
Height |
7.52 in (191 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
5.29 lb(US) (2.4 kg) |
|
Phase connection |
CA |
Information About JGL36150
The JGL36150 is a robust circuit breaker belonging to the PowerPacT J-Frame series, meticulously engineered to safeguard electrical systems from potential damage caused by overloads and short circuits. Available with either thermal magnetic or MicroLogic electronic trip protection units, this circuit breaker specifically employs thermal magnetic technology, ensuring reliable circuit protection with a substantial breaking capacity of 18kA at 600VAC.
All PowerPacT J-Frame circuit breakers, including the JGL36150, feature dual-break rotating contacts designed to minimize peak current during short circuit faults, thereby enhancing overall system safety and longevity. Furthermore, each unit is equipped with an integral push-to-trip button integrated into the cover, allowing for manual tripping when necessary.
Designed for versatile application, PowerPacT J circuit breakers like the JGL36150 are available in configurations suitable for both 2 and 3-pole unit mount and I-Line constructions, facilitating flexible installation in various electrical distribution setups. The breaker includes lugs on both the line and load sides, ensuring secure electrical connections.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
