JGL36175 | Schneider Electric Circuit Breaker
- Regular price
- $785.00
- Sale price
- $785.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JGL36175
Description

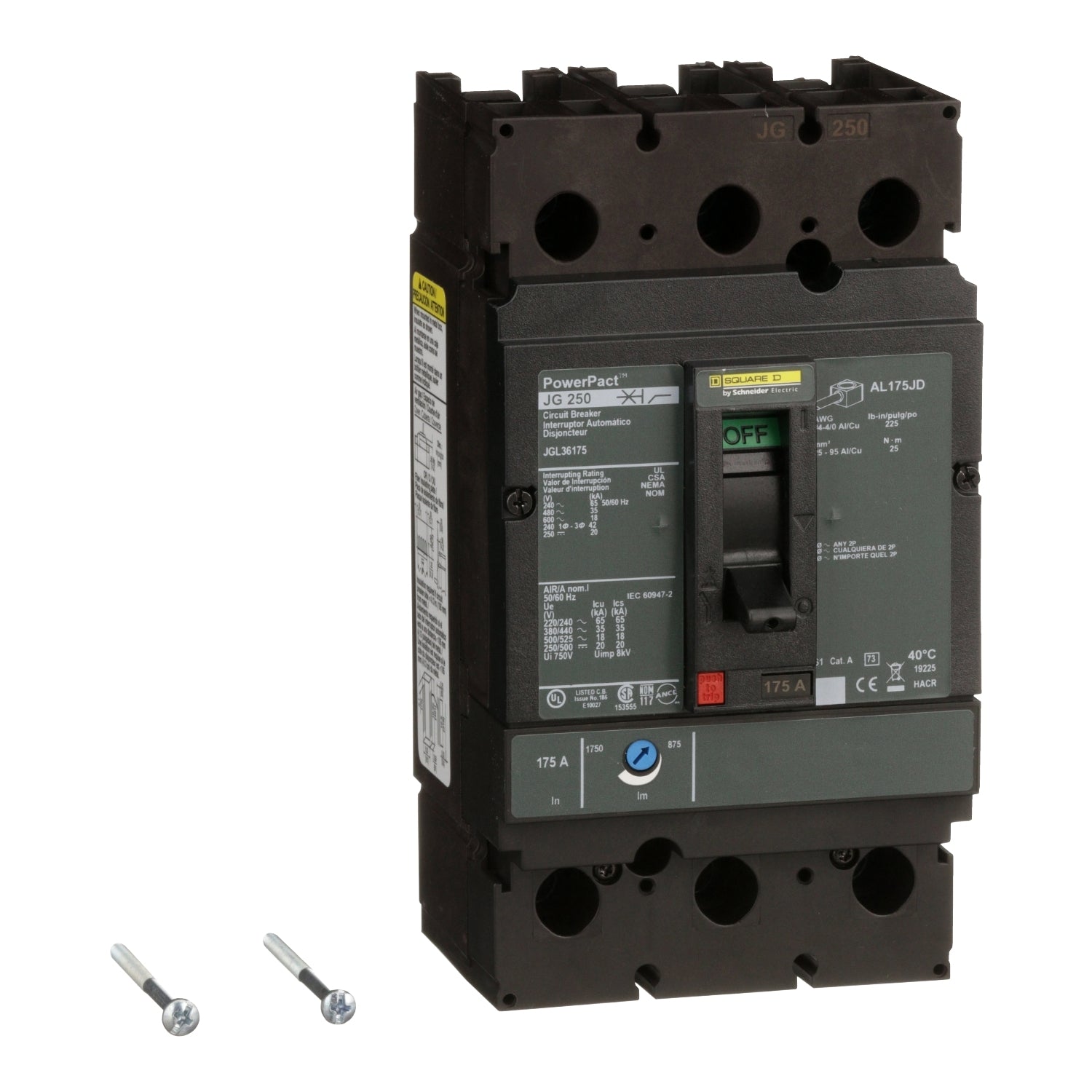

The JGL36175 Circuit Breaker, part of the PowerPacT J series, is designed to safeguard electrical systems from overloads and short circuits. Featuring thermal magnetic protection, this circuit breaker has a breaking capacity of 18kA at 600VAC. Equipped with dual-break rotating contacts, it effectively reduces peak current during short circuit faults.
All PowerPacT J-Frame circuit breakers, including the JGL36175, come with an integral push-to-trip button for manual tripping. They are available in both 2 and 3-pole unit mount configurations. Additionally, this breaker has lugs on both the line and load sides.
Technical Specifications
|
Part # |
JGL36175 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
175 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
[Ue] Rated Operational Voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
|
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1750 A |
|
Magnetic Hold Current |
875 A |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Protection Type |
Overload protection |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 4...AWG 4/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Electrical Connection |
Terminal Identifier: AL175JD |
|
Long Time Pick-up Adjustment Range |
0.25...1 x In |
|
Mounting Height |
4.5 in (114.30 mm) |
Information About JGL36175
The JGL36175 circuit breaker, part of the PowerPacT J series, is designed to safeguard electrical systems against overloads and short circuits. It comes with either thermal magnetic or MicroLogic electronic trip protection units. This specific model offers thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. Equipped with dual-break rotating contacts, it minimizes peak current during short circuit faults.
Featuring an integral push-to-trip button in the cover, the JGL36175 circuit breaker allows for manual tripping when necessary. It is available in 2 and 3-pole unit mount as well as I-Line constructions. With lugs on both the line and load sides, it offers versatility in installation.
This PowerPacT J circuit breaker is rated for 175A, 3 poles, with a continuous current rating of 80%. It adheres to UL, CSA, NOM, and IEC standards, ensuring compliance with industry regulations. Additionally, it carries the CE marking, signifying conformity with European Union directives.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
The JGL36175 Circuit Breaker, part of the PowerPacT J series, is designed to safeguard electrical systems from overloads and short circuits. Featuring thermal magnetic protection, this circuit breaker has a breaking capacity of 18kA at 600VAC. Equipped with dual-break rotating contacts, it effectively reduces peak current during short circuit faults.
All PowerPacT J-Frame circuit breakers, including the JGL36175, come with an integral push-to-trip button for manual tripping. They are available in both 2 and 3-pole unit mount configurations. Additionally, this breaker has lugs on both the line and load sides.
Technical Specifications
|
Part # |
JGL36175 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
175 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
[Ue] Rated Operational Voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
|
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Thermal-magnetic |
|
Magnetic Tripping Current |
1750 A |
|
Magnetic Hold Current |
875 A |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Protection Type |
Overload protection |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilisation Category |
Category A |
|
AWG Gauge |
AWG 4...AWG 4/0 aluminium/copper terminal |
|
Local Signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Electrical Connection |
Terminal Identifier: AL175JD |
|
Long Time Pick-up Adjustment Range |
0.25...1 x In |
|
Mounting Height |
4.5 in (114.30 mm) |
Information About JGL36175
The JGL36175 circuit breaker, part of the PowerPacT J series, is designed to safeguard electrical systems against overloads and short circuits. It comes with either thermal magnetic or MicroLogic electronic trip protection units. This specific model offers thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. Equipped with dual-break rotating contacts, it minimizes peak current during short circuit faults.
Featuring an integral push-to-trip button in the cover, the JGL36175 circuit breaker allows for manual tripping when necessary. It is available in 2 and 3-pole unit mount as well as I-Line constructions. With lugs on both the line and load sides, it offers versatility in installation.
This PowerPacT J circuit breaker is rated for 175A, 3 poles, with a continuous current rating of 80%. It adheres to UL, CSA, NOM, and IEC standards, ensuring compliance with industry regulations. Additionally, it carries the CE marking, signifying conformity with European Union directives.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
