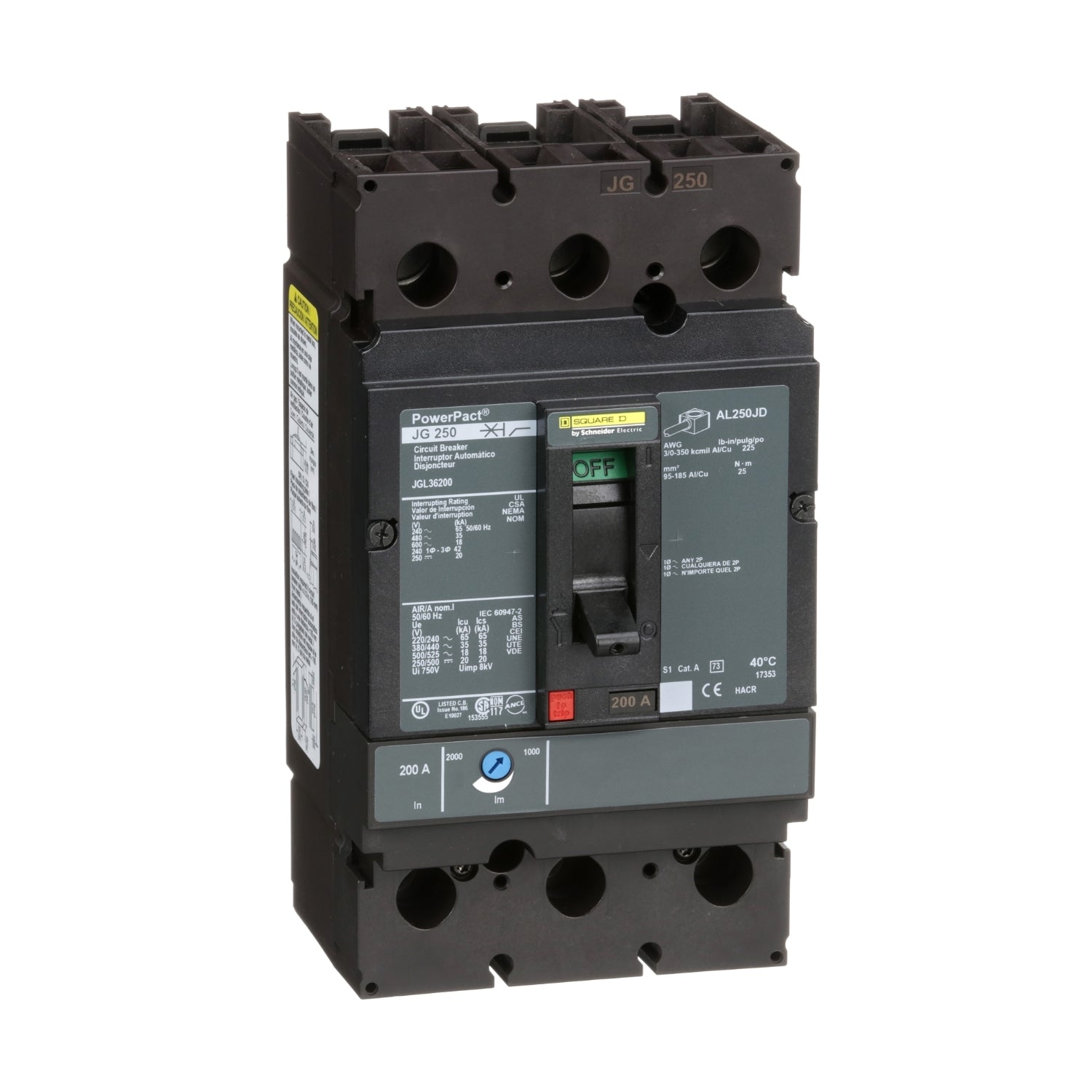

JGL36200 | Schneider Electric Circuit Breaker, PowerPacT J
- Regular price
- $1,427.00
- Sale price
- $1,427.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JGL36200
Description
The JGL36200 by Schneider Electric is a PowerPact J circuit breaker designed for industrial applications. It features a voltage rating of 600V, an amperage rating of 200A, and a three-pole configuration with thermal-magnetic protection. Ideal for protecting electrical circuits in heavy-duty environments.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | JGL36200 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Amperage Rating | 200 A |
| Connection type | Line/Load Lug |
| Dimensions | 86 mm L x 104 mm W x 191 mm H |
| Frame | J |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 18/20, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250VDC |
| Number of Poles | 3 |
| Phase | 3 |
| Temperature Rating (Degrees F) | -13 to 158 deg F |
| Trip Range | 1000 to 2000 A |
| Trip Type | Thermal Magnetic |
| Type | Type JGL Standard |
| Voltage Rating | 600 VAC/250 VDC |
| Wire Size | 3/0 AWG to 350 kcmil |
Information About JGL36200
The Schneider Electric JGL36200 is a robust PowerPact J circuit breaker tailored for industrial applications demanding high reliability. With an amperage rating of 200 A, it features line/load lug connections and dimensions of 86 mm in length, 104 mm in width, and 191 mm in height, ensuring compatibility and ease of installation.
Operating at frequencies of 50/60 Hz, it offers substantial interrupt ratings: 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600 VAC, and 20 kA at 250 VDC, ensuring effective protection against short circuits and overloads. The breaker supports three poles and three-phase configurations, suitable for comprehensive electrical system protection.
It operates within a temperature range of -13 to 158 degrees Fahrenheit (-25 to 70 degrees Celsius), with a thermal-magnetic trip type and a trip range from 1000 to 2000 A. This ensures efficient performance under varying environmental conditions and load scenarios.
The JGL36200 is designed as per Type JGL Standard, offering a voltage rating of 600 VAC and 250 VDC. It accommodates wire sizes from 3/0 AWG to 350 kcmil, providing flexibility in electrical installations and ensuring compatibility with a wide range of conductors.
Overall, the Schneider Electric JGL36200 PowerPact J circuit breaker combines robust construction, high performance, and comprehensive protection features, making it an ideal choice for industrial applications requiring reliable circuit protection and operational safety.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
