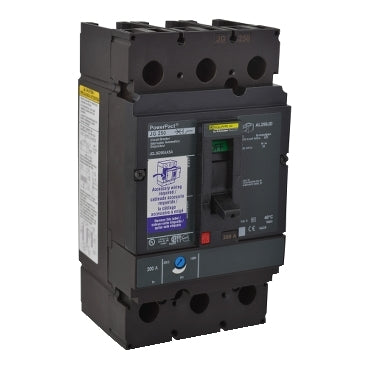

Part #: JGL36200AASA Manufactured by: Schneider Electric
Regular price
$2,829.00
Sale price
$2,829.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Part # JGL36200AASA is a 3-pole circuit breaker from the PowerPacT J series with a line-rated current of 200 A. It feature...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: JGL36200AASA
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: JGL36200AASA

Description / Specifications

Description

Part JGL36200AASA is a PowerPacT J circuit breaker rated for 200A with 3 poles. It operates at 600VAC, offers 18kA interrupting capacity, and features thermal-magnetic protection. Equipped with lugs and calibrated to 80% capacity.



Technical Specifications



Condition

New/Never Used Surplus

Category

Circuit Breaker

Series

PowerPacT J

Line Rated Current

200 A

Number of Poles

3 Pole

Control Type

Toggle

Breaking Capacity Code

G

Rated Operational Voltage [Ue]

600 V AC 50/60 Hz (IEC 60947-3)

Network Frequency

50/60 Hz

Rated Impulse Withstand Voltage [Uimp]

8 kV (IEC 60947-2)

Trip Unit Technology

Thermal-magnetic

Magnetic Tripping Current

2000 A

Magnetic Hold Current

1000 A

Continuous Current Rating

80%

Rated Insulation Voltage [Ui]

750 V (IEC 60947-2)

Protection Type

Overload and short-circuit protection

Accessory Type

Auxiliary switch 24 V AC/DC (1 NO + 1 NC), shunt trip 110-130 V AC

Isolation Suitability

Yes (IEC 60947-2)

Utilization Category

Category A

Terminal Size

AWG 3/0 - 350 kcmil (aluminum/copper)

Local Signaling

OFF position trip indicator (green)

Mounting Mode

Unit mount lug

Mounting Support

Lug

Product Certifications

UL, CSA, NOM

IP Degree of Protection

IP40 (front cover)

Pollution Degree

3 (IEC 60947-1)

Operating Temperature Range

-13 to 158 °F (-25 to 70 °C)

Storage Temperature Range

-58 to 185 °F (-50 to 85 °C)

Operating Altitude

< 6561.68 ft (2000 m) without derating; up to 5000 m with derating





Information About JGL36200AASA



The JGL36200AASA is a robust 3-pole circuit breaker from the PowerPacT J series, designed to deliver reliable overload and short-circuit protection in various industrial and commercial power distribution applications. With a rated operational current of 200 A, this circuit breaker is engineered to handle demanding load requirements, ensuring stable and safe operation. It operates at a rated voltage of 600 V AC, compatible with 50/60 Hz systems, making it versatile across different installations. The breaker meets IEC 60947-3 standards, ensuring compliance with international safety and performance standards.

This model features thermal-magnetic trip unit technology, combining thermal sensing for overload protection with magnetic tripping for short-circuit response. With a magnetic tripping current of 2000 A and a magnetic hold current of 1000 A, it ensures timely interruption in fault conditions, minimizing damage to connected systems. Its continuous current rating is set at 80%, optimizing performance under sustained loads. The device is equipped with a breaking capacity code of G, indicating reliable fault-handling capability.

Engineered for durability and safety, the JGL36200AASA has an impulse withstand voltage of 8 kV, conforming to IEC 60947-2, and a rated insulation voltage of 750 V, adding resilience against voltage surges. The IP40-rated front cover protects internal components from solid objects larger than 1 mm, suitable for controlled indoor environments. With pollution degree 3 (IEC 60947-1), this circuit breaker is suitable for environments with moderate levels of contaminants, enhancing longevity and safety.

The breaker features a convenient toggle control for straightforward operation and includes an OFF position trip indicator (green), providing clear visual status for maintenance personnel. Mounting is made efficient through a unit mount lug, with support for lugs ensuring secure installation and easy replacement if needed. The terminal design supports conductor sizes from AWG 3/0 to 350 kcmil, compatible with both aluminum and copper terminals, providing flexibility in wiring.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

Part JGL36200AASA is a PowerPacT J circuit breaker rated for 200A with 3 poles. It operates at 600VAC, offers 18kA interrupting capacity, and features thermal-magnetic protection. Equipped with lugs and calibrated to 80% capacity.



Technical Specifications



Condition

New/Never Used Surplus

Category

Circuit Breaker

Series

PowerPacT J

Line Rated Current

200 A

Number of Poles

3 Pole

Control Type

Toggle

Breaking Capacity Code

G

Rated Operational Voltage [Ue]

600 V AC 50/60 Hz (IEC 60947-3)

Network Frequency

50/60 Hz

Rated Impulse Withstand Voltage [Uimp]

8 kV (IEC 60947-2)

Trip Unit Technology

Thermal-magnetic

Magnetic Tripping Current

2000 A

Magnetic Hold Current

1000 A

Continuous Current Rating

80%

Rated Insulation Voltage [Ui]

750 V (IEC 60947-2)

Protection Type

Overload and short-circuit protection

Accessory Type

Auxiliary switch 24 V AC/DC (1 NO + 1 NC), shunt trip 110-130 V AC

Isolation Suitability

Yes (IEC 60947-2)

Utilization Category

Category A

Terminal Size

AWG 3/0 - 350 kcmil (aluminum/copper)

Local Signaling

OFF position trip indicator (green)

Mounting Mode

Unit mount lug

Mounting Support

Lug

Product Certifications

UL, CSA, NOM

IP Degree of Protection

IP40 (front cover)

Pollution Degree

3 (IEC 60947-1)

Operating Temperature Range

-13 to 158 °F (-25 to 70 °C)

Storage Temperature Range

-58 to 185 °F (-50 to 85 °C)

Operating Altitude

< 6561.68 ft (2000 m) without derating; up to 5000 m with derating





Information About JGL36200AASA



The JGL36200AASA is a robust 3-pole circuit breaker from the PowerPacT J series, designed to deliver reliable overload and short-circuit protection in various industrial and commercial power distribution applications. With a rated operational current of 200 A, this circuit breaker is engineered to handle demanding load requirements, ensuring stable and safe operation. It operates at a rated voltage of 600 V AC, compatible with 50/60 Hz systems, making it versatile across different installations. The breaker meets IEC 60947-3 standards, ensuring compliance with international safety and performance standards.

This model features thermal-magnetic trip unit technology, combining thermal sensing for overload protection with magnetic tripping for short-circuit response. With a magnetic tripping current of 2000 A and a magnetic hold current of 1000 A, it ensures timely interruption in fault conditions, minimizing damage to connected systems. Its continuous current rating is set at 80%, optimizing performance under sustained loads. The device is equipped with a breaking capacity code of G, indicating reliable fault-handling capability.

Engineered for durability and safety, the JGL36200AASA has an impulse withstand voltage of 8 kV, conforming to IEC 60947-2, and a rated insulation voltage of 750 V, adding resilience against voltage surges. The IP40-rated front cover protects internal components from solid objects larger than 1 mm, suitable for controlled indoor environments. With pollution degree 3 (IEC 60947-1), this circuit breaker is suitable for environments with moderate levels of contaminants, enhancing longevity and safety.

The breaker features a convenient toggle control for straightforward operation and includes an OFF position trip indicator (green), providing clear visual status for maintenance personnel. Mounting is made efficient through a unit mount lug, with support for lugs ensuring secure installation and easy replacement if needed. The terminal design supports conductor sizes from AWG 3/0 to 350 kcmil, compatible with both aluminum and copper terminals, providing flexibility in wiring.
