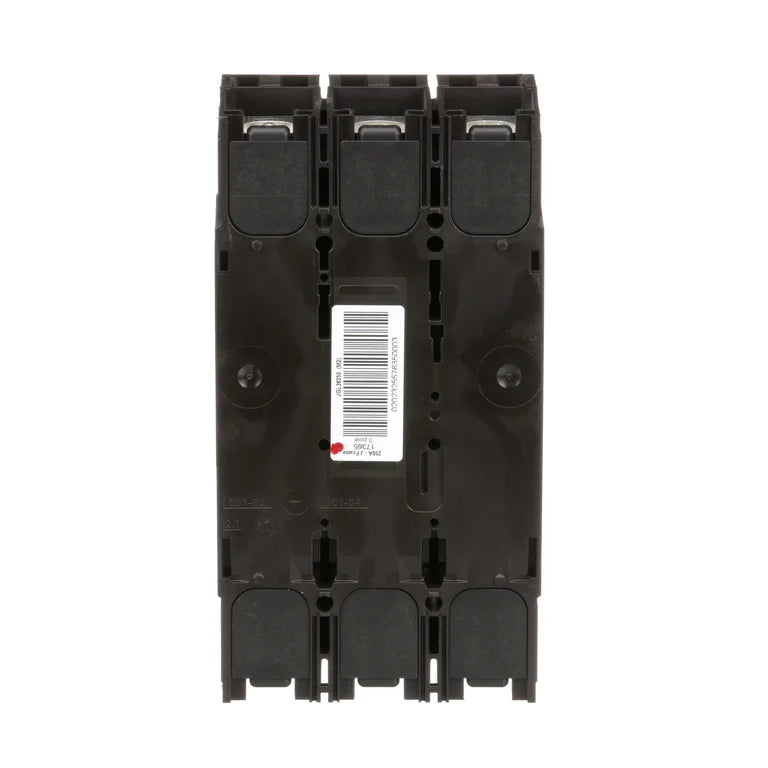

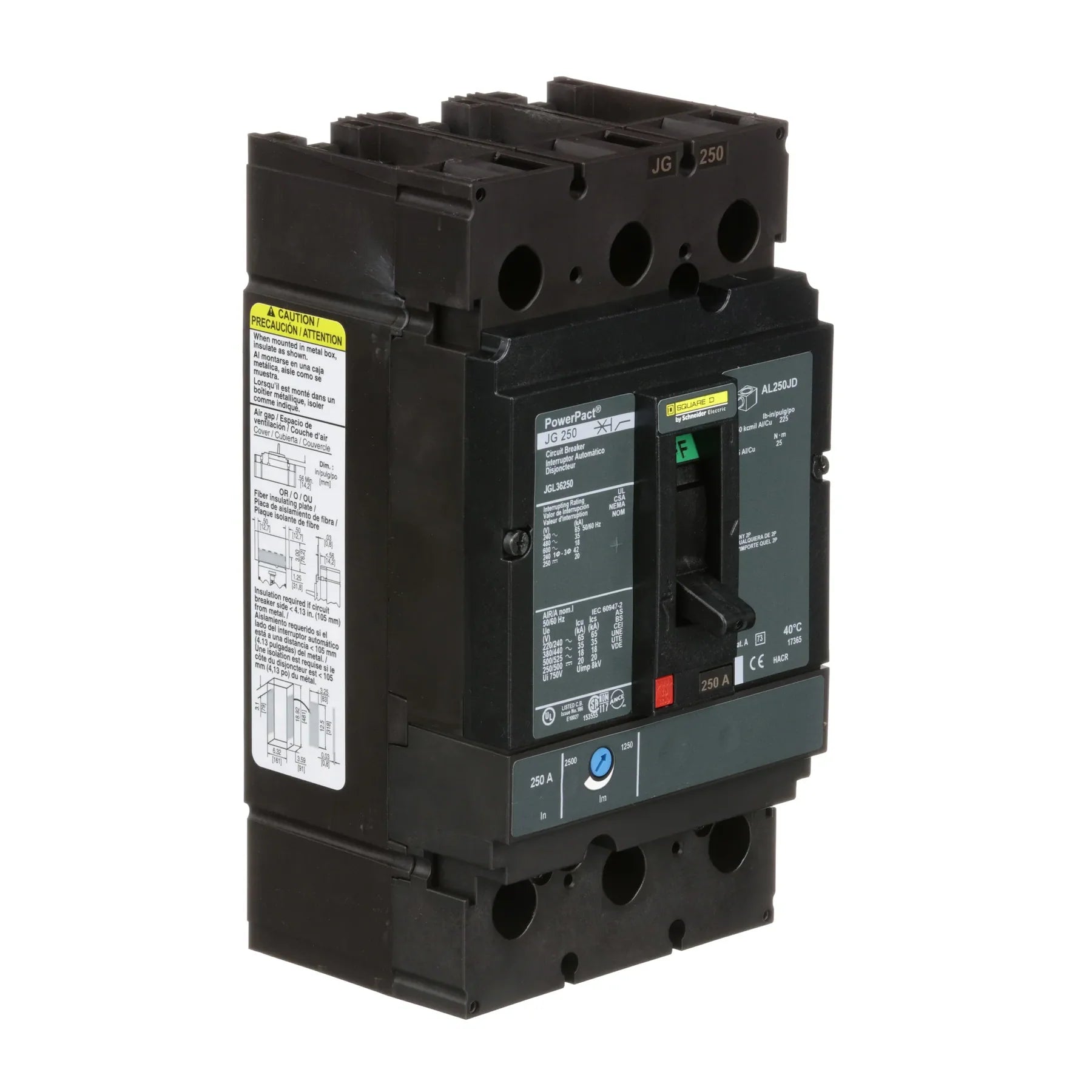

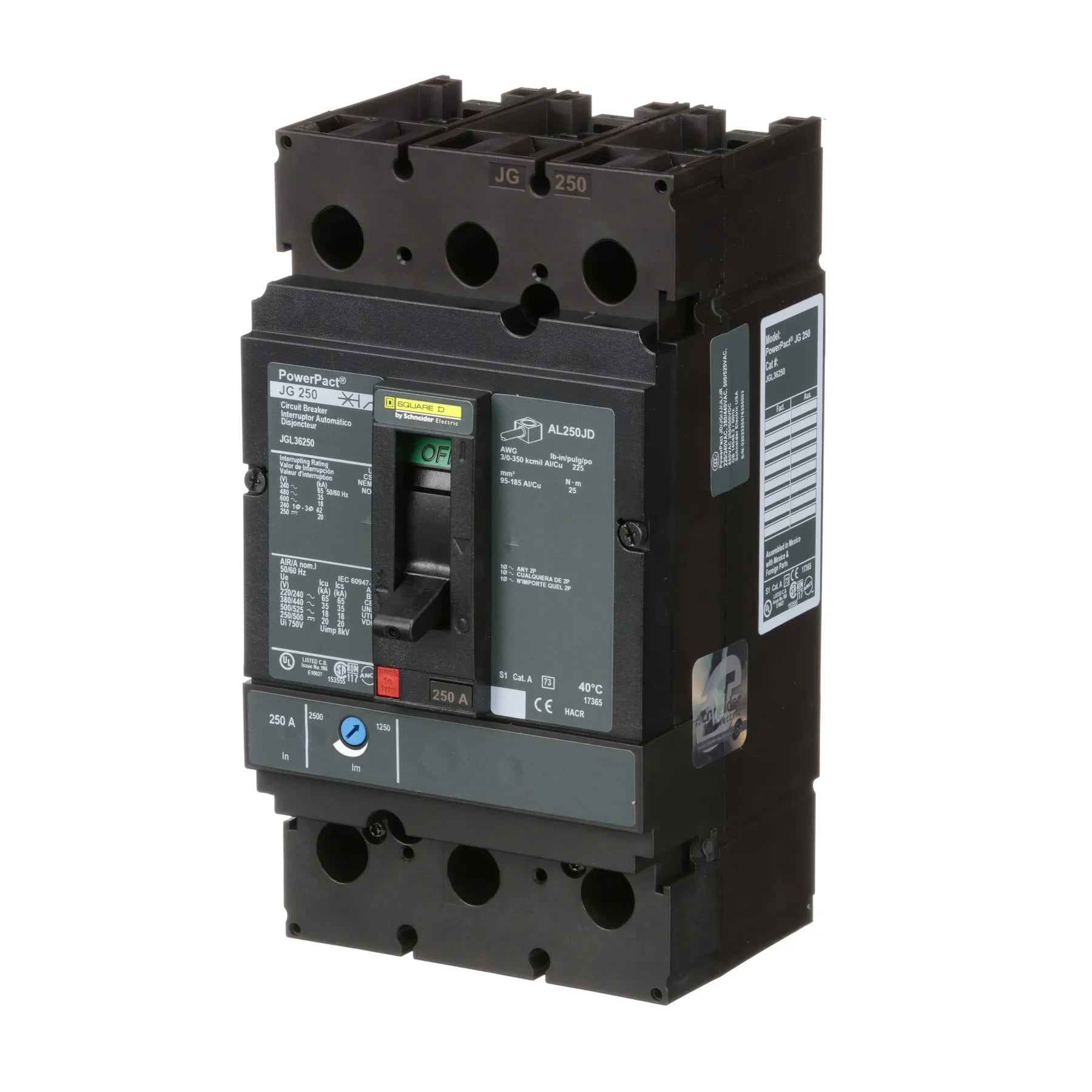

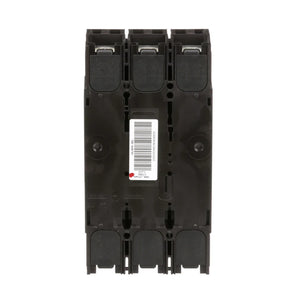

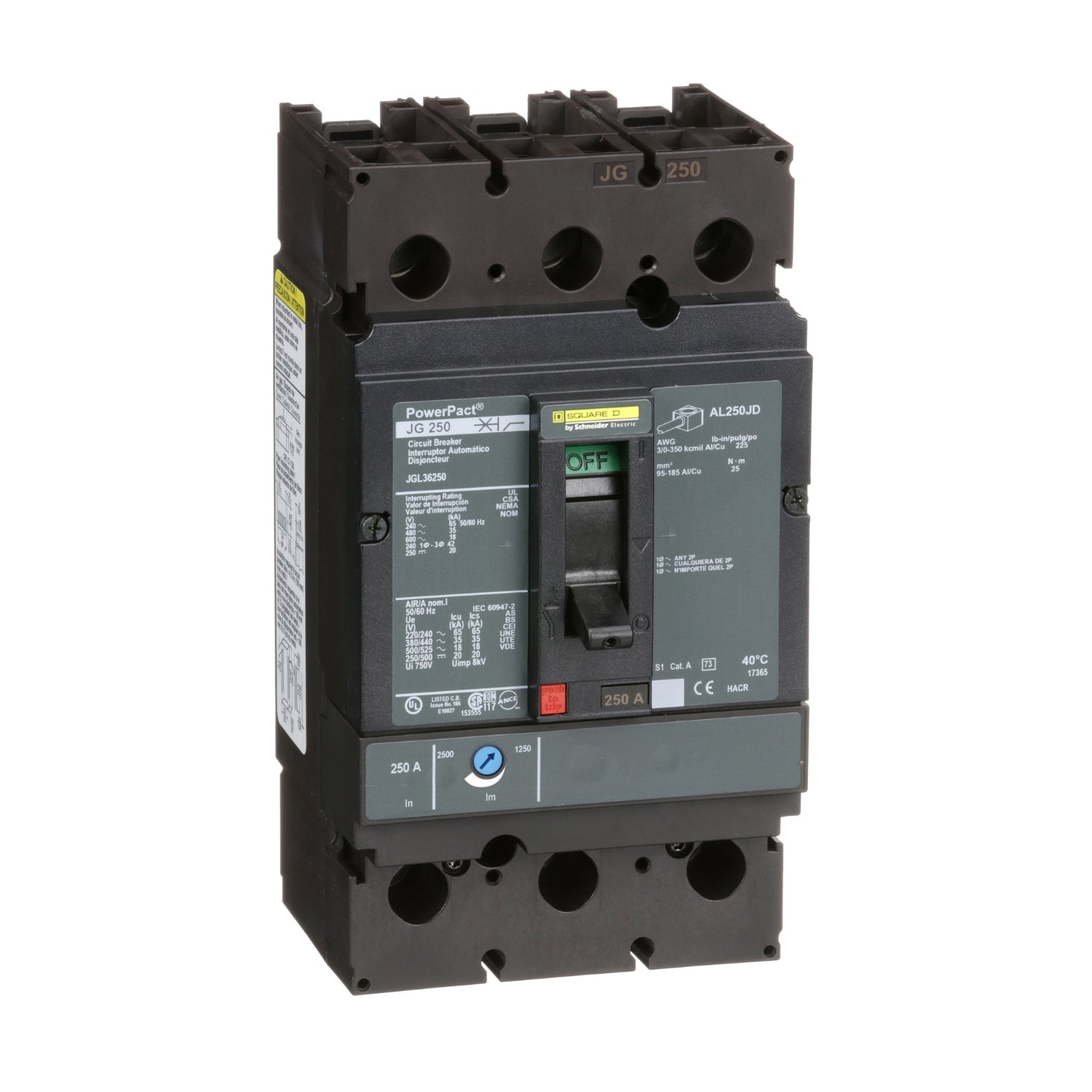

JGL36250 | Schneider Electric Circuit Breaker
- Regular price
- $2,489.00
- Sale price
- $2,489.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JGL36250
Description
The Square D JGL36250 is a three-pole thermal magnetic molded case circuit breaker rated for 250 Amps and designed to operate at voltages ranging from 240VAC to 600VAC at frequencies of 50/60Hz. It offers robust protection with interrupting ratings of 65kAIC at 240VAC, 35kAIC at 277/415/480VAC, 18kAIC at 347/600VAC, and 20kAIC at 250VDC.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | JGL36250 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | JGL |
| Voltage | 600 |
| Amperage | 250 |
| AIC Rating | 35kA@480V |
| Functions | LI - Long-Time and Instantaneous |
| Phase | 3 |
| Connection | Feed-Thru |
| Poles | 3 |
| Frame Type | J Frame |
| Protection | Thermal Magnetic |
Information About JGL36250
The JGL36250 from Schneider Electric belongs to the Powerpact family of circuit breakers and is characterized by its robust design and high-performance capabilities. Designed with a voltage rating of up to 600VAC and an amperage capacity of 250A, this three-pole (3P) breaker is suitable for a wide range of industrial applications.
It features a thermal magnetic protection mechanism, which ensures reliable operation by effectively responding to overcurrents and short circuits. The breaker offers an impressive interrupting capacity (AIC) of 35kA at 480VAC, enhancing safety and protection for electrical systems.
Equipped with LI (Long-Time and Instantaneous) trip functions, the JGL36250 provides comprehensive protection against electrical faults. Its feed-thru connection type facilitates easy installation and integration into electrical panels or systems.
With a sturdy J Frame type construction, this circuit breaker is built for durability and long-term reliability in demanding environments where dependable electrical protection is crucial.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
