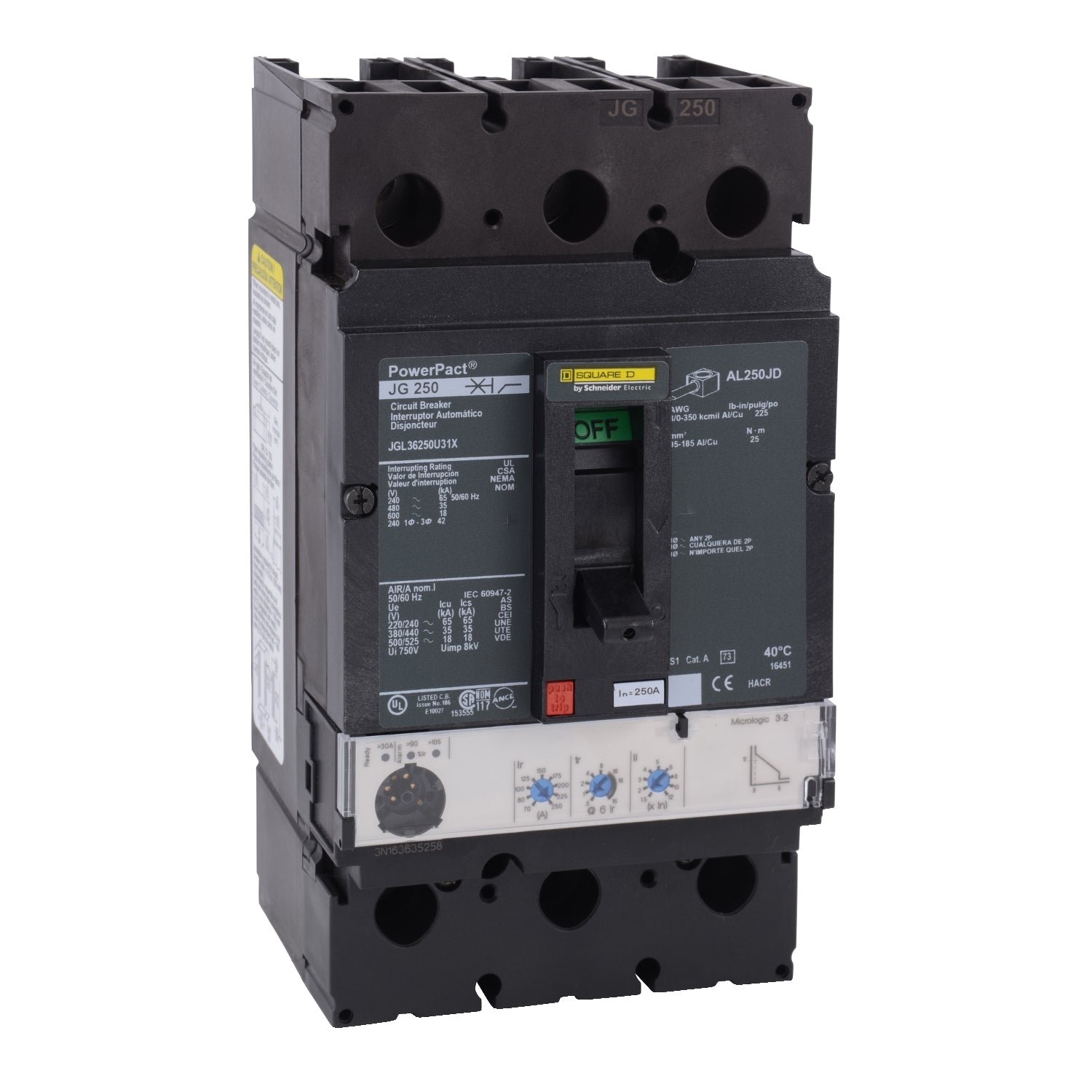

JGL36250U31X | Schneider Electric Circuit Breaker
- Regular price
- $2,497.00
- Sale price
- $2,497.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JGL36250U31X
Description
The JGL36250U31X circuit breaker from the PowerPacT J-Frame series is designed to safeguard electrical systems against overloads and short circuits. It offers versatile protection with options for both thermal magnetic and MicroLogic electronic trip units. This specific model features a MicroLogic Standard trip unit with a 3.2 LI function and provides a breaking capacity of 18kA at 600VAC. Equipped with dual-break rotating contacts, it effectively reduces peak currents during short circuit faults.
Technical Specifications
|
Part Number |
JGL36250U31X |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
250 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
G |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Electronic, standard, MicroLogic 3.2, LI |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Trip unit name |
MicroLogic 3.2 |
|
Protection Type |
Overload protection, Short-circuit protection |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 3/0...350 kcmil aluminium/copper terminals |
|
Terminal identifier |
AL250JD |
|
Long time pick-up adjustment range |
0.25...1 x In |
|
Tightening torque |
221.27 lbf.in (25 N.m) 0.15…0.29 in² (95…185 mm²) |
|
Power wire stripping length |
0.98 in (25 mm) |
|
Height |
7.52 in (191 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
5.29 lb(US) (2.4 kg) |
Information About JGL36250U31X
The JGL36250U31X is a robust Circuit Breaker from the PowerPacT J series, designed specifically to safeguard electrical systems against overloads and short circuits. Offering versatility, PowerPacT J-Frame circuit breakers are equipped with either thermal magnetic or advanced MicroLogic electronic trip protection units. The JGL36250U31X model features the MicroLogic Standard trip unit, incorporating a 3.2 trip unit and LI function, ensuring reliable operation under varying load conditions.
This circuit breaker boasts a substantial breaking capacity of 18kA at 600VAC, capable of interrupting faults swiftly to prevent damage to connected equipment. Built with dual-break rotating contacts, it effectively mitigates peak currents during short circuit faults, enhancing overall system reliability.
The design includes an integral push-to-trip button located conveniently on the cover, allowing manual operation to trip the circuit breaker when necessary. PowerPacT J circuit breakers are adaptable for use in both 2 and 3-pole unit mount configurations as well as I-Line constructions, facilitating flexible installation options across diverse electrical setups.
