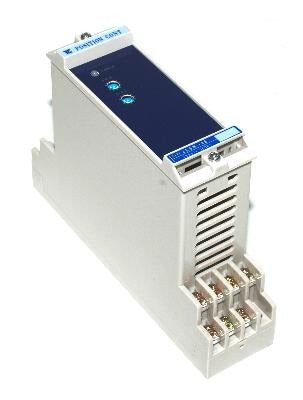

JGSM-06 | Yaskawa Position Controller

Description

The Yaskawa JGSM-06 is a position controller designed for precise motion control in industrial automation systems. It features front panel controls for easy access and a power status LED for monitoring. The controller is part of the JGSM series, which allows for optimal system configuration by combining modules for automatic control systems.

Technical Specifications

Information About JGSM-06

The Yaskawa JGSM-06 is a position controller designed to convert synchro signals from displacement detectors into DC voltage proportional to the rotational angle. It features a signal mixing function to minimize deviation from reference signals, making it suitable for precise position control in industrial automation systems. The controller is equipped with front panel controls for easy access and a power status LED for monitoring. Its compact design allows for seamless integration into various automatic control system configurations. The JGSM-06 is compatible with Modicon 984 PLCs and is manufactured by Yaskawa Electric Co., Ltd. in Japan.

Key Features:

• Signal Conversion: Transforms synchro signals into DC voltage proportional to rotational angles.
• Signal Mixing Function: Reduces deviation from reference signals for accurate position control.
• User-Friendly Interface: Front panel controls and power status LED for straightforward operation.
• Compact Design: Facilitates easy integration into existing control systems.

Applications:

• Industrial Automation: Ensures precise motor and servo motor positioning and speed control.
• Motion Control Systems: Supports functions like point-to-point positioning and trajectory tracking.
• Robotics and Packaging Machinery: Enhances control in automated equipment requiring accurate motion regulation.
