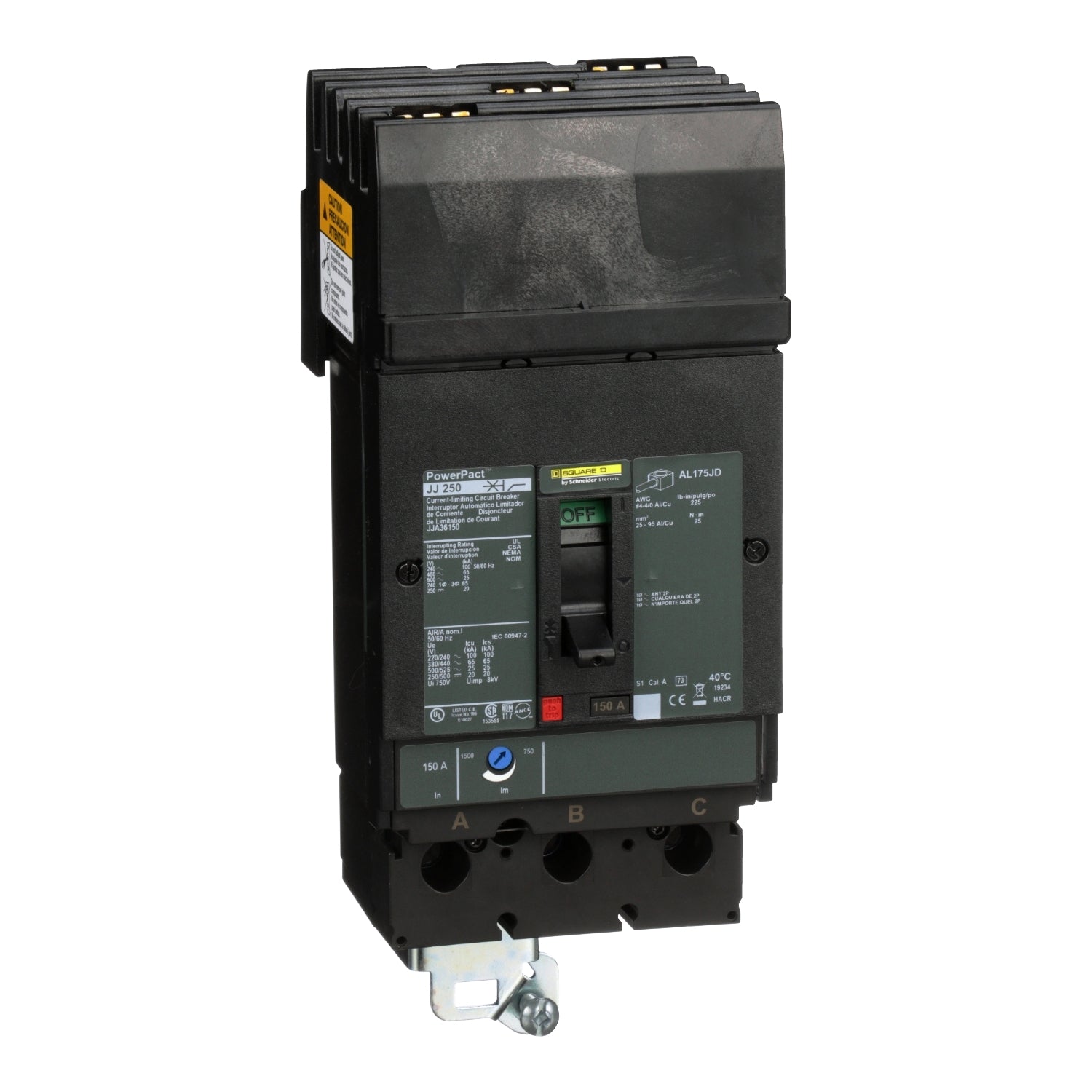

JJA36150 | Schneider Electric Circuit Breaker
- Regular price
- $1,822.00
- Sale price
- $1,822.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JJA36150
Description
JJA36150, Square D, Powerpact, type JJA, 3P, ABC phase connection, 3PH, 150A, 600V, 65kA@480V, UL listed, current limiting, I-Line Style Plug-In, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions, Thermal Magnetic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | JJA36150 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | JJA |
| Voltage | 600 |
| Amperage | 150 |
| Connection | I-Line Style Plug-In |
| Phase | 3 |
| Protection | Thermal Magnetic |
| AIC Rating | 65kA@480V |
| Poles | 3 |
| Frame Type | J Frame |
| Functions | LI - Long-Time and Instantaneous |
Information About JJA36150
The JJA36150 by Schneider Electric is a robust and high-performance circuit breaker from the Powerpact family, designed for reliable protection in demanding industrial and commercial electrical systems. This JJA-type circuit breaker operates at a voltage of 600V and has an amperage rating of 150A, making it suitable for high-capacity circuits.
Featuring a 3-pole configuration, the JJA36150 supports three-phase electrical systems, ensuring balanced power distribution and effective protection for complex electrical loads. Its I-Line style plug-in connection design allows for easy and secure installation, facilitating quick integration into I-Line panelboards and distribution systems.
Equipped with thermal magnetic protection, the JJA36150 offers comprehensive circuit safeguarding by combining thermal overload protection with magnetic short-circuit protection. This ensures dependable operation and immediate response to electrical faults, preventing potential damage to wiring and connected devices.
The circuit breaker incorporates Long-Time and Instantaneous (LI) functions, providing advanced protection features. The Long-Time function addresses sustained overcurrent conditions to prevent overloads, while the Instantaneous function responds quickly to short-circuit events, ensuring immediate circuit interruption to mitigate damage.
With an Ampere Interrupting Capacity (AIC) of 65kA at 480V, the JJA36150 is capable of handling significant fault currents, providing robust protection for critical electrical systems.
The J Frame type construction of the JJA36150 ensures durability and high performance, making it suitable for rigorous industrial environments.
Overall, the Schneider Electric JJA36150 circuit breaker delivers reliable performance, secure installation, and advanced protection features, making it an essential component for ensuring the safety and reliability of electrical systems in industrial and commercial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
