JJA36200 | Square D PowerPacT J-Frame 200A 3-Pole 600V I-Line Thermal-Magnetic Circuit Breaker
- Regular price
- $1,422.00
- Sale price
- $1,422.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JJA36200
Description

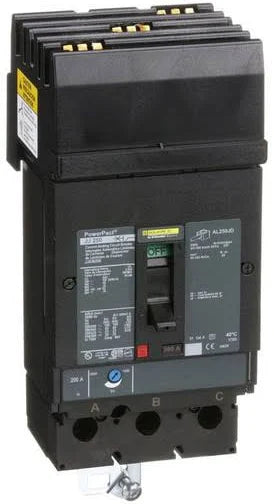

The Square D JJA36200 is a 200-amp, 3-pole molded case circuit breaker designed for 600 VAC systems requiring dependable thermal-magnetic protection. With an I-Line plug-in connection and a 25 kA interrupting capacity, it supports secure installation in commercial and industrial distribution equipment. As part of the PowerPacT J-Frame family, it provides adjustable Long-Time and Instantaneous protection for effective overcurrent management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | JJA36200 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Type | JJA |
| Frame Type | J-Frame |
| Amperage Rating | 200 A |
| Voltage Rating | 600 VAC |
| Poles | 3 |
| Phase | 3-Phase |
| Trip Unit | Thermal Magnetic (TMD), Adjustable |
| Functions | LI – Long-Time and Instantaneous |
| Interrupt Rating | 25 kA @ 600 VAC (UL489); 65 kA @ 480 VAC |
| Connection Type | I-Line Style Plug-In (Line Side) |
| Load Side Termination | Mechanical Lugs |
| Continuous Current Rating | 80% |
| Network Frequency | 50/60 Hz |
| Protection Type | Overload and Short-Circuit |
| Operating Temperature Range | 28 to 158 °F (-2 to 70 °C) |
| Storage Temperature Range | -58 to 185 °F (-50 to 85 °C) |
| Compliance | UL, CSA, NOM, IEC, CE Marked |
| Application | Commercial and industrial power distribution |
Information About JJA36200
The JJA36200 belongs to the Square D PowerPacT J-Frame series, engineered for reliable protection from overloads and short circuits in low-voltage electrical systems. It uses a thermal-magnetic trip unit with adjustable settings, allowing tailored Long-Time and Instantaneous (LI) response for coordinated system protection. The breaker incorporates dual-break rotating contacts that reduce peak current during fault conditions, supporting enhanced system safety. Designed with an I-Line plug-in line-side connection and mechanical lugs on the load side, it integrates easily into I-Line panelboards and maintains compliance with UL, CSA, NOM, and IEC standards.
Key Features
- 200A molded case protection: Supports medium-capacity distribution circuits.
- 3-pole configuration: Designed for three-phase power systems.
- Thermal-magnetic adjustable trip: Provides Long-Time and Instantaneous (LI) protection.
- PowerPacT J-Frame construction: Ensures robust performance and enhanced durability.
- I-Line plug-in design: Enables fast, secure installation into I-Line panelboards.
- 25 kA interrupting capability: Rated at 600 VAC per UL489.
- Dual-break rotating contacts: Reduce peak let-through current during short circuits.
- 80% continuous current rating: Supports standard load requirements in industrial applications.
The JJA36200 delivers the reliability and precision required for PowerPacT J-Frame electrical distribution systems.
