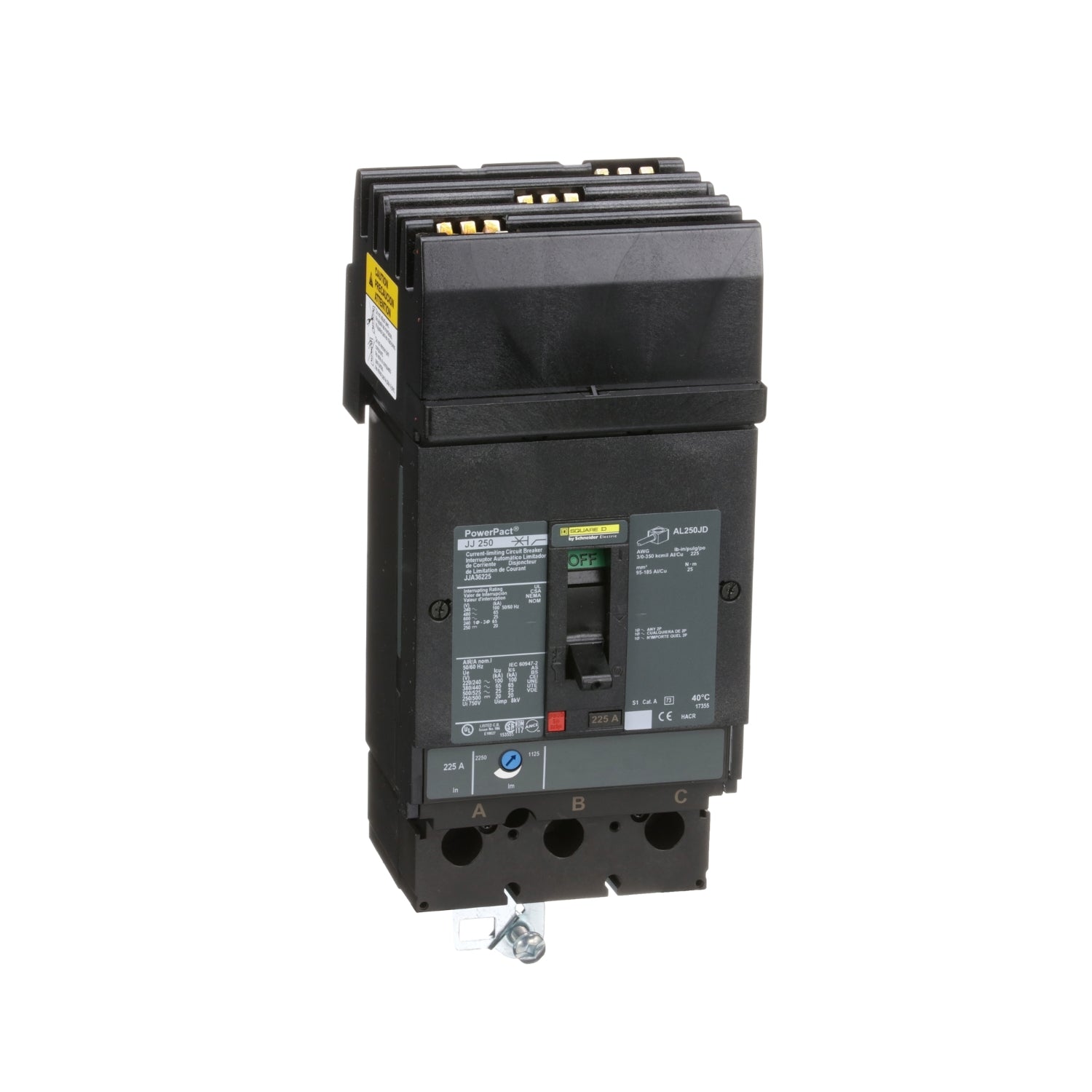

JJA36225 | Schneider Electric Square D PowerPacT J-Frame Circuit Breaker 225A 3-Pole 600V
- Regular price
- $1,515.00
- Sale price
- $1,515.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: JJA36225
Description
The Schneider Electric JJA36225 is a PowerPacT J-Frame molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This 3-pole circuit breaker is rated at 225A and operates at 600 VAC with thermal-magnetic trip protection. It features I-Line terminations on the line side and mechanical lugs on the load side for efficient installation and reliable connectivity.
Technical Specifications
| Condition | New / Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | JJA36225 |
| Subcategory | Molded Case Circuit Breaker |
| Series / Family | PowerPacT J |
| Circuit Breaker Type | JJA |
| Number of Poles | 3 |
| Amperage Rating | 225 A |
| Voltage Rating | 600 VAC |
| Phase | 3 |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Protection Type | Thermal Magnetic |
| Continuous Current Rating | 80% |
| Interrupt Rating | 25 kA at 600 VAC |
| AIC Rating | 65 kA at 480 VAC |
| Mounting / Connection | I-Line Style Plug-In (Line Side) |
| Load Side Connection | Mechanical Lugs |
Information About JJA36225
The JJA36225 is part of the Schneider Electric Square D PowerPacT J series, a line of circuit breakers engineered for dependable protection in commercial and industrial power distribution systems. This model utilizes a fixed thermal-magnetic trip unit to provide consistent response to both overload and short-circuit conditions. As an I-Line construction breaker, it allows quick installation and removal in compatible panelboards, reducing maintenance time. Dual-break rotating contacts are incorporated into the design to limit peak fault current and enhance overall system safety.
Key Features
- PowerPacT J-Frame design: Built for robust overcurrent protection in demanding electrical systems.
- Thermal-magnetic trip unit: Provides reliable long-time and instantaneous protection.
- Dual-break rotating contacts: Reduces peak current during short-circuit events.
- I-Line line-side terminations: Enable fast, secure installation in I-Line panelboards.
- Mechanical load-side lugs: Ensure stable and dependable conductor connections.
- Integral push-to-trip button: Allows manual tripping for testing and maintenance.
The JJA36225 delivers the reliability and precision required for protecting three-phase 600V distribution circuits in commercial and industrial applications.
