JJA36250 | Schneider Electric Circuit Breaker
- Regular price
- $1,855.00
- Sale price
- $1,855.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: JJA36250
Description

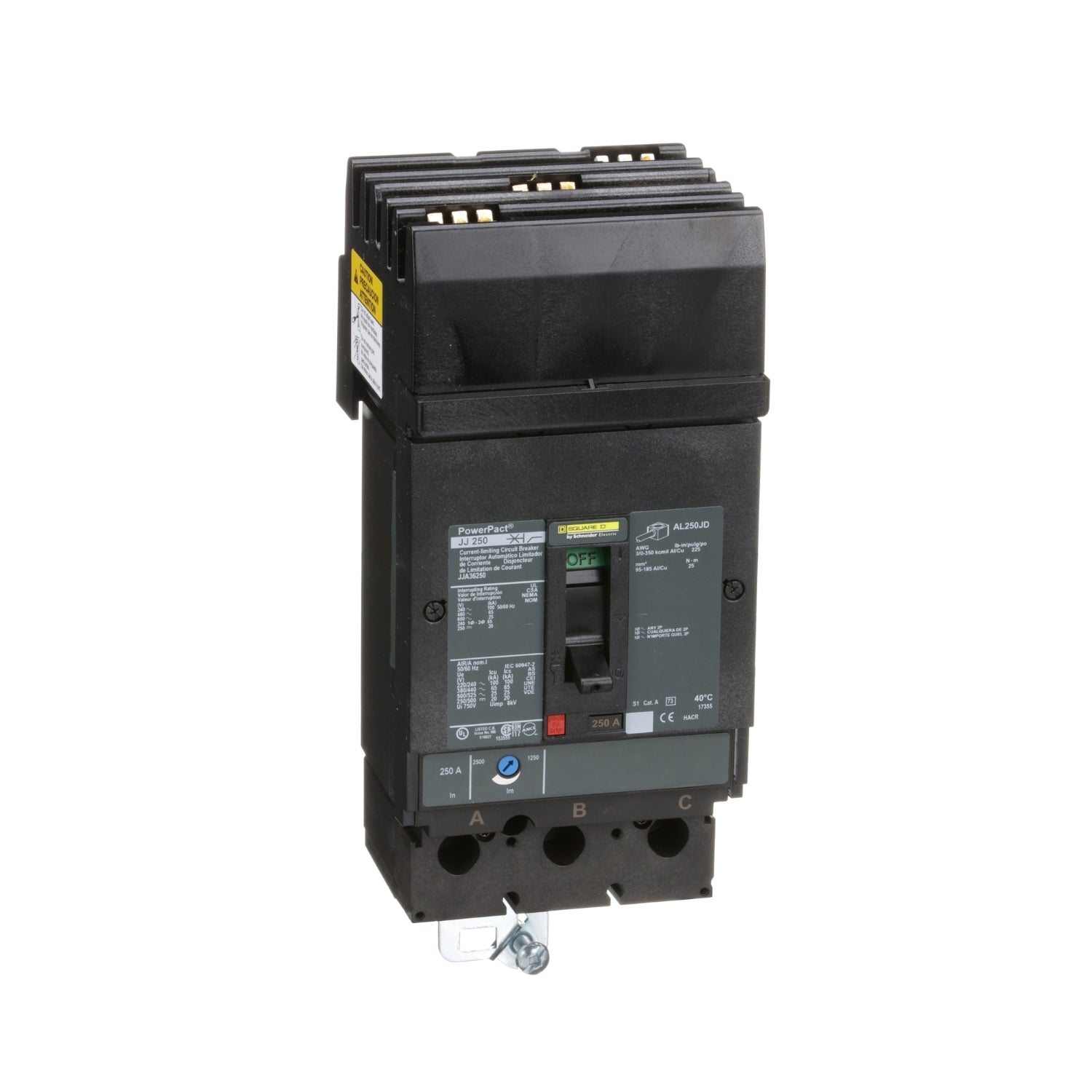

The JJA36250 is a Circuit Breaker belonging to the PowerPacT J series, designed to safeguard electrical systems against overloads and short circuits. Equipped with thermal magnetic trip protection, this breaker offers a breaking capacity of 25kA at 600VAC, ensuring efficient circuit protection.
Featuring dual-break rotating contacts, the JJA36250 mitigates peak current levels during short circuit faults, enhancing system safety. With an integral push-to-trip button, manual tripping of the circuit breaker is facilitated for added convenience.
Available in both 2 and 3-pole unit mount and I-Line constructions, this breaker provides flexibility in installation. Specifically, the I-Line configuration allows for easy installation and removal in I-Line applications.
With I-Line terminations on the line side and mechanical lugs on the load side, the JJA36250 offers ease of connectivity. Boasting a current rating of 250A and 3 poles, it ensures reliable operation in various electrical systems.
Technical Specifications
|
Part Number |
JJA36250 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
250 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking capacity code |
J |
|
[Ue] rated operational voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV IEC 60947-2 |
|
Trip unit technology |
Thermal-magnetic |
|
Magnetic tripping current |
2500 A |
|
Magnetic hold current |
1250 A |
|
Continuous current rating |
80 % |
|
[Ui] rated insulation voltage |
750 V IEC 60947-2 |
|
Suitability for isolation |
Yes IEC 60947-2 |
|
Utilisation category |
Category A |
|
AWG gauge |
AWG 3/0...350 kcmil aluminium/copper terminals |
|
Local signalling |
Switched off (OFF) 1 trip indicator green) |
|
Mounting mode |
I-Line bracket) |
|
Mounting Support |
Bracket |
|
Terminal identifier |
AL250JD |
|
Long time pick-up adjustment range |
0.25...1 x In |
|
Mounting Height |
4.5 in (114.30 mm) |
|
Tightening torque |
221.27 lbf.in (25 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil) |
|
Power wire stripping length |
0.98 in (25 mm) |
|
Height |
7.52 in (191 mm) |
|
Width |
4.09 in (104 mm) |
|
Depth |
3.39 in (86 mm) |
|
Net Weight |
5.29 lb(US) (2.4 kg) |
|
Phase connection |
ABC |
Information About JJA36250
The JJA36250 is a Circuit Breaker from the PowerPacT J series, designed to safeguard electrical systems against overloads and short circuits. It offers thermal magnetic circuit protection with a substantial breaking capacity of 25kA at 600VAC. Equipped with dual-break rotating contacts, this breaker efficiently reduces peak current during short circuit faults. It features an integral push-to-trip button in the cover for manual tripping.
Available in both thermal magnetic and MicroLogic electronic trip protection units, PowerPacT J-Frame circuit breakers offer versatility and reliability. The J series is available in 2 and 3-pole unit mount configurations, as well as I-Line constructions, facilitating easy installation and removal in I-Line applications.
This specific unit, the JJA36250, is a 3-pole breaker with a current rating of 250A. It operates at 600VAC and maintains a continuous current rating of 80% with an ABC phase connection. Featuring I-Line terminations on the line side and mechanical lugs on the load side, it offers robust connectivity options.
Manufacturer Information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
